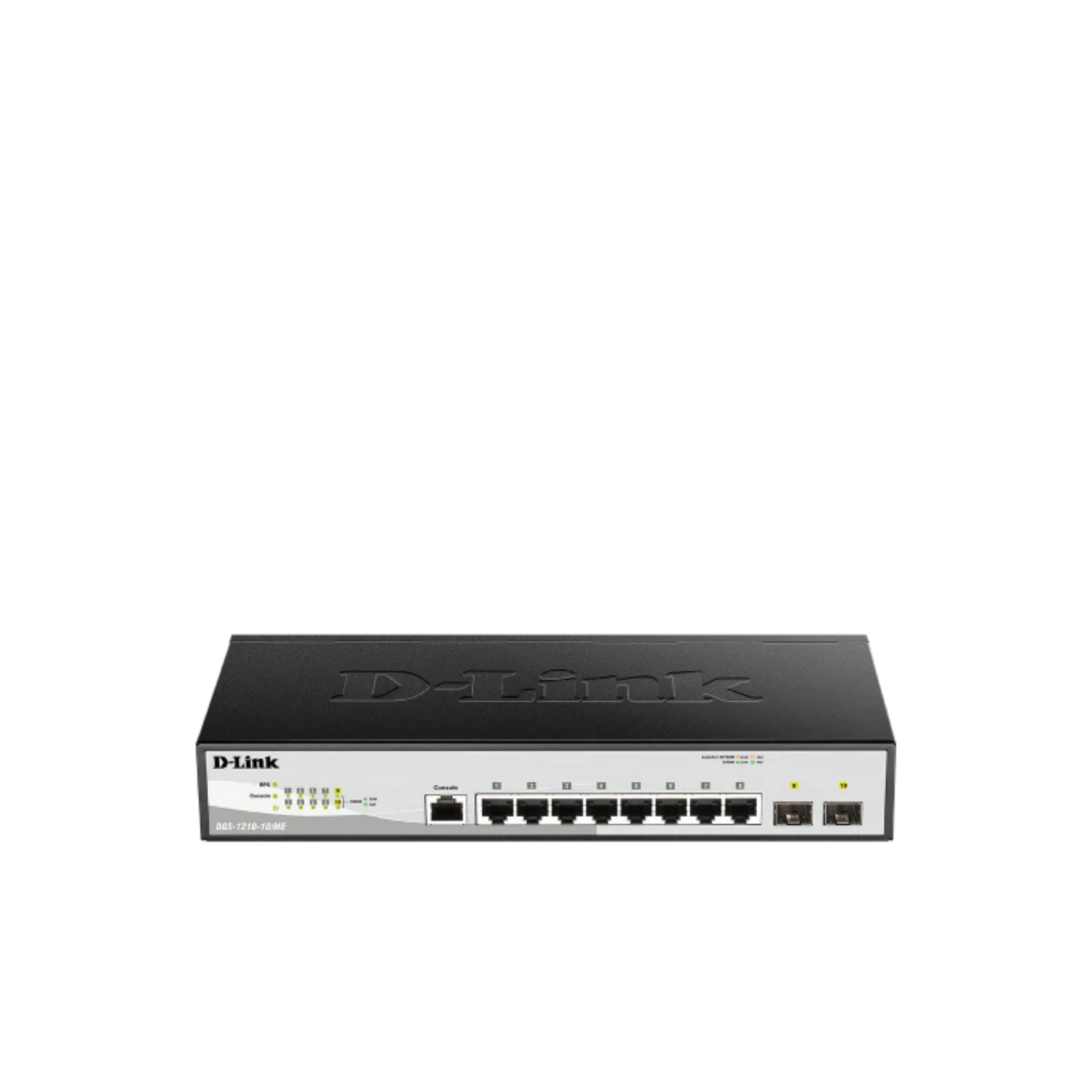

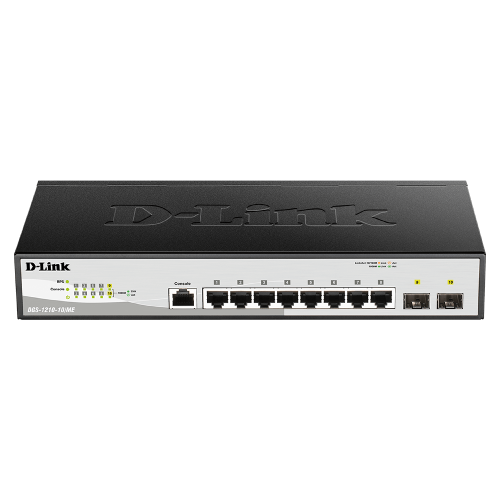

10-Port Gigabit Metro Ethernet Switch
10-Port Gigabit Metro Ethernet Switch
10-Port Gigabit Metro Ethernet Switch

10-Port Gigabit Metro Ethernet Switch

SKU

•  8 x 10/100/1000BASE-T ports
•  2 x SFP ports
•  Comprehensive Layer-2 features including Link Aggregation, Port-based Q-in-Q, and VLAN trunking
•  Enhanced network security with IP-MAC Port-Binding (IMPB), Access •  Control List (ACL), and IEEE 802.1X
•  Embedded 6kV surge protection, sub-50ms recovery ERPS, and Dying •  Gasp provide optimal reliability

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

Ideal for Metro Ethernet

The DGS-1210ME Series Metro Ethernet Switches feature a variety of port configurations, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer-2 functions, and a suite of security and management tools make the DGS-1210ME Series Metro Ethernet Switches ideal for Metro Ethernet applications.

Ideal for Metro Ethernet

Efficient and Resilient

For mission-critical environments, the DGS-1210ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The switches also support IEEE 802.3ad Link Aggregation, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to eight queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.


Security & Authentication

The DGS-1210ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to further enhance user access control. The built-in D-Link Safeguard Engine™ protects the CPU from broadcast, multicast, and unicast flooding. In addition, the Access Control List (ACL) feature enhances network security and switch performance.

Efficient and Resilient

Multicast Applications

The DGS-1210ME Series features a full set of L2 multicast functions, including IGMP Snooping, IGMP Filtering, Fast Leave, and Multicast Traffic Configuration for specific ports. With L2 multicast support, the DGS-1210ME Series is ready and capable of handling growing IPTV applications.


Management Capabilities

A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the device’s capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port also supports cable diagnostics to troubleshoot cable length and functionality problems remotely.


Traffic & Bandwidth Control

Integrated Bandwidth Control allows network administrators to define the throughput levels for ingress and egress bandwidth. It provides a minimum granularity of 64kbps for ingress port and flow-based bandwidth control, and a minimum granularity of 64kbps for egress queue bandwidth. The DGS-1210ME Series also supports Traffic Control, which optimizes overall performance, while Port Mirroring helps administrators perform traffic diagnostics and track network performance.

Multicast Applications

Downloads Datasheets M2M Solution Guide

Tech Specifications

Hardware
Interfaces
  • 8 x 1000Base-T ports
  • 2 x 1000M SFP
  • Auto MDI/MDIX
  • 2 x SFP ports
  • 4 x Max IP Interface
  • 8 x 10/100/1000 BASE-T ports
Console Port
General
Switching Capacity
  • 20 Gbps
Maximum Forwarding Rate
  • 14.88 Mpps
CPU Speed
  • 400MHz
DRAM Size
  • 256MB
Flash Memory Size
  • 32 MB
Jumbo Frame
  • 9,216 Bytes
Maximum Heat Dissipation
  • 46.35 BTU/hr
Acoustic
  • 0 dB
MTBF
  • 412,956 hours
Standby Power Consumption
  • 9.3 W/100V
  • 9.44 W/240V
Store & Forwarding Forwading
  • Yes
Max Power Consumption
  • 13.38 W/100 V
  • 13.59 W/240 V
Physical
Dimensions
  • 280 x 126 x 44 mm
Temperature
  • Operating: -5 to 50° C (23 to 122° F)
  • Storage: -20 - 70 ˚C
Humidity
  • Operating: 0% - 95% RH
  • Storage: 0% - 95% RH
Operating Altitude
  • 1500 m
Packet Buffer Size
  • 1.5Mbits
FAN
  • Fanless
Weight
  • 1.05 kg
Aggregation
  • 8 x Link Aggregation Group Per Device
  • 8 x Max Port Per Link Aggregation Group
  • 802.1AX Link
  • 802.3ad Link
