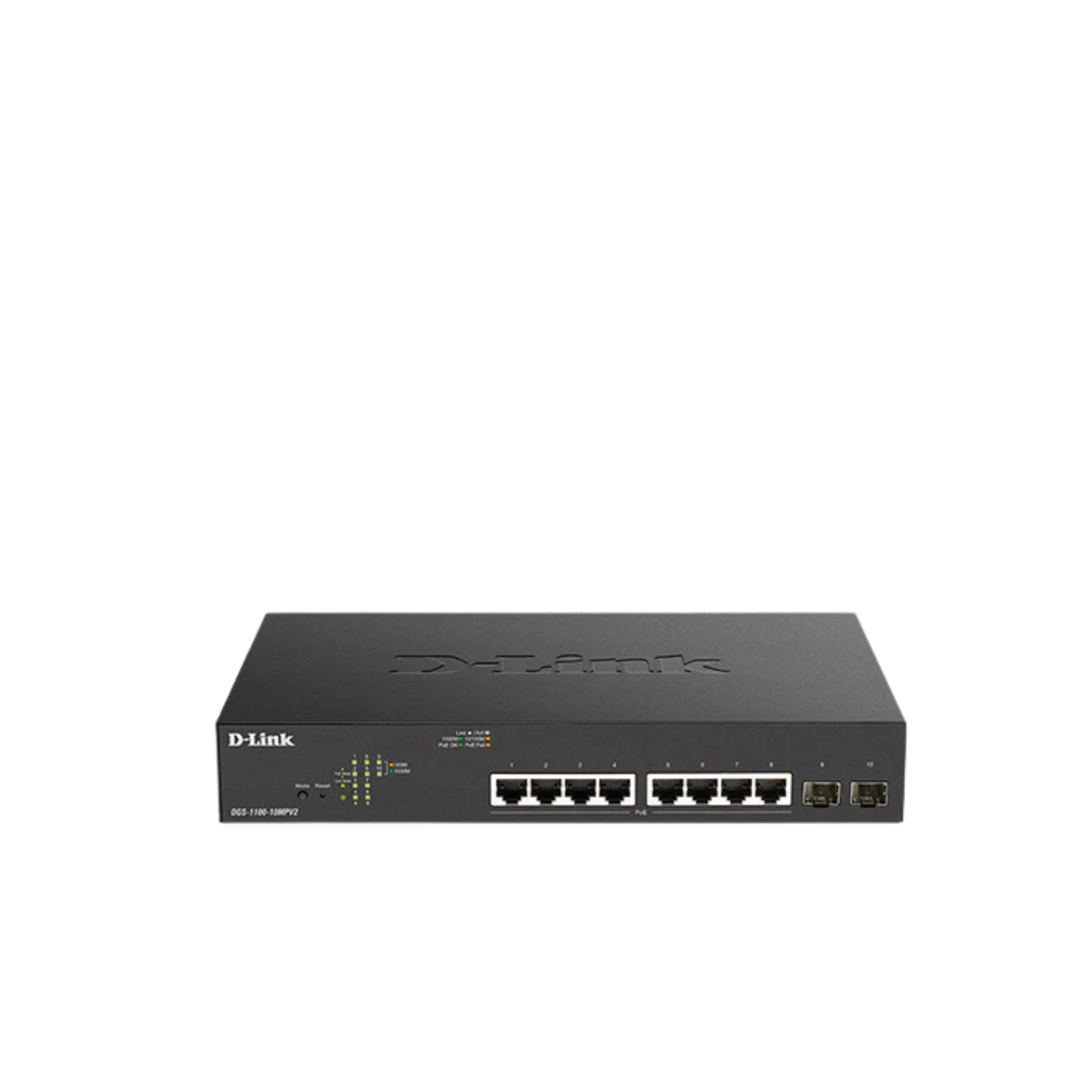

10-port Gigabit Smart Managed PoE (130W) Switch with 2-port Gigabit Uplinks

DGS-1100-10MPV2

Product variants

• 8 x 10/100/1000BASE-T PoE ports
• 2 x SFP ports
• Supports IEEE 802.3at PoE
• 130W PoE Power Budget
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management

Share:

Share

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

Simple. Easy. Smart.

Web UI

Easy to use web interface to access management features

Power over Ethernet

Convenient installation of PoE devices in remote areas

QoS

Prioritization data traffic ensures smooth transmission

Advanced Security Features

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Simplify Network Management

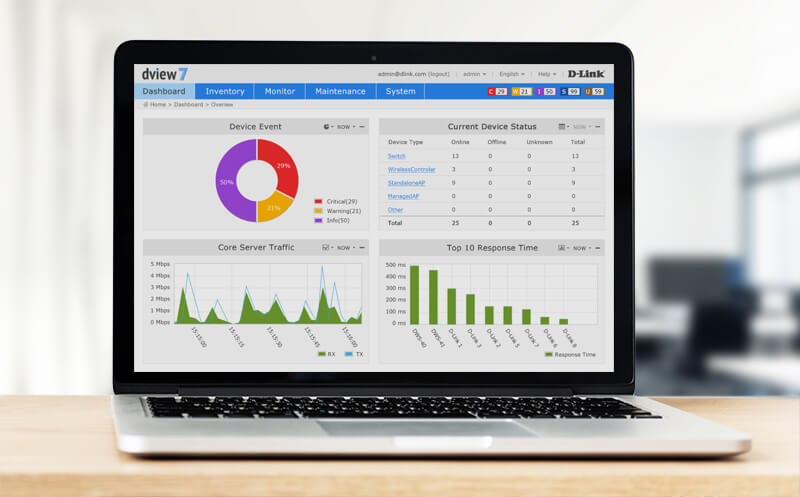

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Learn More About D-View

Simplify Network Management

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors

Powered by PoE

The DGS-1100-10MPV2 supports IEEE 802.3af/at Power over Ethernet on all eight copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones, IP cameras, Wi-Fi access points and industrial IoT in remote locations with no immediate access to a power outlet. Each individual port has capacity to support up to 30W of PoE power, while the switch has an overall budget of 130W.

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

Downloads Datasheets M2M Solution Guide

Tech Specifications

Hardware

Auto MDI/MDIX

Yes

10/100/1000BASE-T PoE ports (802.3af/at)

8

802.3bt 90W Support

No

10/100/1000BASE-T ports (Including PoE ports)

8

Gigabit SFP ports

2

Port-based Bandwidth Control

Yes

Class of Service (CoS)

Yes

802.3x Flow Control

Yes

Store-and-Forwarding

Yes

Comply with RoHS

Yes

Energy Efficiency Ethernet (EEE)

Yes

FAN

Smart Fan

Jumbo Frame

10,000 bytes

Loopback Detection (LBD)

Yes

IGMP Snooping

Yes

802.1AX Link Aggregation

Yes

802.3ad Link Aggregation

Yes

SNMP

Yes

Web-based GUI

Yes

D-Link Discover Protocol (DDP)

Yes

D-Link Network Assistant

Yes

Port Mirroring

Yes

Cable Diagnostics

N/A

Switch Capacity

20 Gbps

Max. Packet Forwarding Rate

14.88 Mpps

Maximum Power Consumption (PoE On)

165W

Maximum PoE Budget

130W (30W max. per PoE port)

Rate Limiting

Yes

Power Input

AC: 100-240V

Queue Handling

Yes

Strict Priority Queue (SPQ)

Yes

Weighted Round Robin (WRR)

Yes

SSL

Yes

Broadcast/Multicast/Unicast Storm Control

Yes

Traffic Segmentation

Yes

D-Link Safeguard Engine

Yes

DoS Attack Prevention

Yes

802.1D Spanning Tree (STP)

Yes

802.1w Rapid Spanning Tree (RSTP)

Yes

General

EMI Certification

FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI

Safety Certification

cUL, UL, LVD, CB, BSMI

Physical

Dimension

280 x 180 x 44mm

Weight

1.5 kg

Operation Temperature

-5-50°C

802.1Q VLAN

Yes

Port-based VLAN

Yes

Voice VLAN

Yes

Auto Surveillance VLAN

Yes

Asymmetric VLAN

Yes
