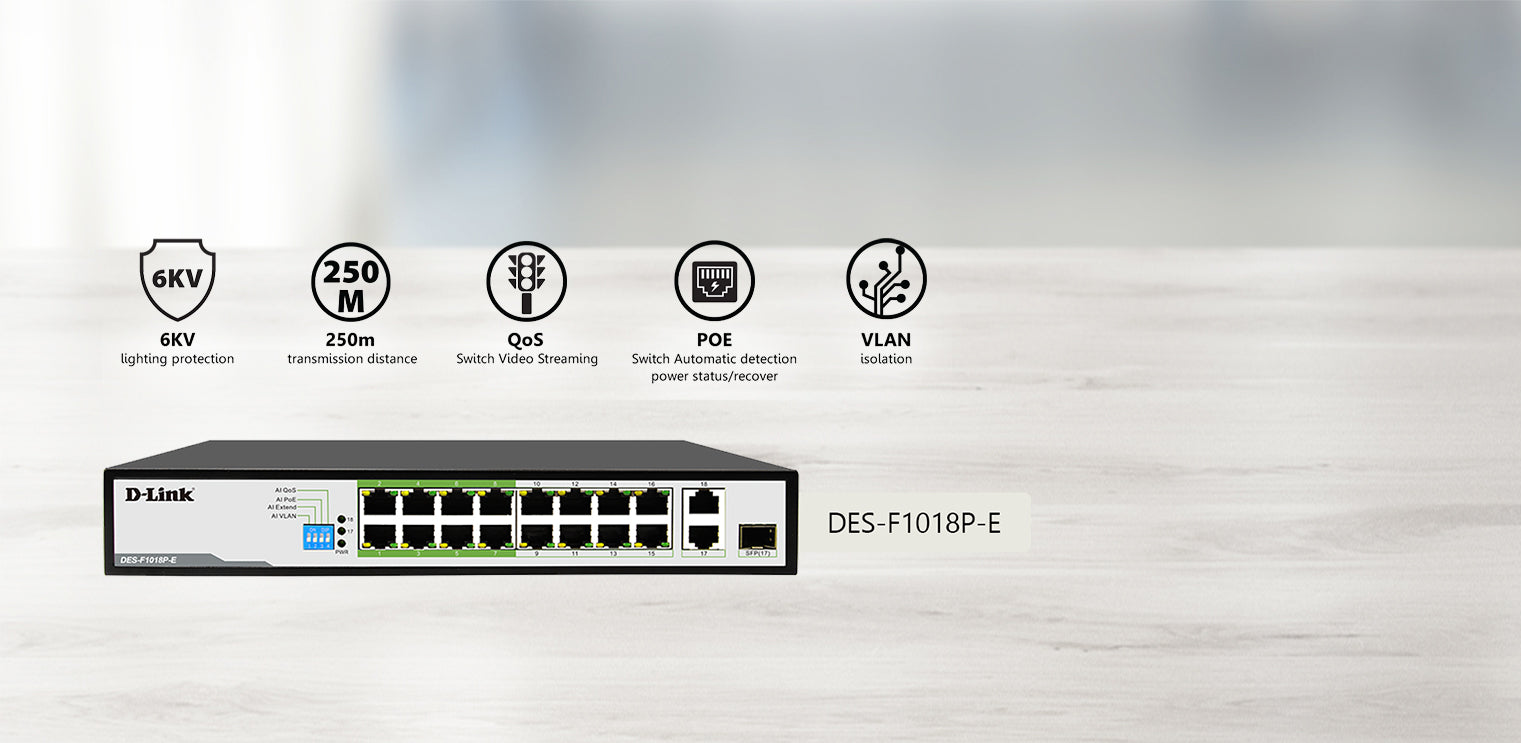

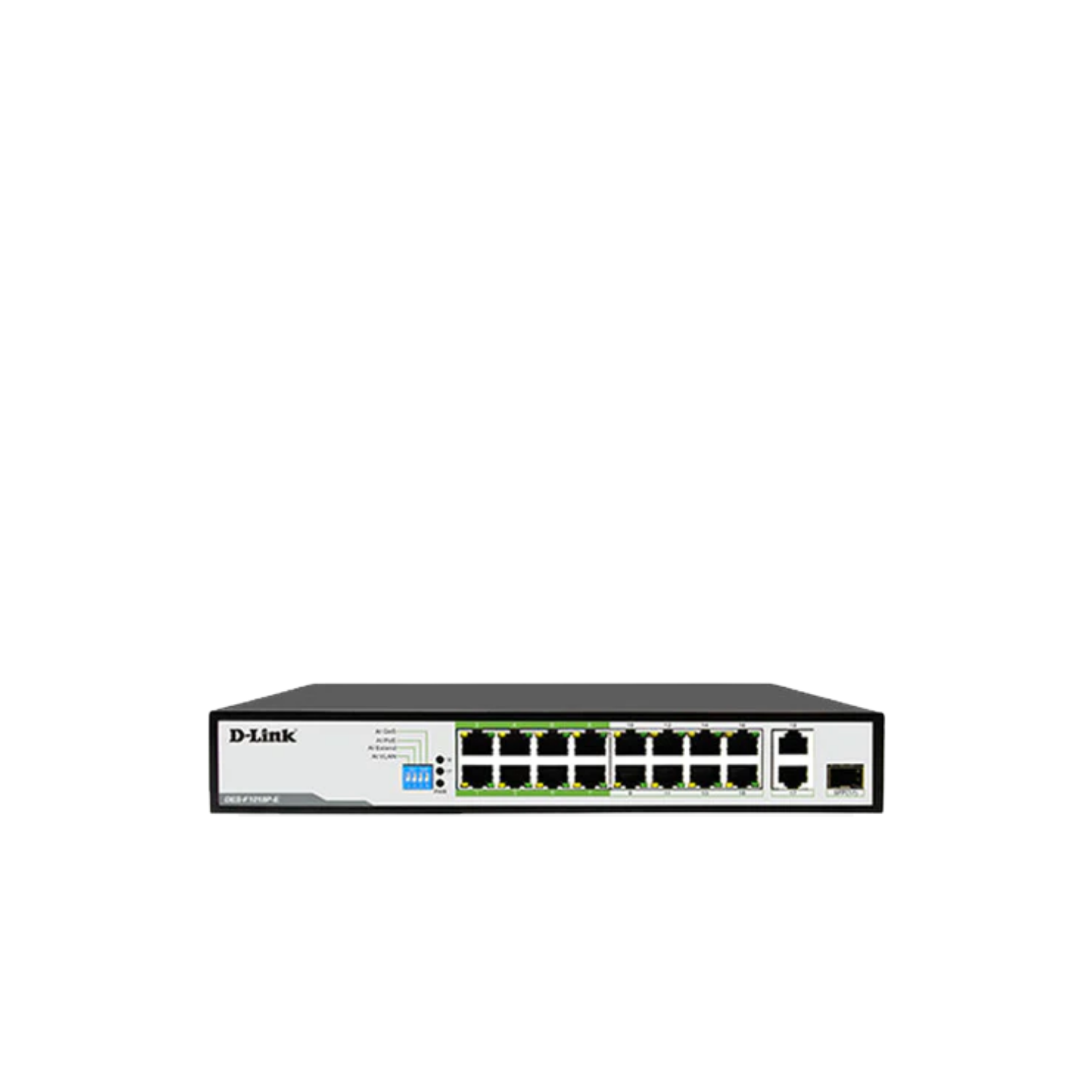

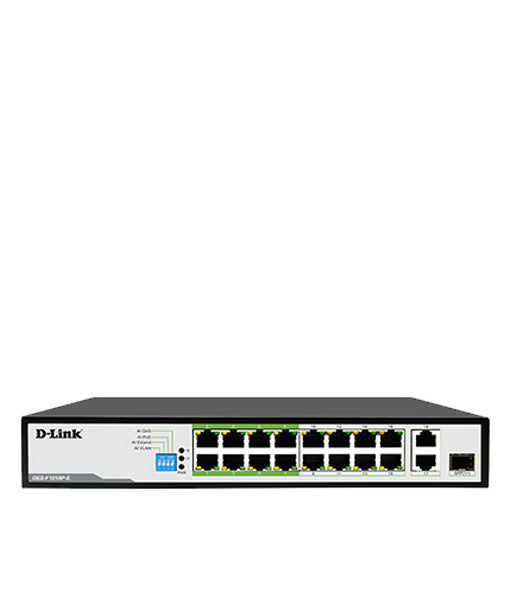

16-Port Fast Ethernet PoE Switch with 1 Gigabit Port + 1 Combo Uplink Port (HW : H3 & H4)

16-Port Fast Ethernet PoE Switch with 1 Gigabit Port + 1 Combo Uplink Port (HW : H3 & H4)

Sale price$299.00Regular price $425.00

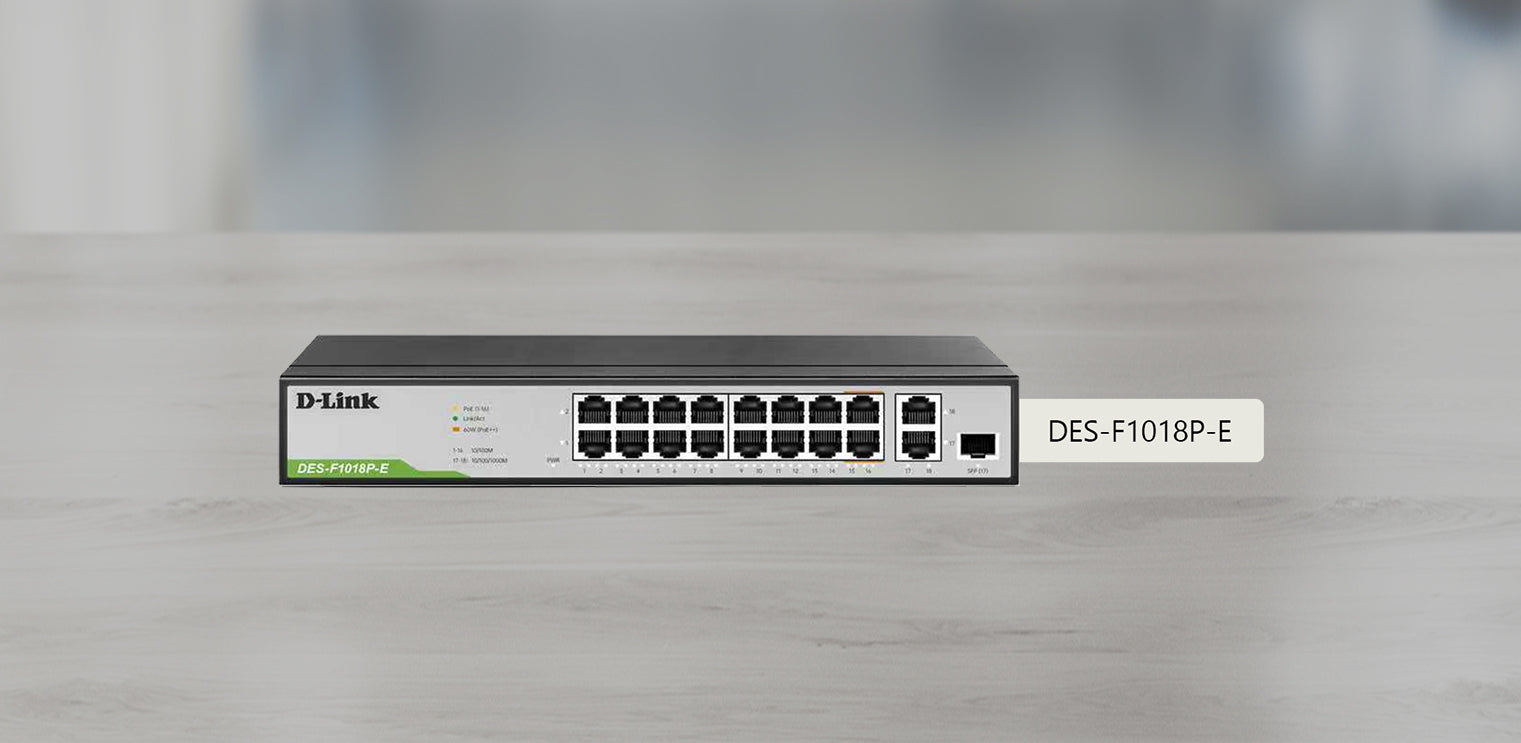

DES-F1018P-E
  • 16 10/100 Mbps PoE ports
  • Uplink 1 Gigabit port + 1 Combo (UTP/SFP) port
  • 150 W PoE budget
  • Support IEEE802.3af/bt up to 30W per port to PoE compatible devices, port 15 - 16 support 802.3bt up to 60W
  • Support transmission Data/PoE up to 250m cable length (Port 1-14 with Extend enabled)
  • 6KV Lightning protection
  • Smart Features: AI Extend, AI PoE
  • Plug & Play Installation

Pickup available at D-Link Service Centre

Usually ready in 24 hours

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

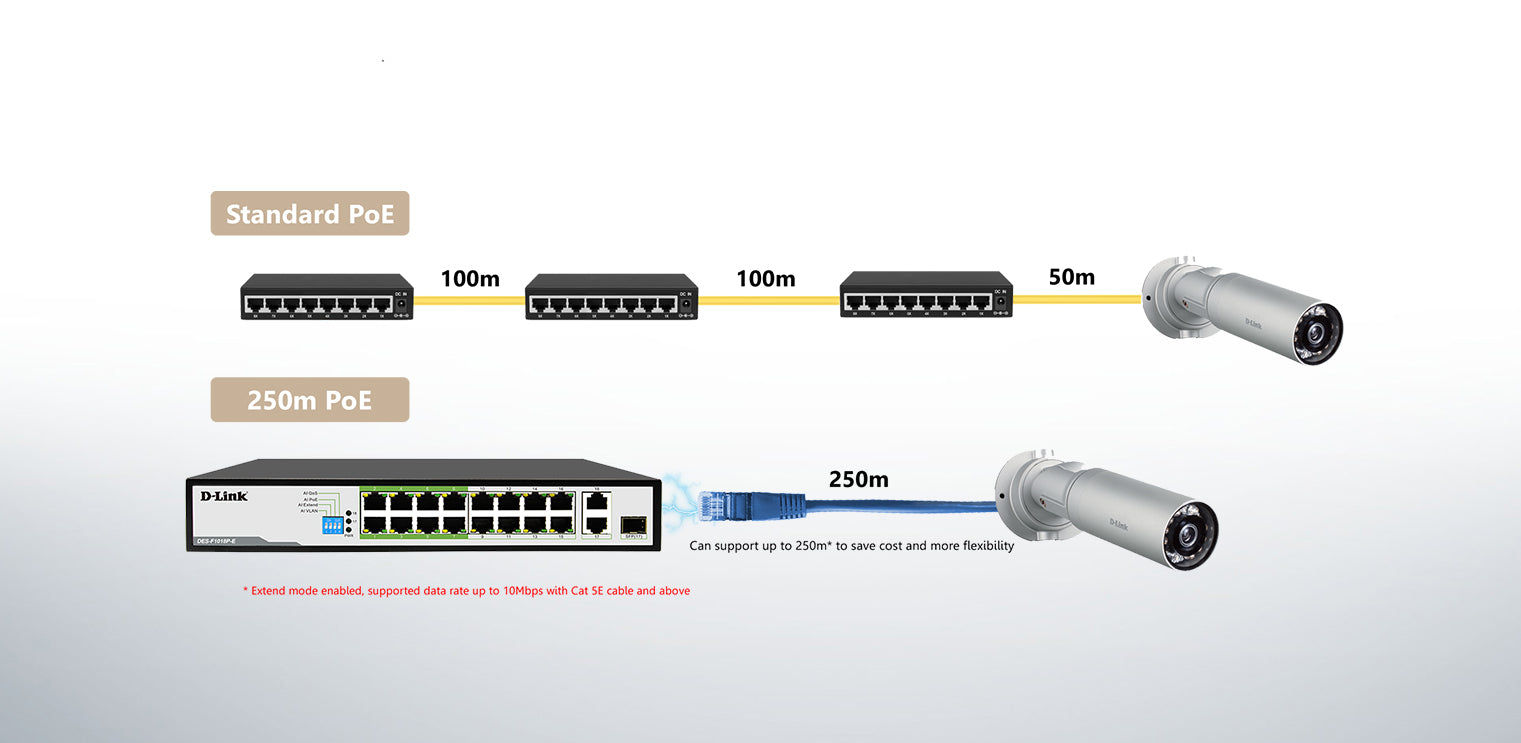

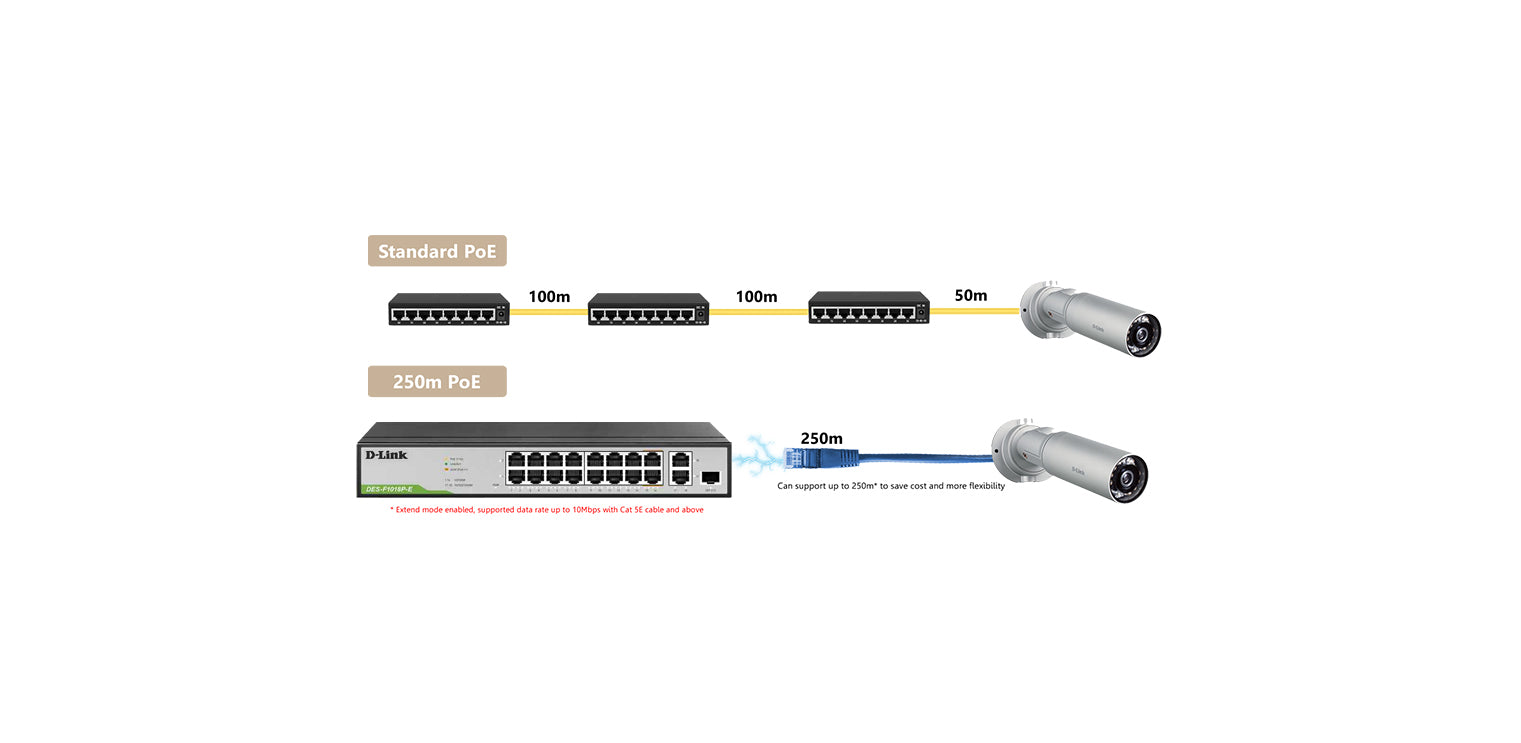

Up to 250m PoE and Data Transmission

Equipped with PoE AI Extend technology, DES-F1018P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution

6KV Surge Protection

D-Link 250M is enhanced with 6KV surge protection Effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position

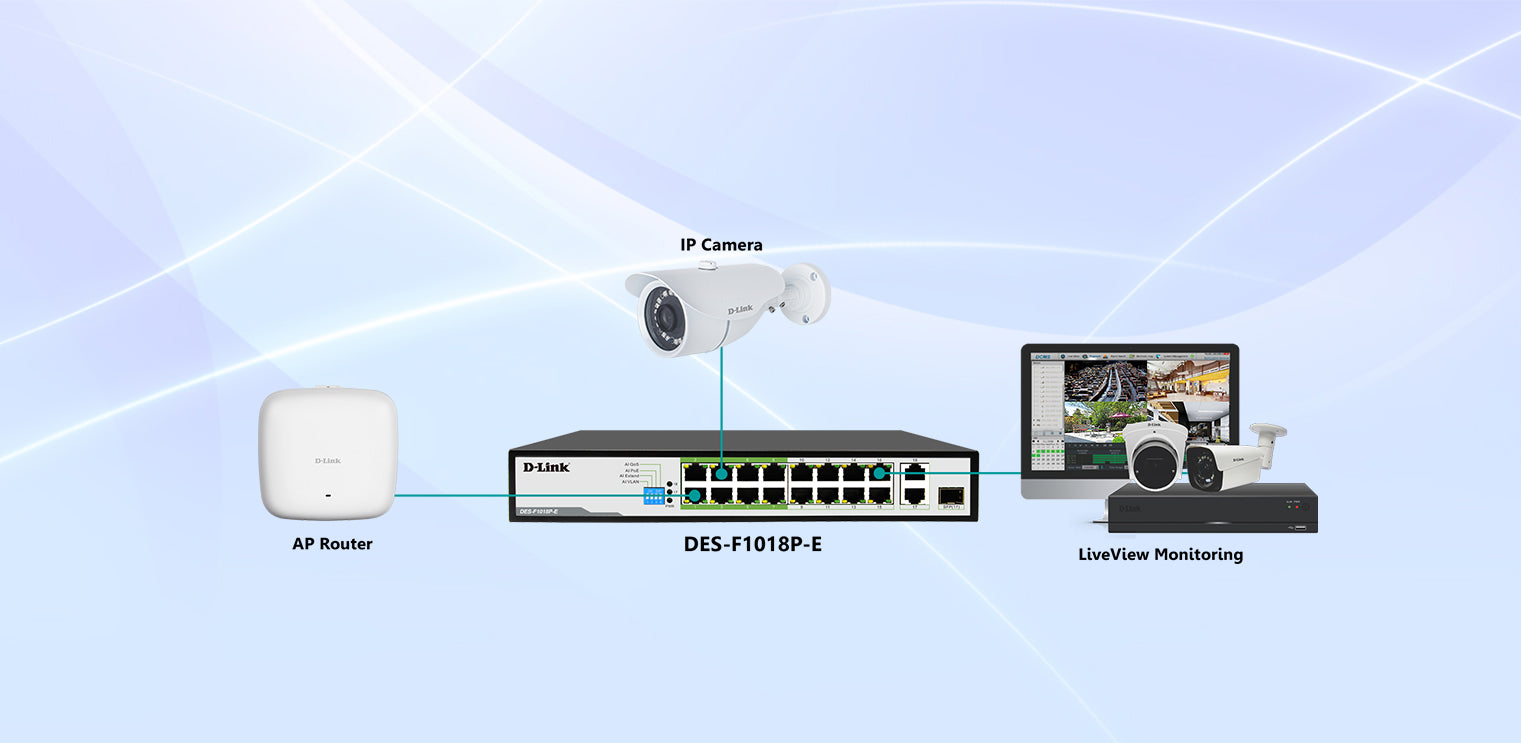

Enhanced with Video QoS

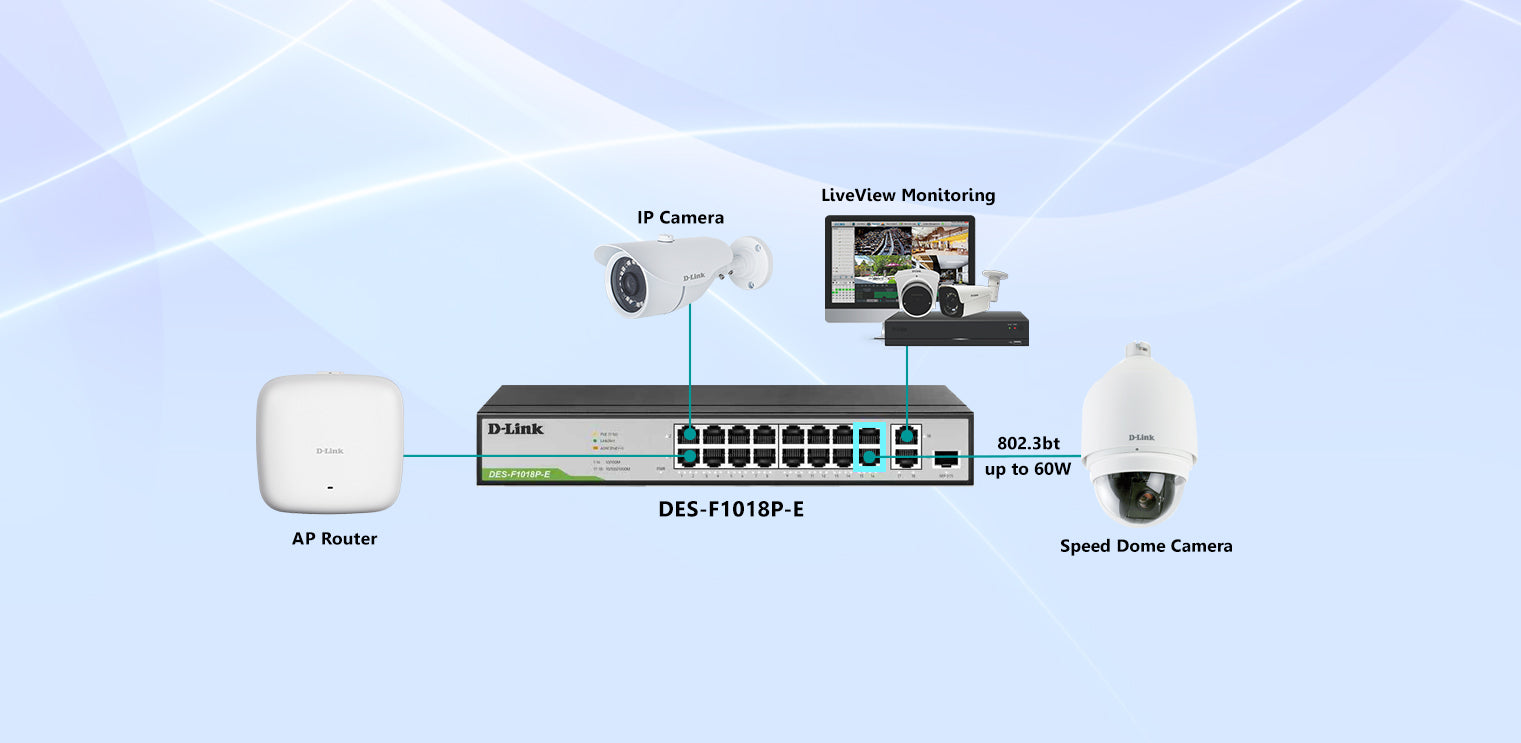

PoE++ 802.3bt Support up to 60W

Improve the Video Packet Priority
Create high priority for video streaming, perfect solution for IP camera/CCTV

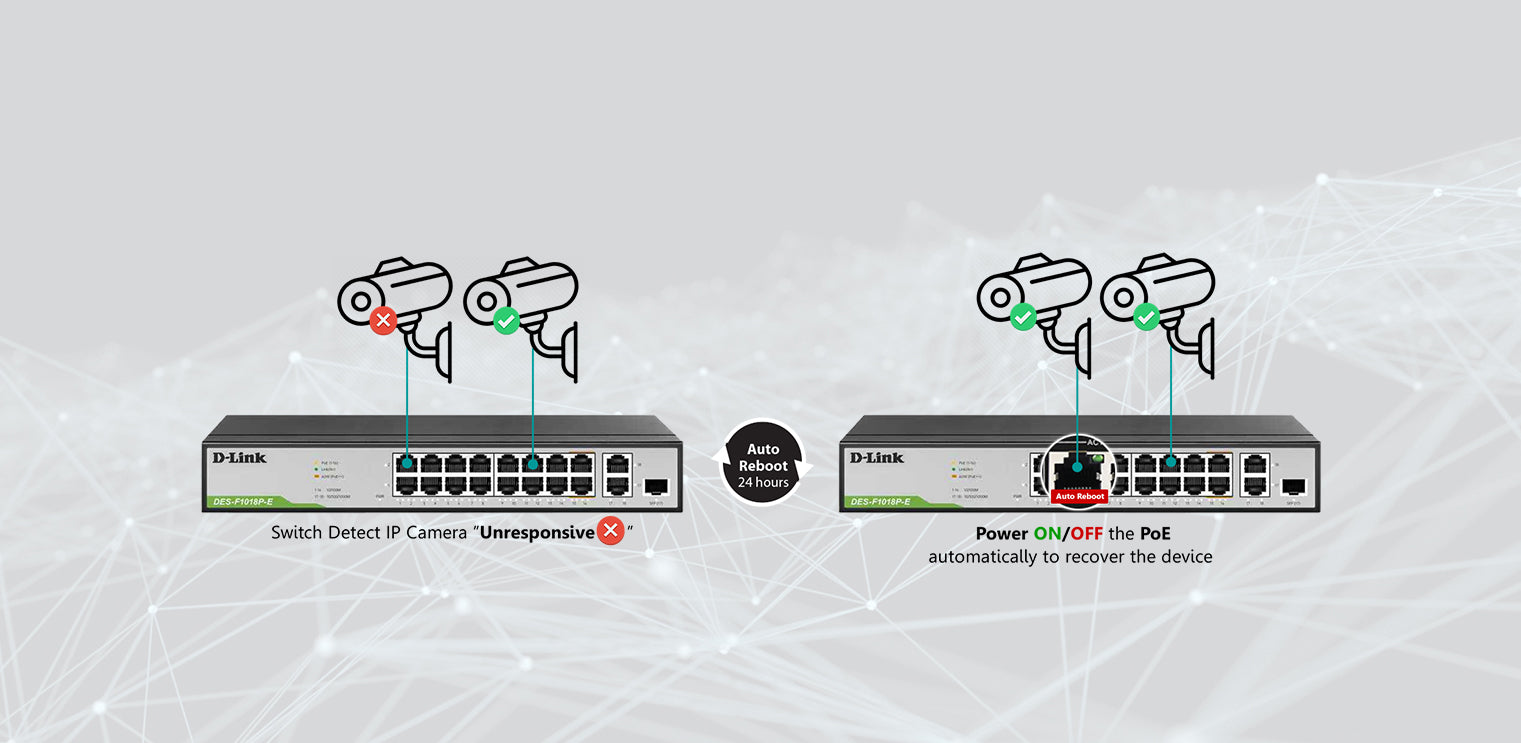

Intelligent Detection

Automatically Detect unresponsive PoE device and reboot the device for recovery

Downloads Datasheet

Tech Specifications

Hardware
Interfaces

•16 10/100 BASE-T ports

•1 X 10/100/1000 BASE-T port

•1 X Combo Gigabit UTP/SFP

PoE-Capable Ports

•Port 1 - 16 (Port 1 - 14 PoE can support up to 250m @ 10Mbps with Extend enabled) (Port 15 - 16 support 802.3bt PoE++ up to 60W)

Power

•✓

• External power adapter: 150W

Link/Activity

• ✓

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

• IEEE 802.3x flow control

• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

• ANSI/IEEE 802.3 NWay auto-negotiation

Switching Fabric

•7.2Gbps

Transmission Method

•Adopt Store-and-forward

Data Transfer Rates

•Gigabit Ethernet : 10/100/1000 Mbps

•Fast Ethernet : 10/100 Mbps

Packet Filtering / Forwarding Rates

• 10M port maximum 14800pps
• 100M port maximum 148800pps
• 1000M port maximum 1488000pps

Media Interface Exchange

• Auto MDI/MDI-X adjustment on all ports

Wireless
Wireless

PoE Standards

•IEEE 802.3af IEEE 802.3at

General
Lighting Protection

•6KV

Power Budget

•150W (36 W max. per PoE port)

Safety

• LVD

EMI/EMC

•CE

•FCC

Physical
Size

•Desktop (with Mounting Kit)

Weight

•2.5 kg

Dimensions

•285 x 180 x 44 mm

Temperature

• Operating: 0 to 40 ˚C (32 to 104 ˚F)

Humidity

• Operating: 0% to 95% RH non-condensing

• Storage: 0% to 95% RH non-condensing
