18-Port Gigabit PoE Smart Managed Switch

18-Port Gigabit PoE Smart Managed Switch

DGS-1100-18PV2

Product variants

• 16 x 10/100/1000BASE-T PoE+ ports
• 2x RJ45/SFP Combo ports
• PoE+ support with up to 30W per port
• 130 Watts PoE Power Budget
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
• Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
• Innovative energy saving features are good for your budget, as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management

Share:

Share

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

Gigabit Ethernet Speeds

Take your Ethernet speeds to the next level with Gigabit Connectivity

Cutting Edge Green Technology

Innovative D-Link Green power saving features keep your budget in check

Manage Anywhere, Anytime

Remote setup & management is easy, and can be done from anywhere

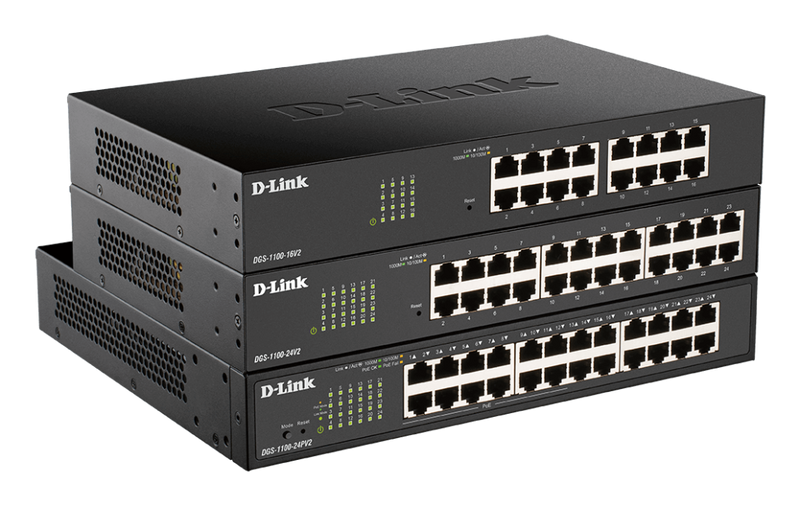

Powerful Switching for your Business

The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install

D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

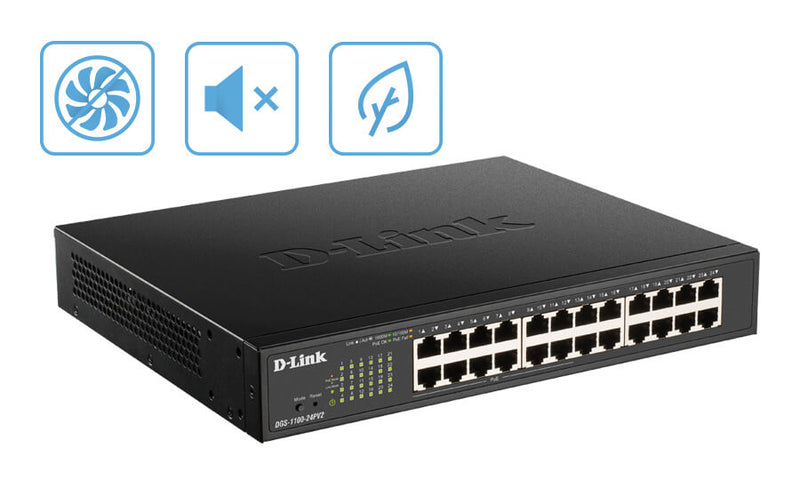

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

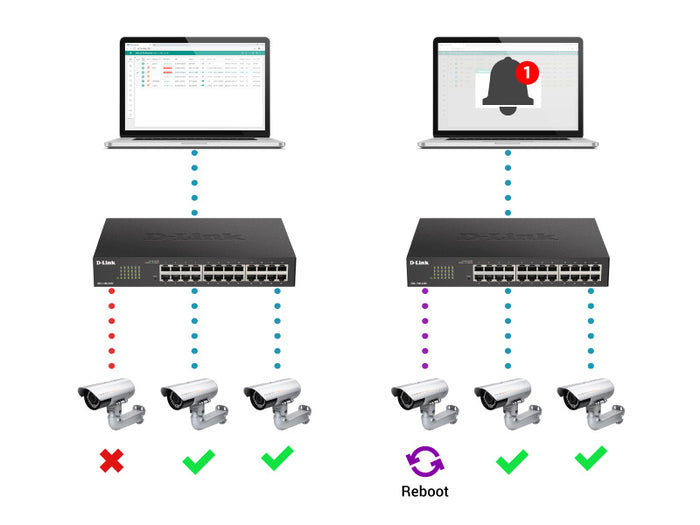

PD Alive Actively Mitigates Downtime

Round-the-clock surveillance footage is vital. If you have cameras attached to your network, you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the switch can automatically reset them and get them back online. No need to turn them on and off again in the middle of the night.

VLANs: Stronger Security & Better Traffic Management

Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice

If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance

If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Downloads Datasheets M2M Solution Guide

Tech Specifications

Hardware

Auto MDI/MDIX

Yes

10/100/1000BASE-T PoE ports (802.3af/at)

16

802.3bt 90W Support

No

10/100/1000BASE-T ports (Including PoE ports)

16 + 2 (Combo)

Gigabit SFP ports

2 (Combo)

Port-based Bandwidth Control

Yes

Class of Service (CoS)

Yes

802.3x Flow Control

Yes

Store-and-Forwarding

Yes

Comply with RoHS

Yes

Energy Efficiency Ethernet (EEE)

Yes

FAN

Fixed Fan

Jumbo Frame

9,216 bytes

Loopback Detection (LBD)

Yes

IGMP Snooping

Yes

802.1AX Link Aggregation

Yes

802.3ad Link Aggregation

Yes

SNMP

Yes

Web-based GUI

Yes

D-Link Discover Protocol (DDP)

Yes

D-Link Network Assistant

Yes

Port Mirroring

Yes

Cable Diagnostics

Yes

Switch Capacity

36 Gbps

Max. Packet Forwarding Rate

26.78 Mpps

Maximum Power Consumption (PoE On)

168W

Maximum PoE Budget

130 W (30W max. per PoE port)

Rate Limiting

Yes

Power Input

AC: 100-240V

Queue Handling

Yes

Strict Priority Queue (SPQ)

Yes

Weighted Round Robin (WRR)

Yes

SSL

Yes

Broadcast/Multicast/Unicast Storm Control

Yes

Traffic Segmentation

Yes

D-Link Safeguard Engine

Yes

DoS Attack Prevention

Yes

802.1D Spanning Tree (STP)

Yes

802.1w Rapid Spanning Tree (RSTP)

Yes

General

EMI Certification

FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI

Safety Certification

cUL, UL, LVD, CB, BSMI

Physical

Dimension

280 x 230 x 44mm

Weight

2.10kg

Operation Temperature

-5-50°C

802.1Q VLAN

Yes

Port-based VLAN

Yes

Voice VLAN

Yes

Auto Surveillance VLAN

Yes

Asymmetric VLAN

Yes
