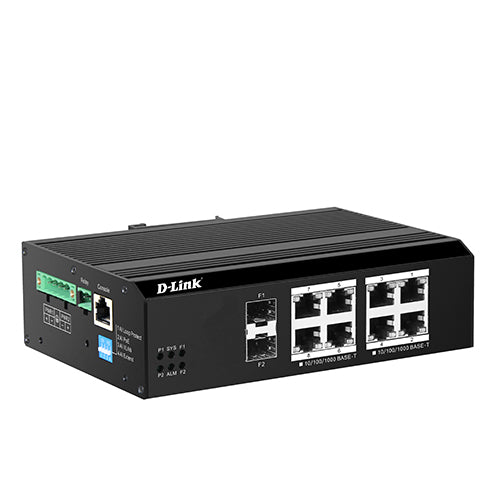

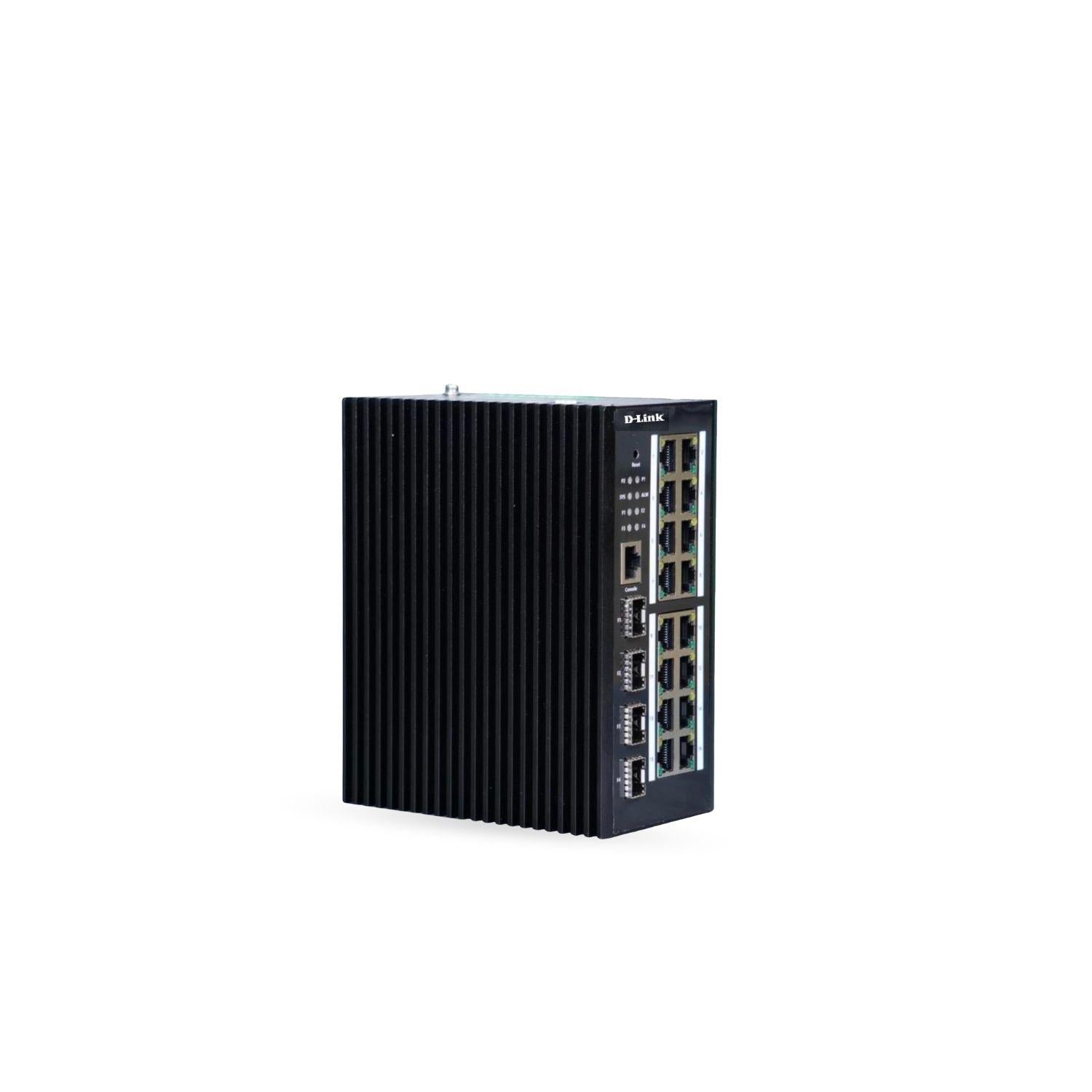

20-port Gigabit Layer 2 Managed Industrial PoE (480W) Switch with 4-port Gigabit Uplinks

DIS-F2020PS-E

20-port Gigabit Layer 2 Managed Industrial PoE (480W) Switch with 4-port Gigabit Uplinks

$0.00

• 8 Gigabit PoE LAN ports with 2 SFP slot for high-speed wired connections
• Support up to 250 meters PoE and Data transmission*
• Support 802.3af/at up to 30W per port
• Layer 2 switch features
• DIN-Rail or wall-mount installation
• IP40 rated
• -40°C to 75°C wide operating temperature
• High EMC endurance
• 6KV surge protection
• Dual power input for backup

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

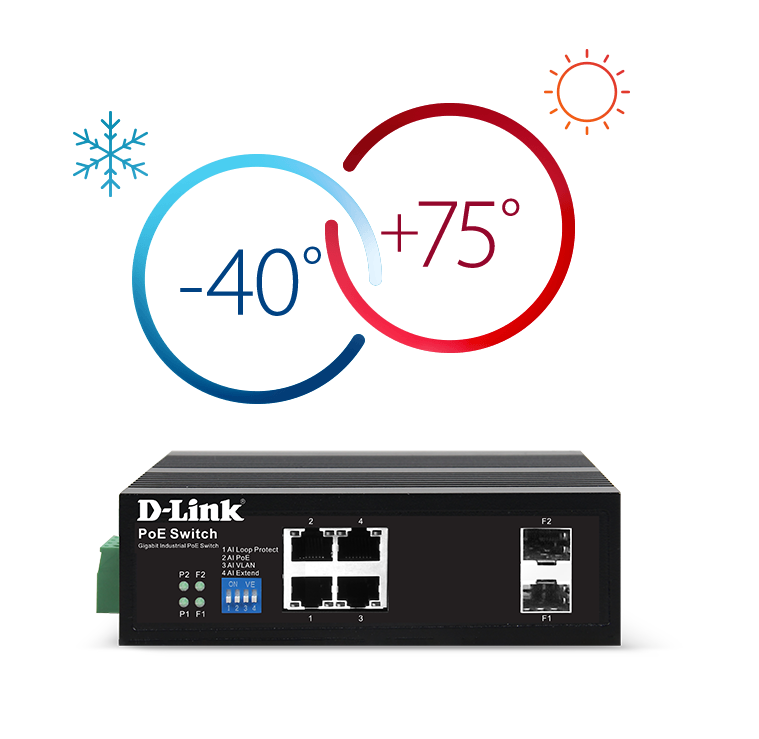

Durable and Reliable Design

DIS-F2010PS-E is housed in highly resistant IP40 rated metal casing to protect from harsh environmental conditions. Created to withstand extreme heat and Sub-zero temperatures (-40 – 70 degree Celsius) and 6KV lighting protection  making it suitable to deploy in a huge variety of field application

Durable and Reliable Design

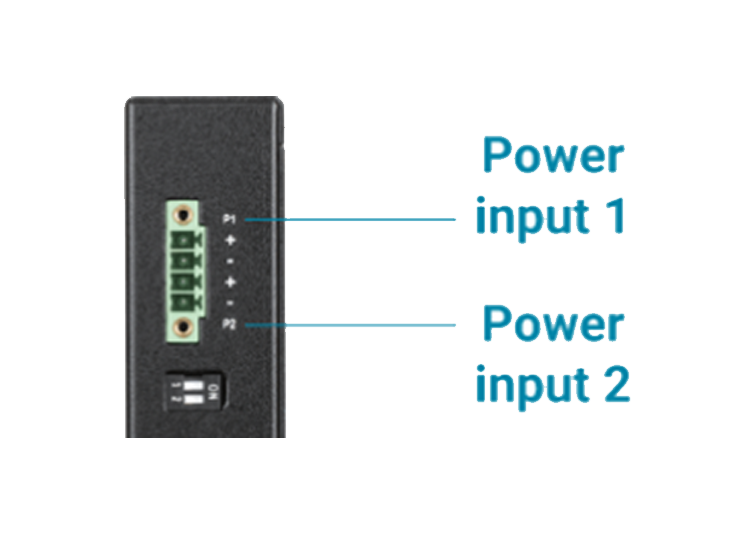

High Redundancy Design

DIS-F2010PS-E feature a power redundancy design for enhanced reliability. A dual power input allows for a redundant power supply to ensure network keep running in the event of a primary power supply failure

High Redundancy Design

250m PoE Switch

DGS-F2010PS-E have the capability to supply 802.3af/at PoE up to 250m* with data transmission. Cost saving for long distance solution

5G PoE Diagram

Easy to deploy with compact size

DIS-F2010PS-E with its compact size is suitable for deployment for curbside cabinet space either put on shelve or snap to rail clips

5G PoE Diagram
Downloads Datasheets M2M Solution Guide

Tech Specifications
