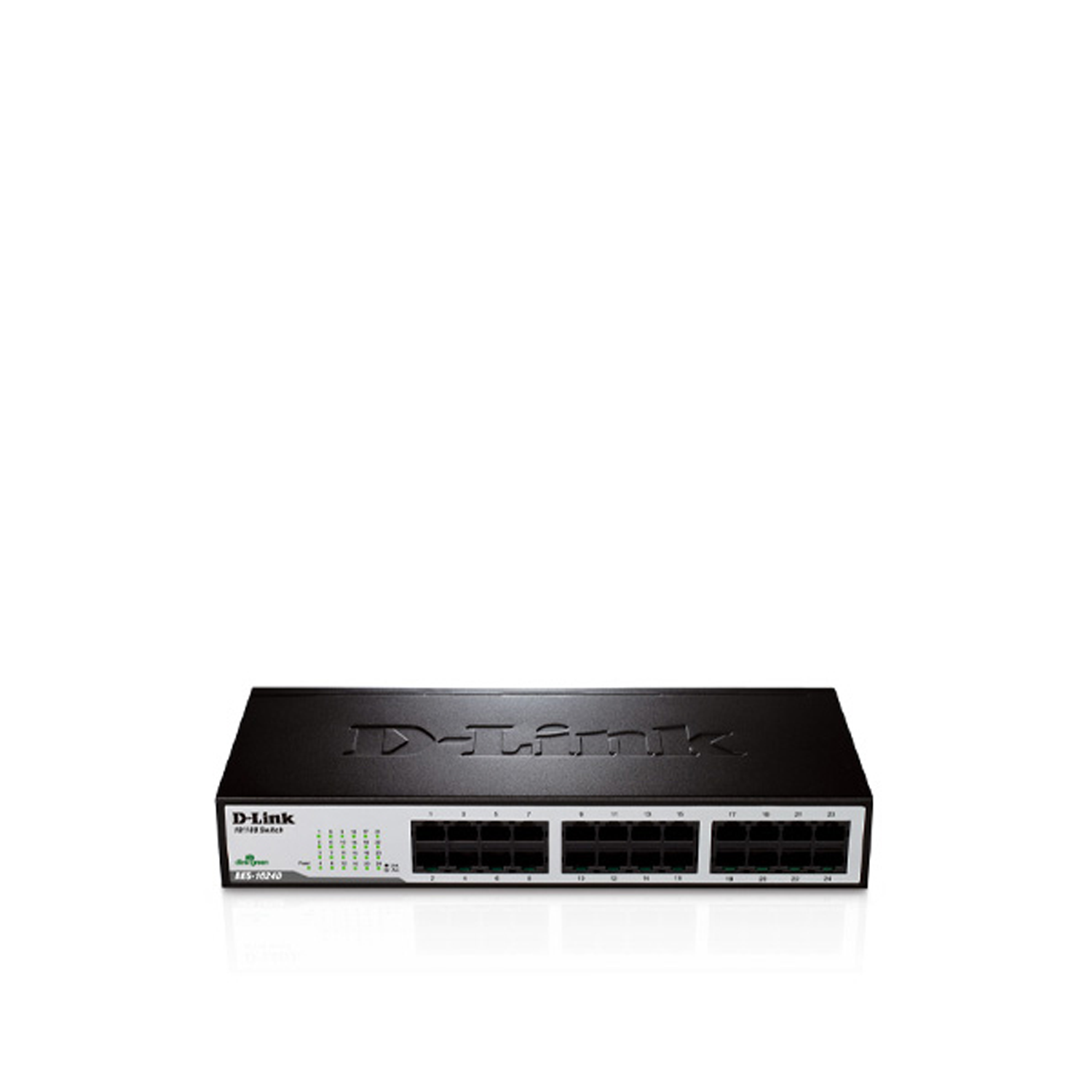

24-Port Fast Ethernet Desktop/Rackmount Switch In Metal Casing
SKU
SKU: DES-1024D

24-Port Fast Ethernet Desktop/Rackmount Switch In Metal Casing

The DES-1024D is a 24-Port 10/100 Unmanaged Desktop/Rackmount Switch that combines ease of use with unsurpassed performance, resulting in an exceptional value for any network administrator who wants the best possible solution at the best price. The DES-1024D is a true Plug-and-Play device, featuring Auto Speed Sensing, Auto-negotiation, and Auto MDI/MDI-X Crossover.

Pairs well with

Ships within 1-2 business days for in-stock items

* Warranty Details

Complimentary shipping above $80
Downloads Datasheets

Tech Specifications

Hardware
Network Cables

100BASE-TX

• UTP CAT 5/5e (100 m max.)

• EIA/TIA-568 100-ohm STP (100 m max

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

LED Indicators

• Per port:

• Link/Activity

• Per device:

• Power

Transmission Method

• Store-and-forward

Wireless
Wireless
Port Packet Filtering/ Forwarding Rate

• 14,880 pps for 10 M

Swicthing Fabric

• DES-1024D:

• 4.8 Gbps switching fabric

Number of Ports

• DES-1024D:

• 24 10/100Mbps Fast Ethernet ports

General
Standards

• ANSI/IEEE 802.3 NWay auto-negotiation

• IEEE 802.3x flow control

• IEEE 802.3az EEE function

LAN

• IEEE 802.3x Flow Control support

Data Transfer Rates

• Ethernet

• 10 Mbps Half-Duplex

• 20 Mbps Full-Duplex

Physical
Dimensions

• 282 x 150 x 44 mm (11.1 x 5.91 x 1.73 inches)

Weight

• DES-1024D: 1.14 kg (2.51 lbs)

Power Consumption

DES-1024D

• Standard Power Consumption: 1.17 Watts

• Maximum Power Consumption: 2.8 Watts

Heat Dissipation

DES-1024D:

• Maximum Heat Dissipation: 9.5536 BTU/h

MTBF

• DES-1024D: 810,880 hours

Storage

• Storage: -10 to 70 °C (14 to 158 °F)

Humidity

• Storage: 5% to 90% non-condensing
