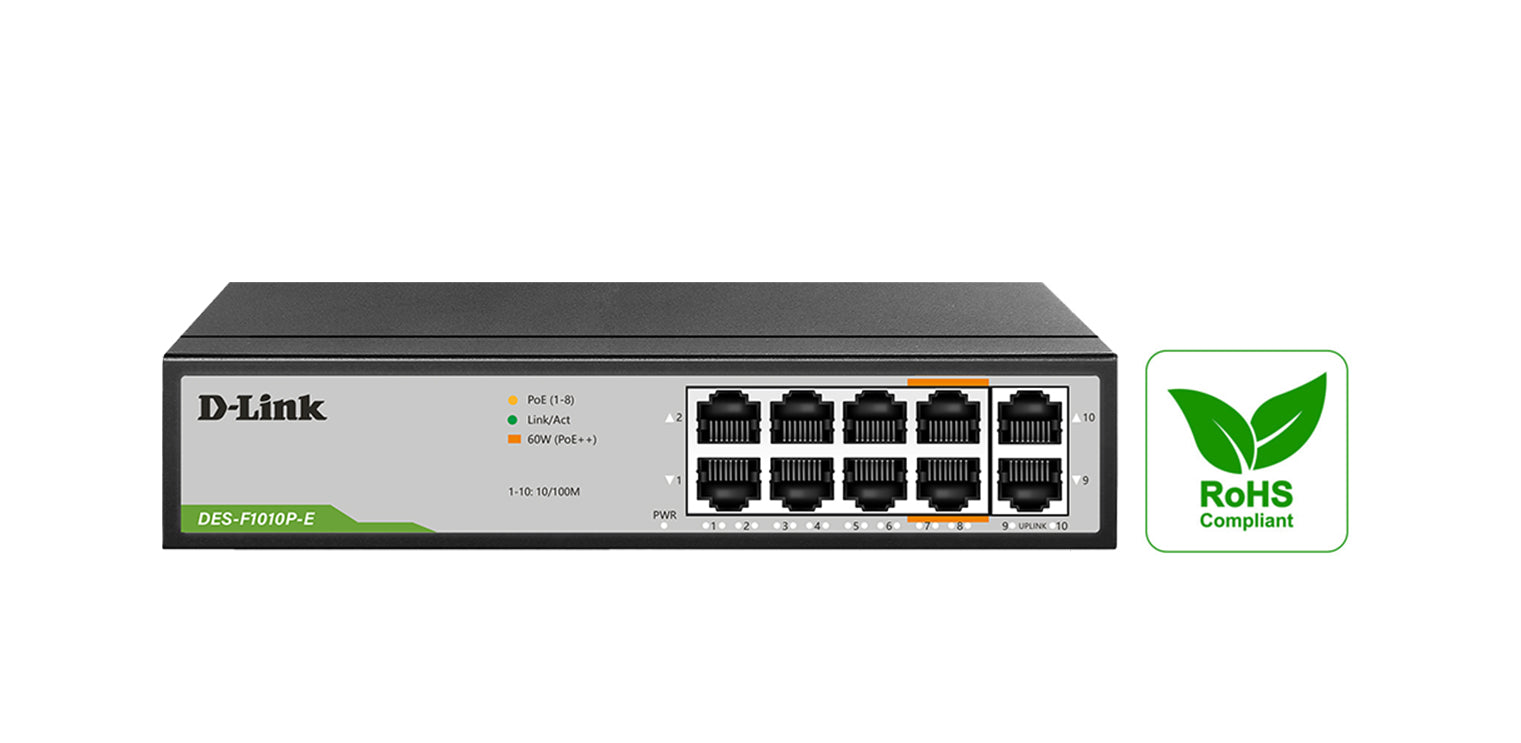

250M 10-Port Fast Ethernet Switch with 8 PoE Ports and 2 Uplink Ports
250M 10-Port Fast Ethernet Switch with 8 PoE Ports and 2 Uplink Ports
250M 10-Port Fast Ethernet Switch with 8 PoE Ports and 2 Uplink Ports

250M 10-Port Fast Ethernet Switch with 8 PoE Ports and 2 Uplink Ports

Sale price$119.00Regular price $165.00

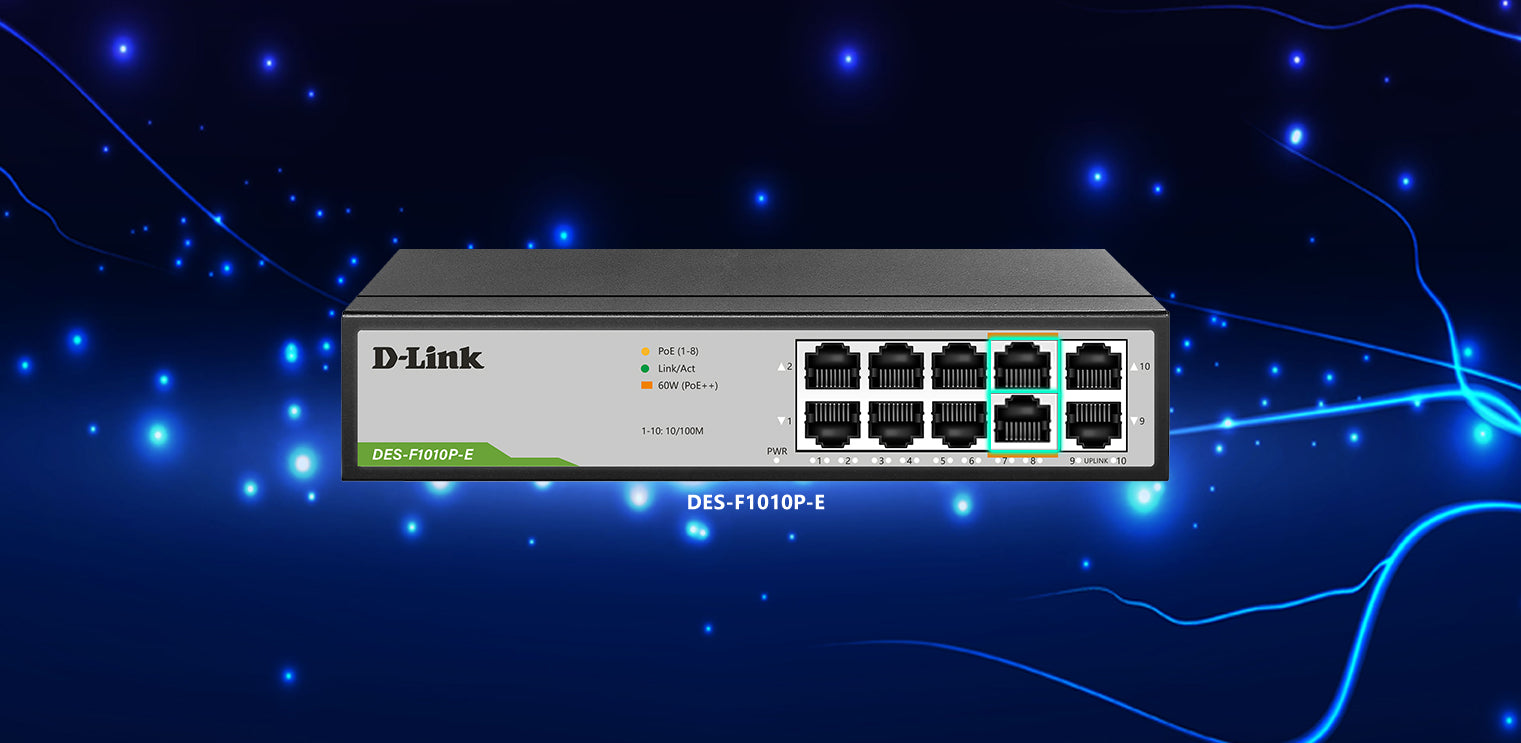

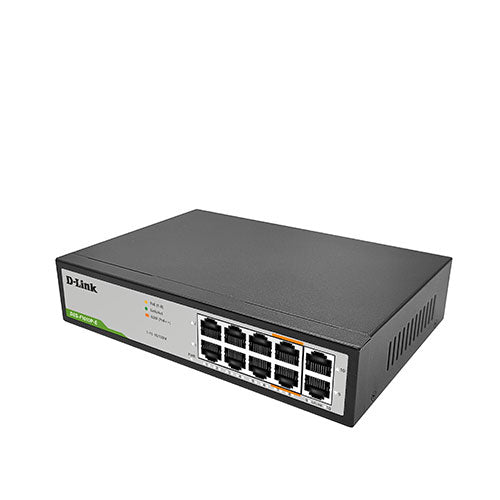

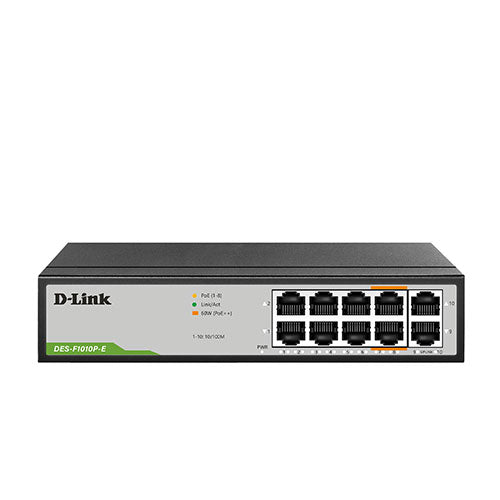

DES-F1010P-E



  • 8 10/100 Mbps PoE ports
  • 2 10/100Mbps Uplink ports
  • 96 W PoE budget
  • Support IEEE802.3af/at up to 30W per port to PoE compatible devices
  • Support transmission Data/PoE up to 250m cable length
  • 6KV Lightning protection
  • Smart Features: Extend, VLAN, QoS and PoE
  • Plug & Play Installation

Pickup available at D-Link Service Centre

Usually ready in 24 hours

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

Key Features

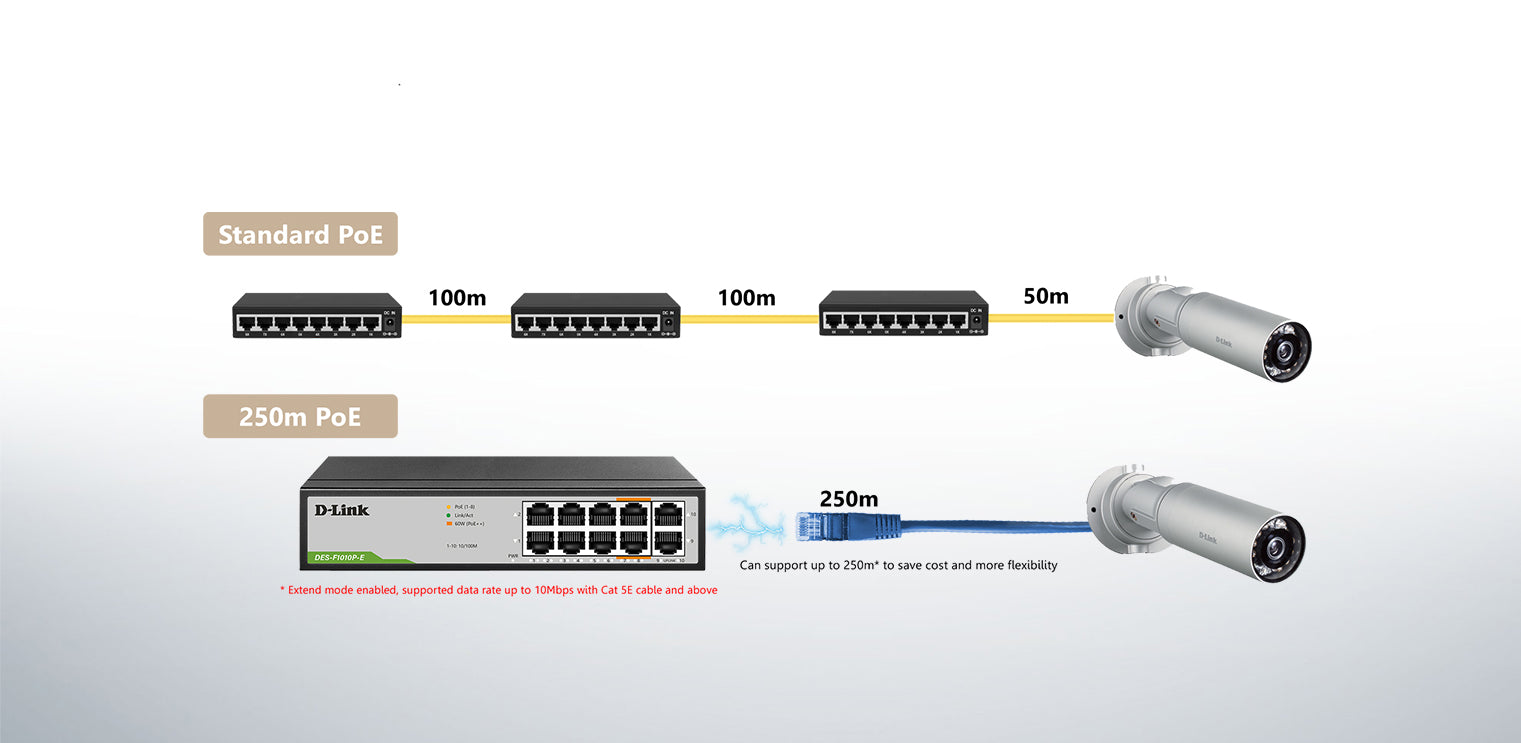

Up to 250m PoE and Data Transmission

Equipped with PoE extend technology, DES-F1010P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution

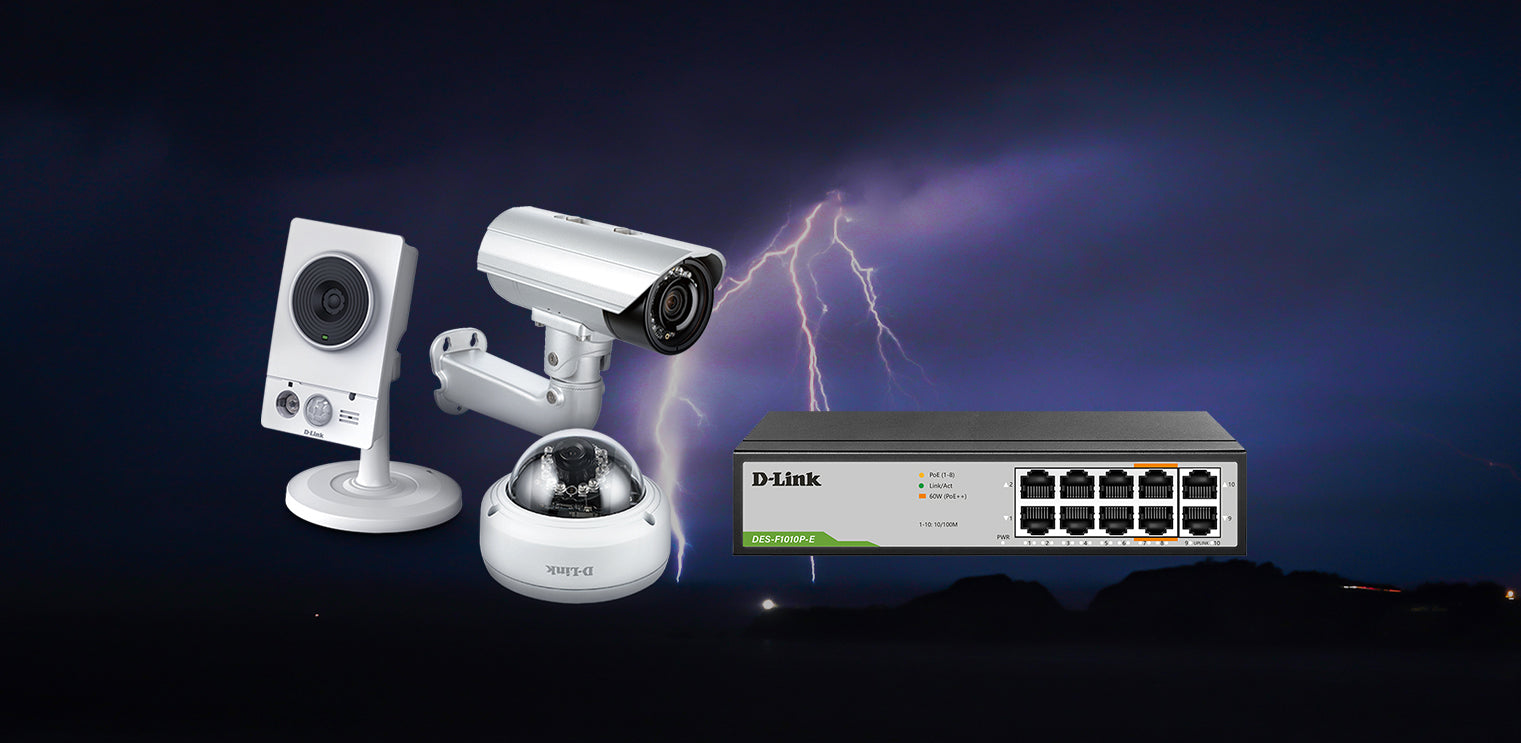

6KV Surge Protection

D-Link DES-F1010P-E is enhanced with 6KV surge protection
Effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position

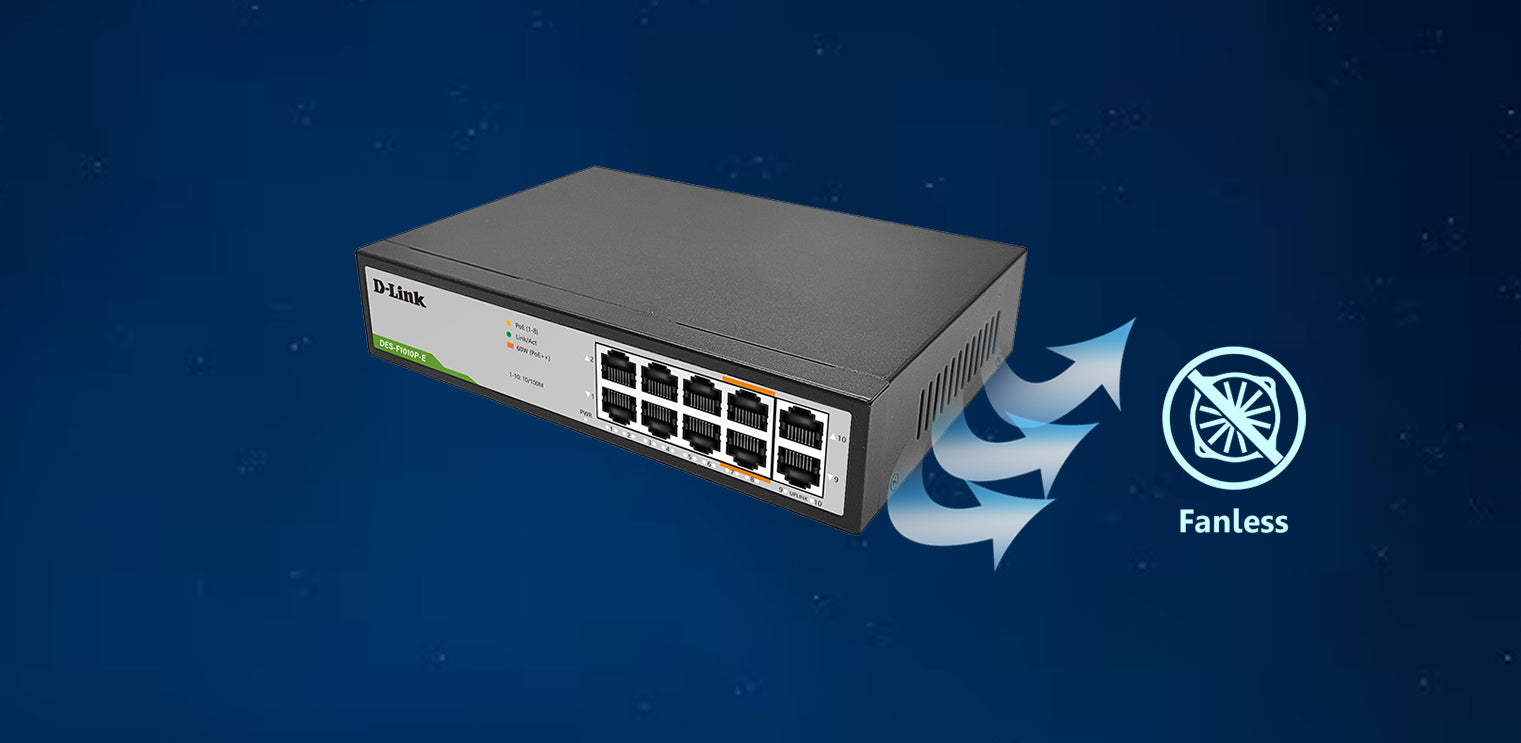

Fanless Design

The fanless design means zero added noise wherever its located, making it ideal for
noise-sensitive environments

802.3bt ( 93W ) ​

Supports PoE Powered Device (PD) up to 93W

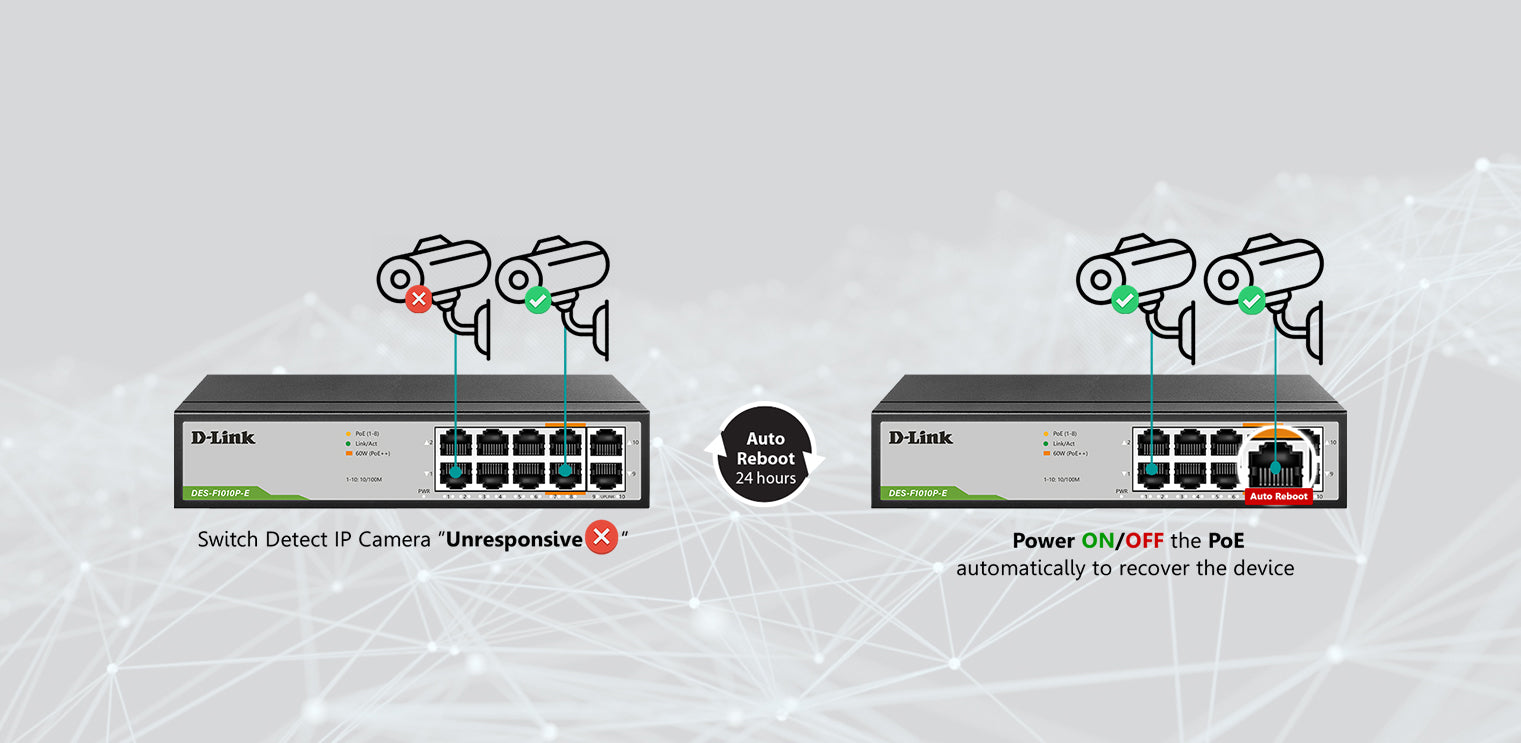

Intelligent Detection

Automatically Detect unresponsive PoE device and reboot the device for recovery

Energy Efficient

Designed to optimize power usage lowering
its cost to operate.

Downloads Datasheet

Tech Specifications

Hardware
PoE Standards

• IEEE 802.3af/ 802.3at (Port 1-6)

• IEEE 802.3af/ 802.3at /802.3bt (Port 7-8 | 60 Watts

PoE Capable Ports

•Ports 1 to 8

PoE Power Budget (Per Switch)

•93 Watts

250m Extended Distance (Up to 10Mbps)

•Port 1 - 8 (Auto Detection)

Watchdog (WDG)

•Port 1 - 4 (Auto Detection

Standby Mode

•4W

Maximum Power Consumption

•96 W (PoE On)

Switching Capacity

•2 Gbps

Transmission Method

•Store-and-forward

MAC Address Table Size

• 2K Entries

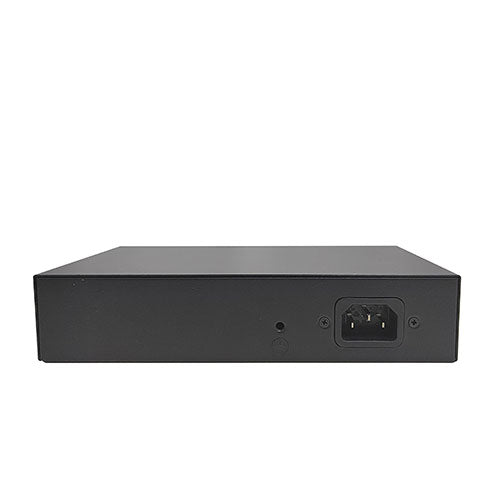

Power Input

•100 to 240 V AC

•50 to 60 Hz Internal Power Supply

Wireless
Wireless
Maximum Forwarding Rate

•1.49Mpps per switch

•Ethernet: 14,880 pps per port

•Fast Ethernet: 148,800 pps per port

Packet Buffer (if any)

• 1Mbits

General
Hardware Version

•H3

Size

•Desktop

Number of Ports

•8 x 10/100Mbps (PoE | RJ-45)

•2 x 10/100Mbps (RJ-45)

6kV Lightning Protection

•10 x 10/100Mbps (RJ-45)

Port Standards

• IEEE 802.3i for Ethernet

• IEEE 802.3u for Fast Ethernet

• IEEE 802.3af/at/bt

•Auto-negotiation

•Supports half/full-duplex operation

•Auto MDI/MDIX

• IEEE 802.3x Flow Control supports full-duplex mode

Packet Buffer (if any)

•1Mbits

Physical
Weight

•1.1 kg

Dimension

•190 x 131 x 40m (LxWxH)

Ventilation

•Fanless

Operating Temperature

•0 °C to 40 °C

Storage Temperature

• -40 °C to 70 °C

Operating Humidity

•10% to 90% non condensing

Storage Humidity

•5% to 90% non-condensing

EMI

•FCC CFR47 Part 15, EN55022/CISPR22, Class A

Safety

•CE / RoHS / FCC
