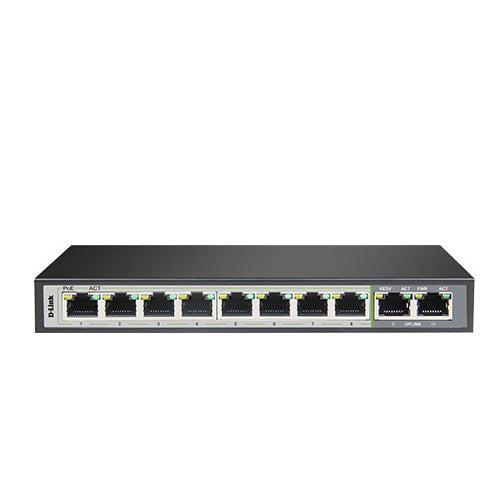

250M 10-Port Unmanaged Gigabit Switch with 8 PoE Ports (100W) and 1-2 Uplink Ports

250M 10-Port Unmanaged Gigabit Switch with 8 PoE Ports (100W) and 1-2 Uplink Ports

$0.00
SKU
  • 8 10/100/1000 Mbps PoE ports
  • • 2 10/100/1000 Mbps Uplink ports
  • • 96 W PoE budget
  • • Support IEEE802.3af/at up to 30W per port to PoE compatible devices
  • • Support transmission Data/PoE up to 250m cable length
  • • 6KV Lightning protection
  • • Smart Features: Extend, VLAN, QoS and PoE
  • • Plug & Play Installation

Pickup available at D-Link Service Centre

Usually ready in 24 hours

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

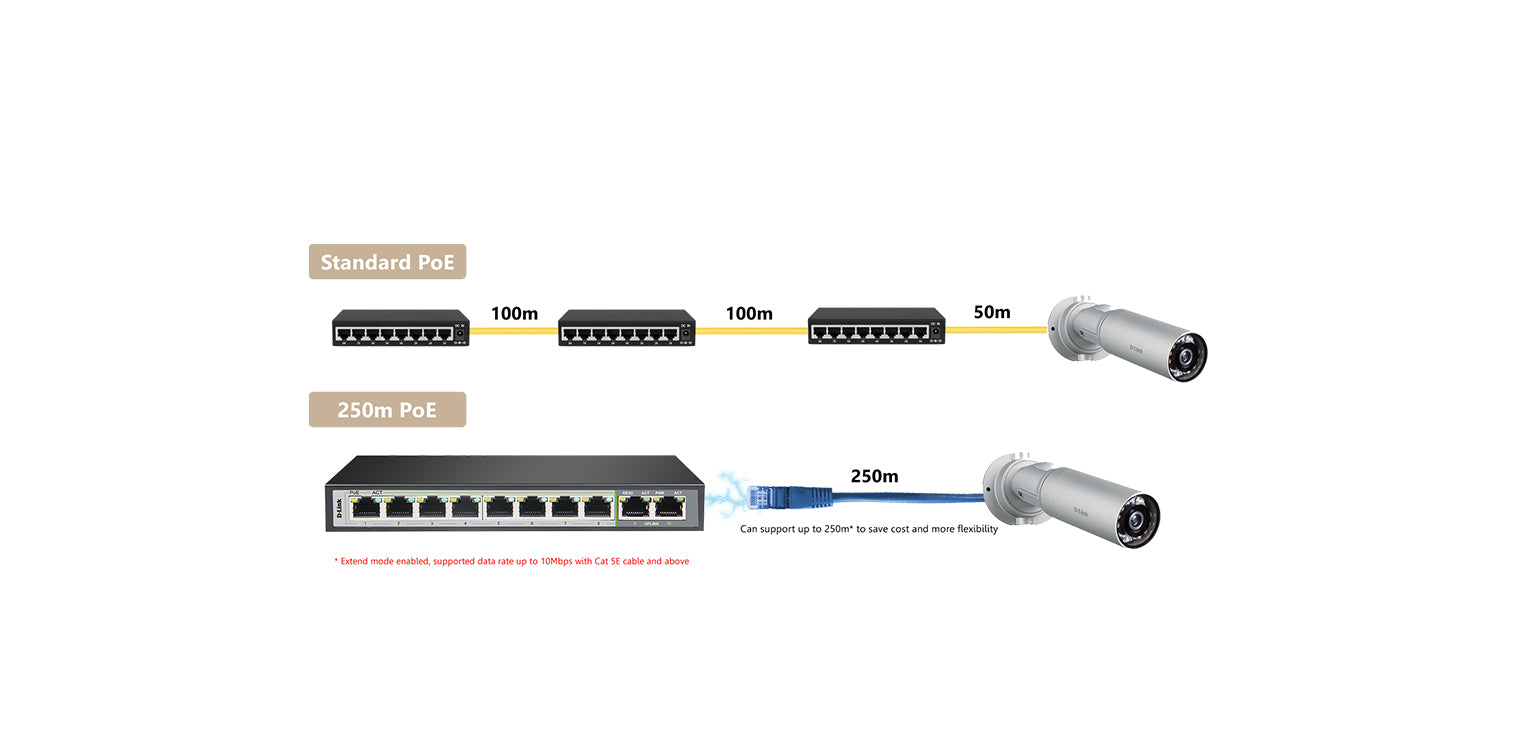

Up to 250m PoE and Data Transmission

Equipped with PoE extend technology, DGS-F1010P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution

6KV Surge Protection

D-Link 250M is enhanced with 6KV surge protection Effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position

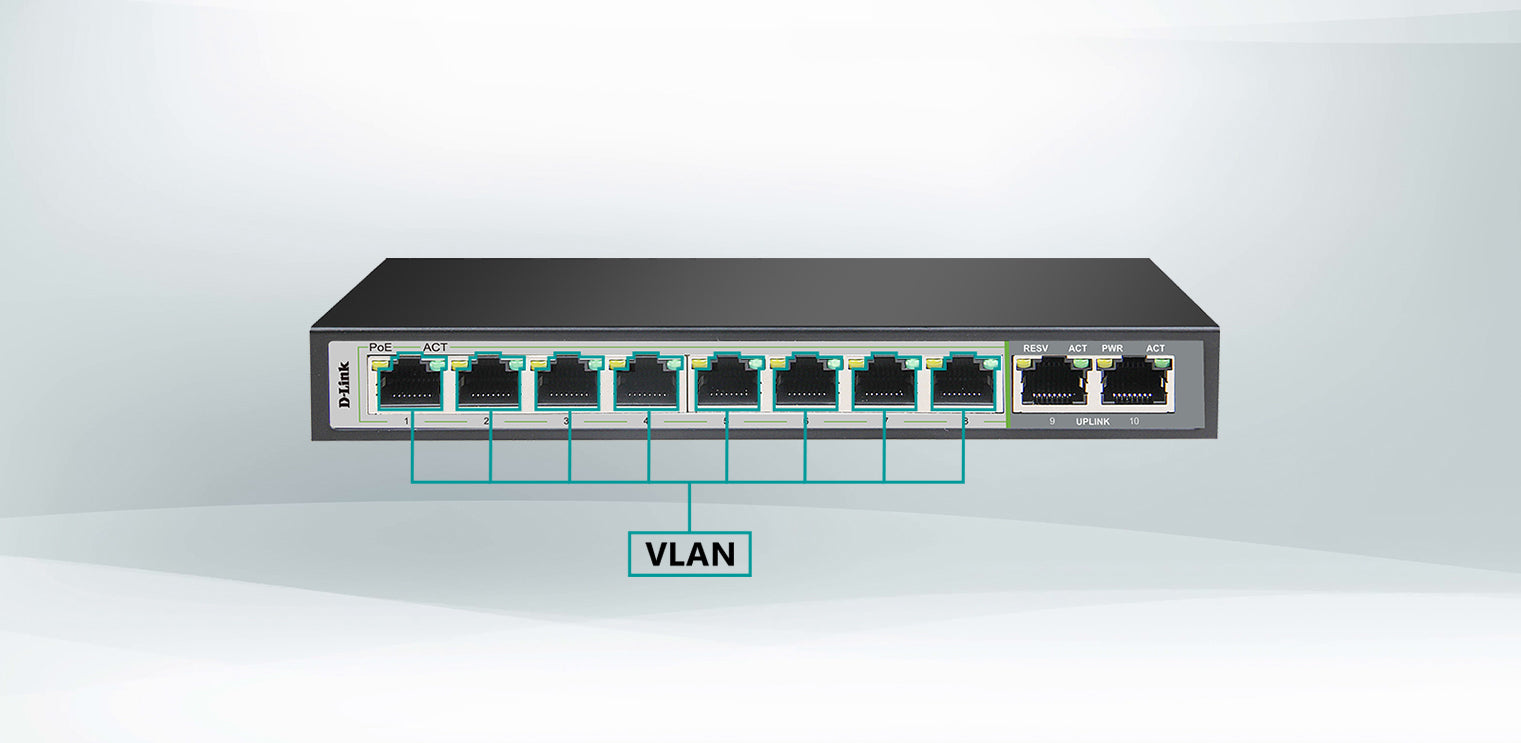

Enhanced with VLAN Function

With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance

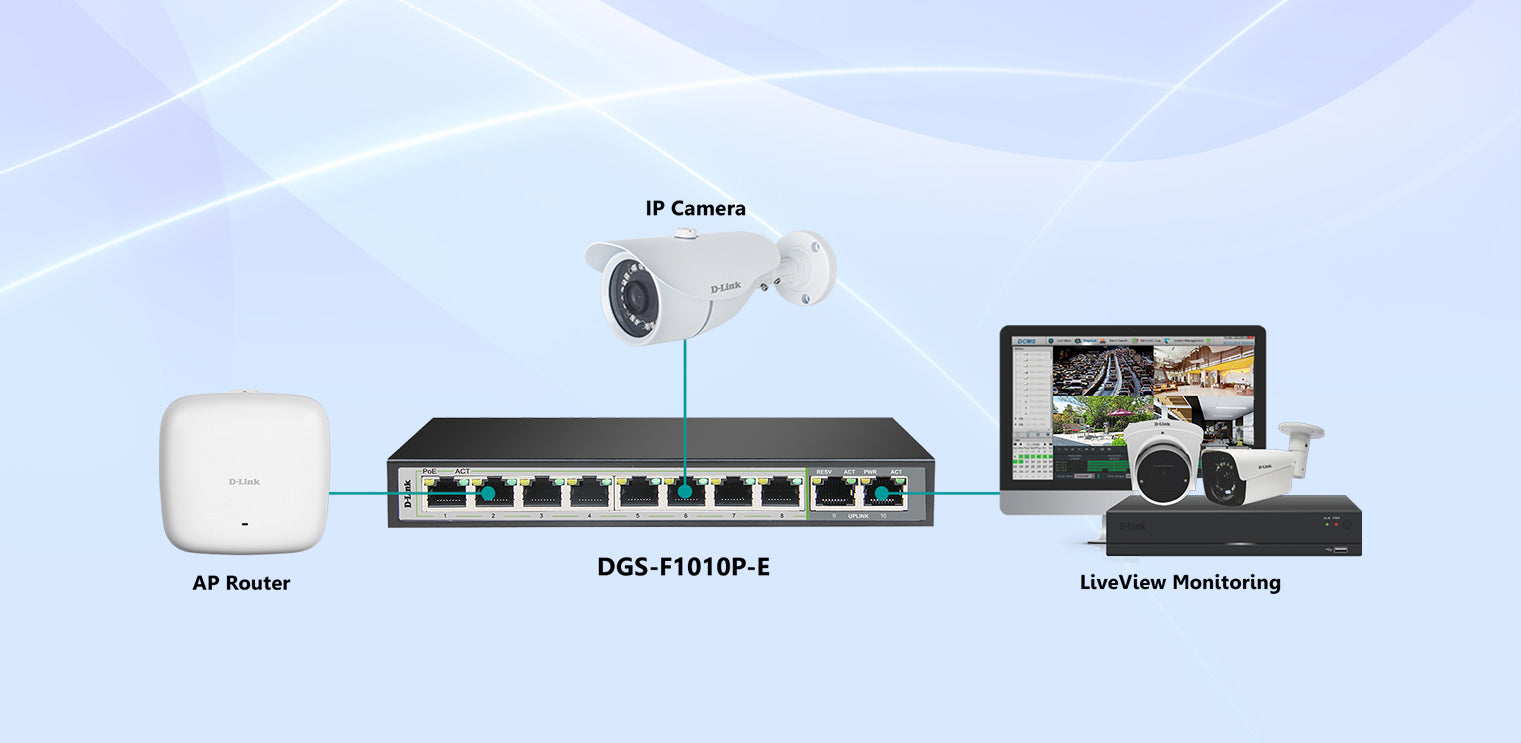

Enhanced with Video QoS

Improve the Video Packet Priority
Create high priority for video streaming, perfect solution for IP camera/CCTV

Downloads Datasheet

Tech Specifications

Hardware

Interfaces

•8 10/100/1000 BASE-T ports

•2 10/100/1000 BASE-T Uplink ports

PoE-Capable Ports

•Ports 1 to 8

Power

•✓

• External power adapter: 96W

Link/Activity

•✓

Wireless
Wireless

Standards

•IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
•IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
•ANSI/IEEE 802.3 NWay auto-negotiation
•IEEE 802.3x flow control

Data Transfer Rates

•Fast Ethernet
•100 Mbps
•Gigabit Ethernet
•1000 Mbps

Packet Filtering / Forwarding Rates

•10M port maximum 14800pps
•100M port maximum 148800pps
•1000M port maximum 1488000pps

PoE Standards

•IEEE 802.3af

•IEEE 802.3at

General
Media Interface Exchange

•Auto MDI/MDI-X adjustment on all ports

Lighting Protection

•6KV

Switching Fabric

•20 Gbps

Transmission Method

•Adopt Store-and-forward

Power Budget

•96 W (30 W max. per PoE port)

Temperature

•Operating: 0 to 40 ˚C (32 to 104 ˚F)

Humidity

•Operating: 0% to 95% RH non-condensing

•Storage: 0% to 95% RH non-condensing

Safety

•LVD

EMI/EMC

•CE
•FCC

Physical
Size

•Desktop

Weight

•0.95kg

Dimensions

•184 x 75 x 27 mm
