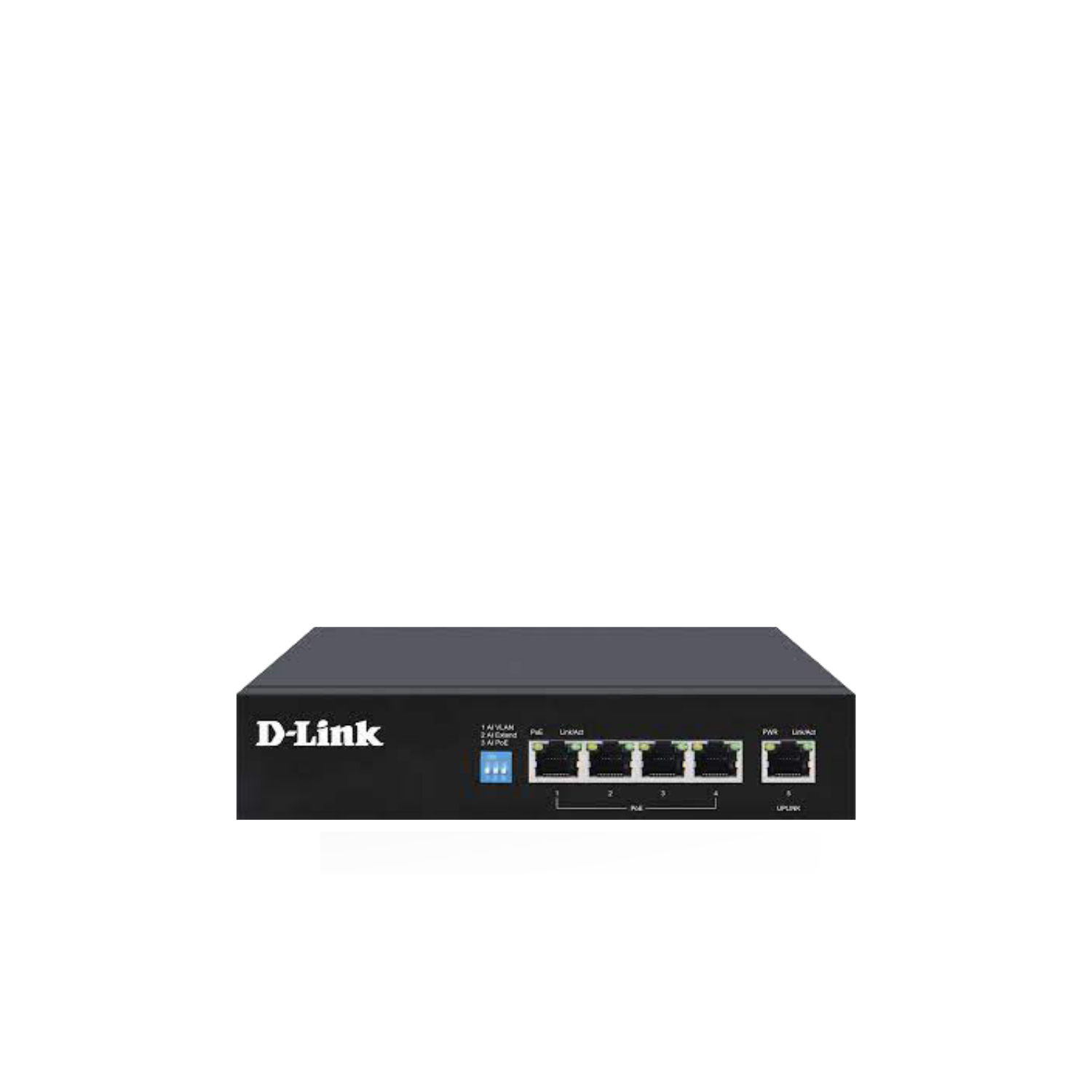

250M 5-Port 1000Mbps Switch with 4 PoE Ports and 1 Uplink Port

250M 5-Port 1000Mbps Switch with 4 PoE Ports and 1 Uplink Port

Sale price$79.00Regular price $89.00
SKU
  • 4 10/100/1000 Mbps PoE ports
  • 1 10/100/1000 Mbps Uplink port
  • 60W PoE budget
  • Supports IEEE 802.3af/at PoE to Power PoE capable network devices
  • Supports transmission distance up to 250M
  • Lightning protection 6KV
  • Smart Features: Extend, VLAN, and PoE
  • Plug & Play Installation

    • Pairs well with

    In stock item ships within 1-2 business days.

    * Warranty Details

    Complimentary shipping above $80

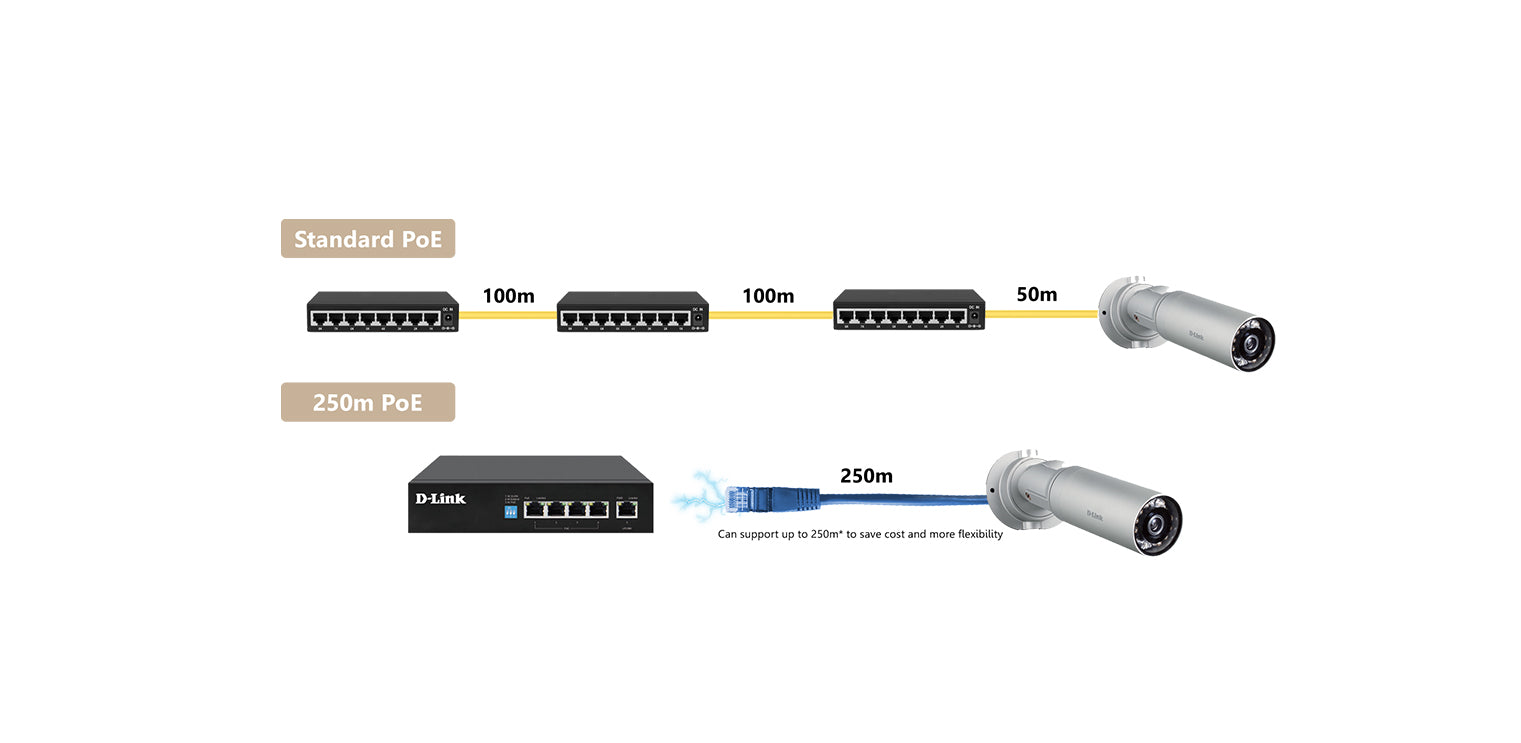

    Up to 250m PoE and Data Transmission

    Equipped with PoE extend technology, DGS-F1005P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution

    6KV Surge Protection

    D-Link 250M is enhanced with 6KV surge protection Effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position

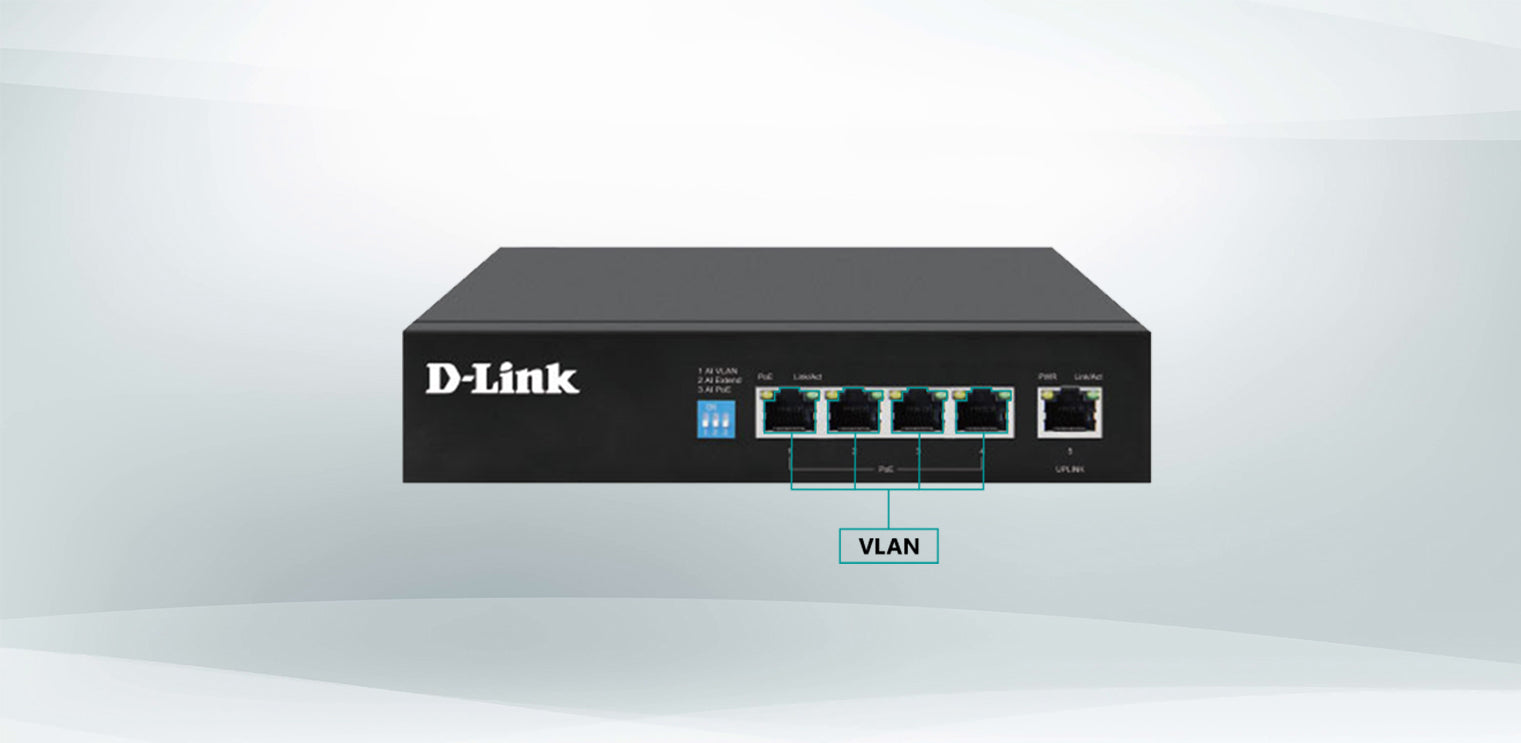

    Enhanced with VLAN Function

    With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance

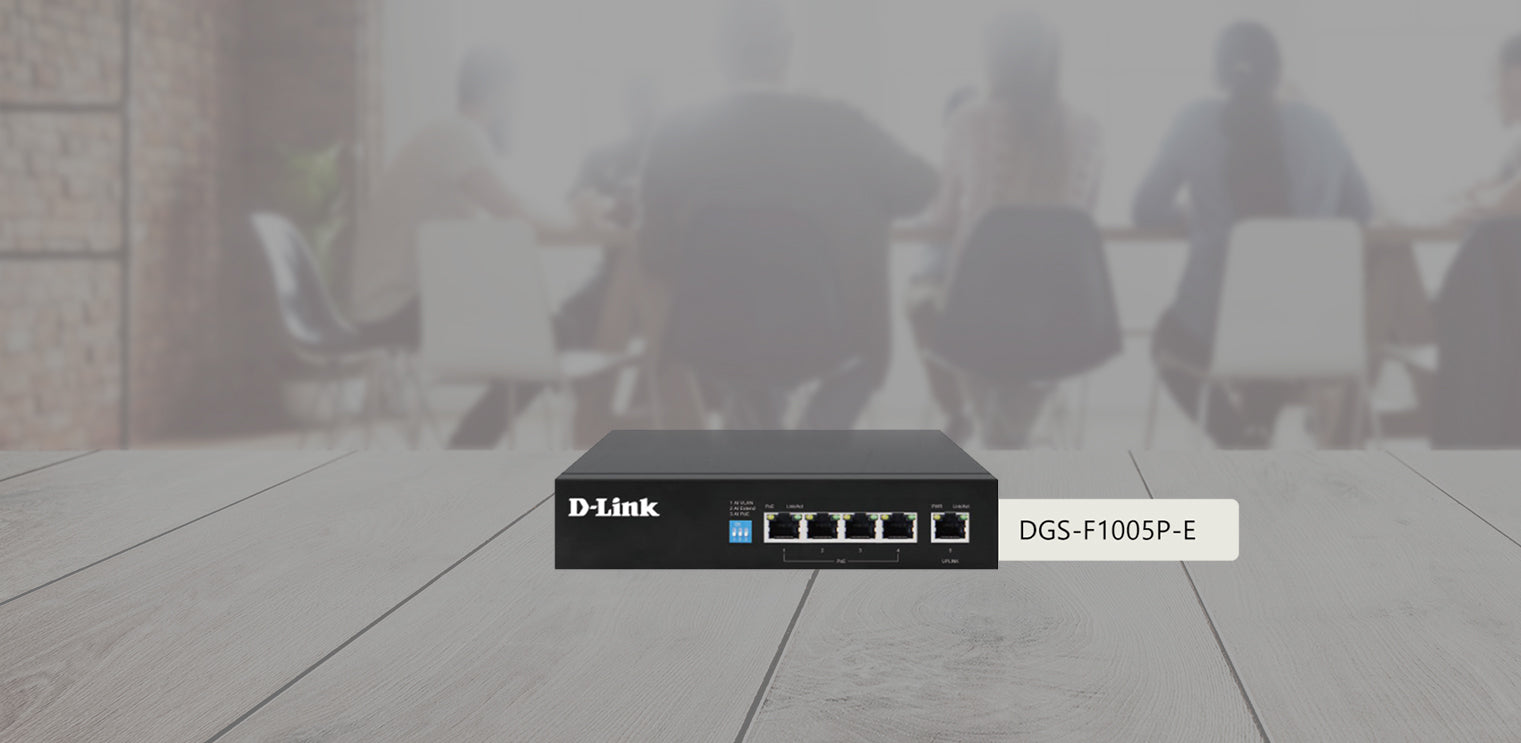

    Robust deployment for all occasion

    Downloads Datasheet

    Tech Specifications

    Hardware
    Interfaces

    • 4 10/100/1000 BASE-T ports

    • 1 10/100/1000 BASE-T Uplink port

    Media Interface Exchange

    • Auto MDI/MDI-X adjustment on all ports

    Power Budget

    •60 W (30 W max. per PoE port)

    Power

    •✓

    • Internal power PSU: 60W

    Wireless
    Wireless
    Standards

    • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

    • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

    • ANSI/IEEE 802.3 NWay auto-negotiation

    • IEEE 802.3x ow control

    Data Transfer Rates

    • Fast Ethernet

    •100 Mbps

    •Gigabit Ethernet

    • 1000 Mbps

    PoE Standards

    •IEEE 802.3af

    •IEEE 802.3at

    PoE-Capable Ports

    •Ports 1 to 4

    General
    Lighting Protection

    • 6KV

    Switching Fabric

    •10 Gbps

    Transmission Method

    •Adopt Store-and-forward

    Packet Filtering / Forwarding Rates

    • 10M port maximum 14800pps

    • 100M port maximum 148800pps

    • 1000M port maximum 1488000pps

    Link/Activity

    •✓

    Temperature

    • Operating: 0 to 40 ˚C (32 to 104 ˚F)

    Humidity

    • Operating: 0% to 95% RH non-condensing

    • Storage: 0% to 95% RH non-condensing

    EMI/EMC

    •CE

    •FCC

    Physical
    Size

    • Desktop

    Weight

    • 1 kg

    Dimensions

    • 190 x 131 x 40 mm
