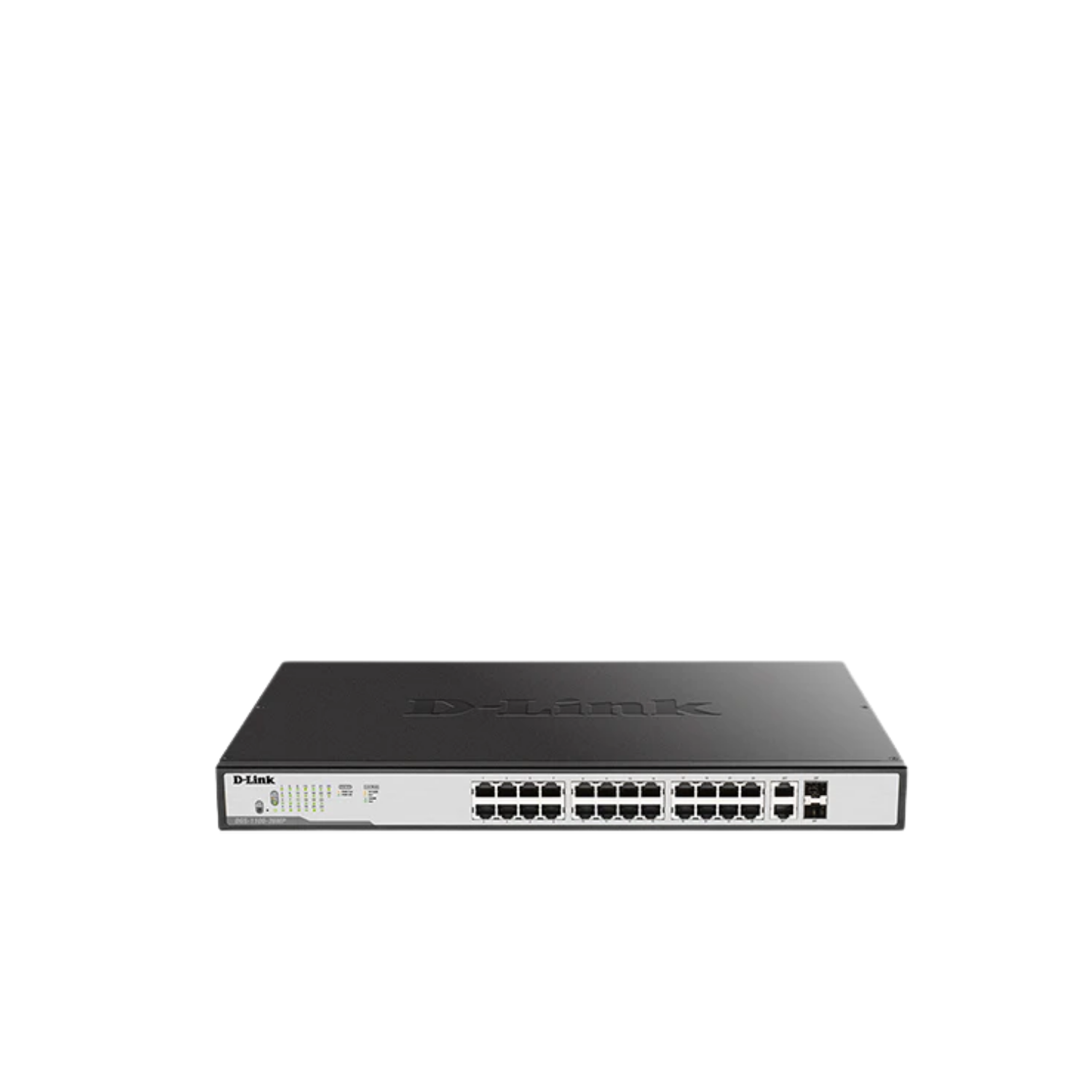

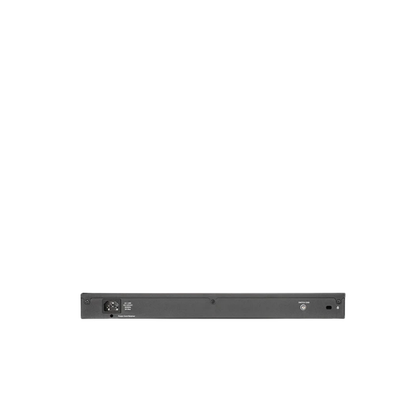

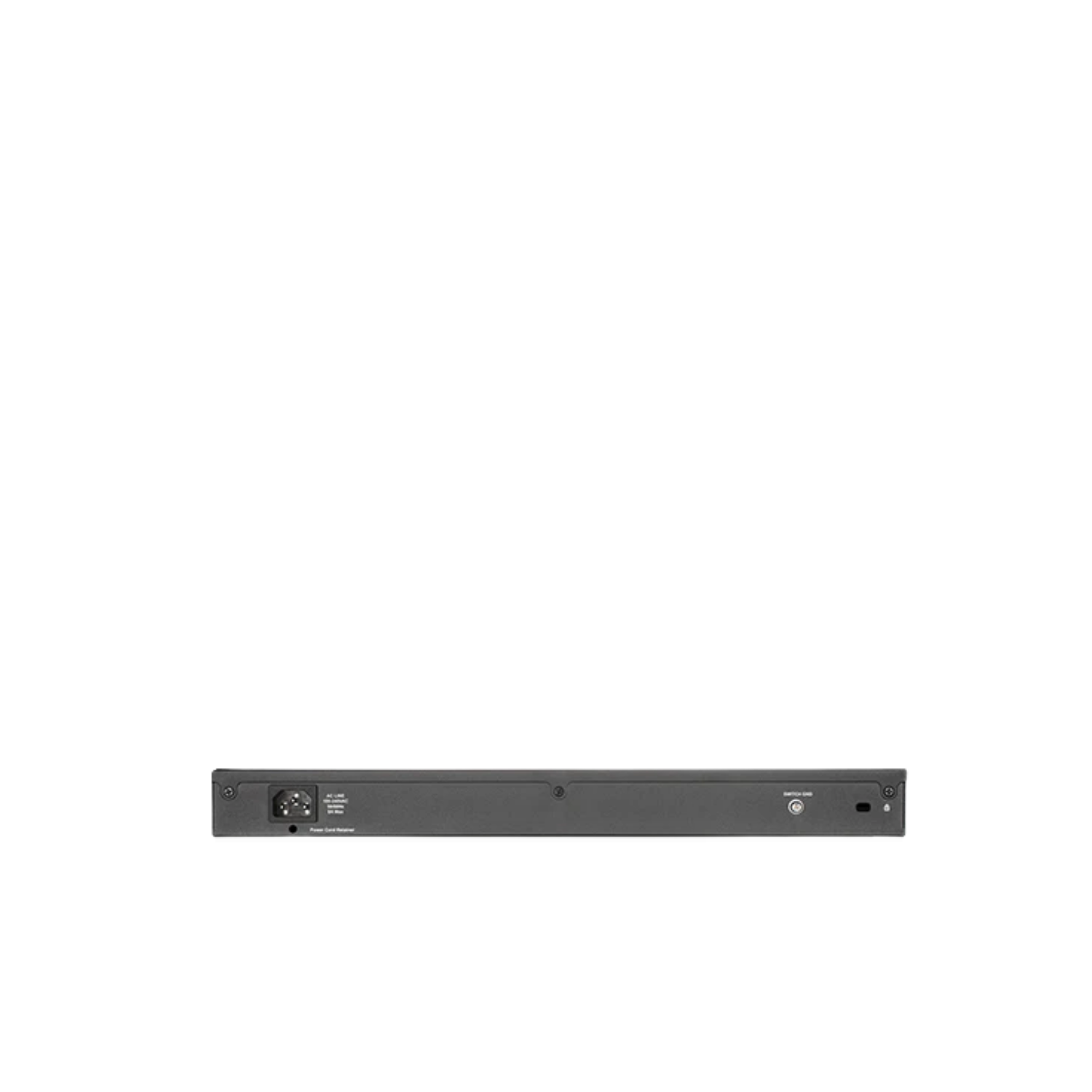

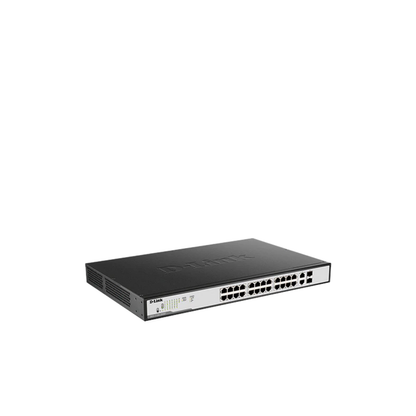

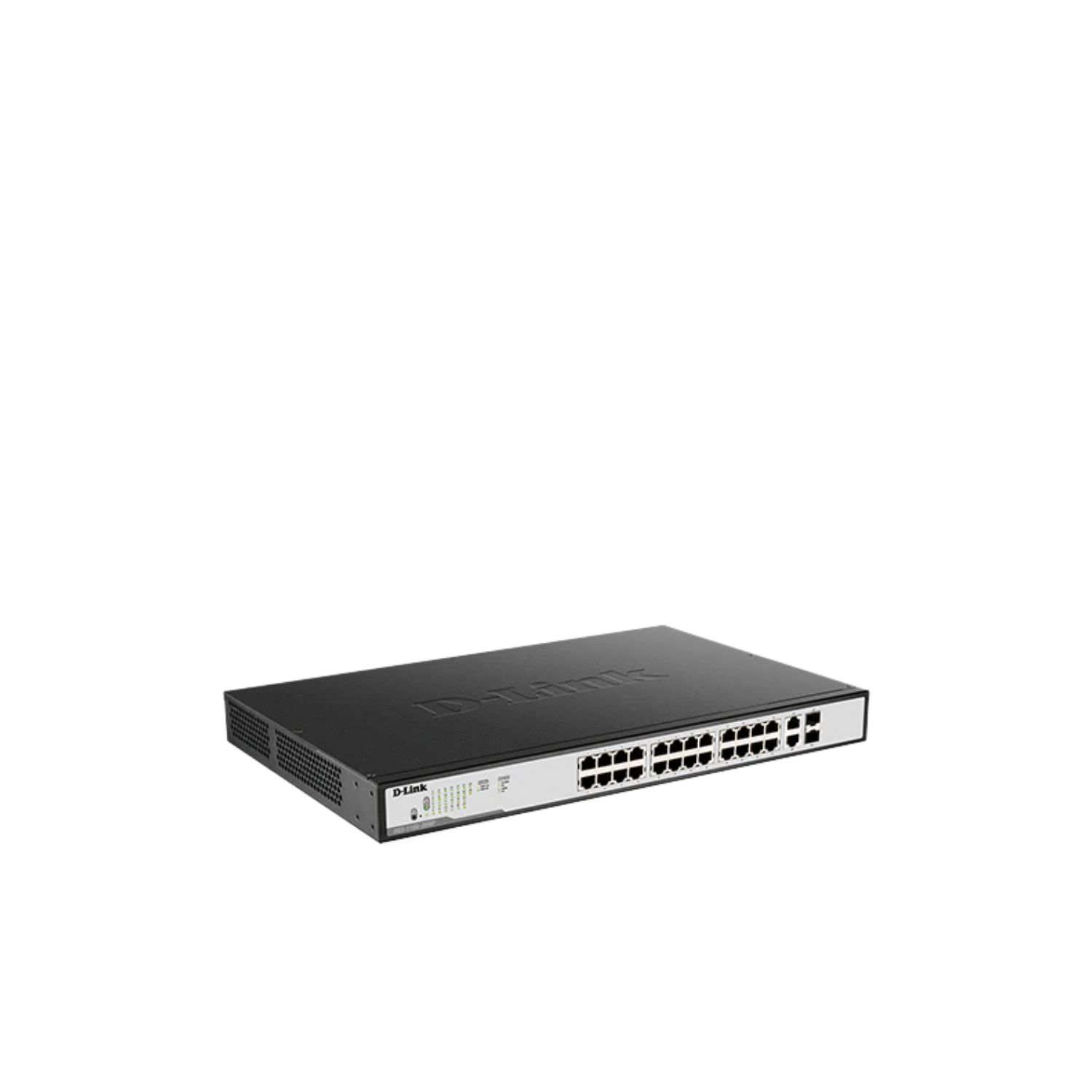

26-Port PoE Gigabit Smart Managed Switch

26-Port PoE Gigabit Smart Managed Switch

DGS-1100-26MPV2

Product variants

• 24 x 10/100/1000BASE-T PoE ports
• 2 x Gigabit RJ45/SFP Combo ports
• High-capacity 370W PoE power budget
• Supports IEEE 802.3at/bt
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management

Share:

Share

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

Simple. Easy. Smart.

Web UI

Easy to use web interface to access management features

Power over Ethernet

Convenient installation of PoE devices in remote areas

Surveillance Mode Interface

Get a snapshot of your security topology in an instant.

Advanced Security Features

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Simplify Network Management

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Learn More About D-View 7

Simplify Network Management

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

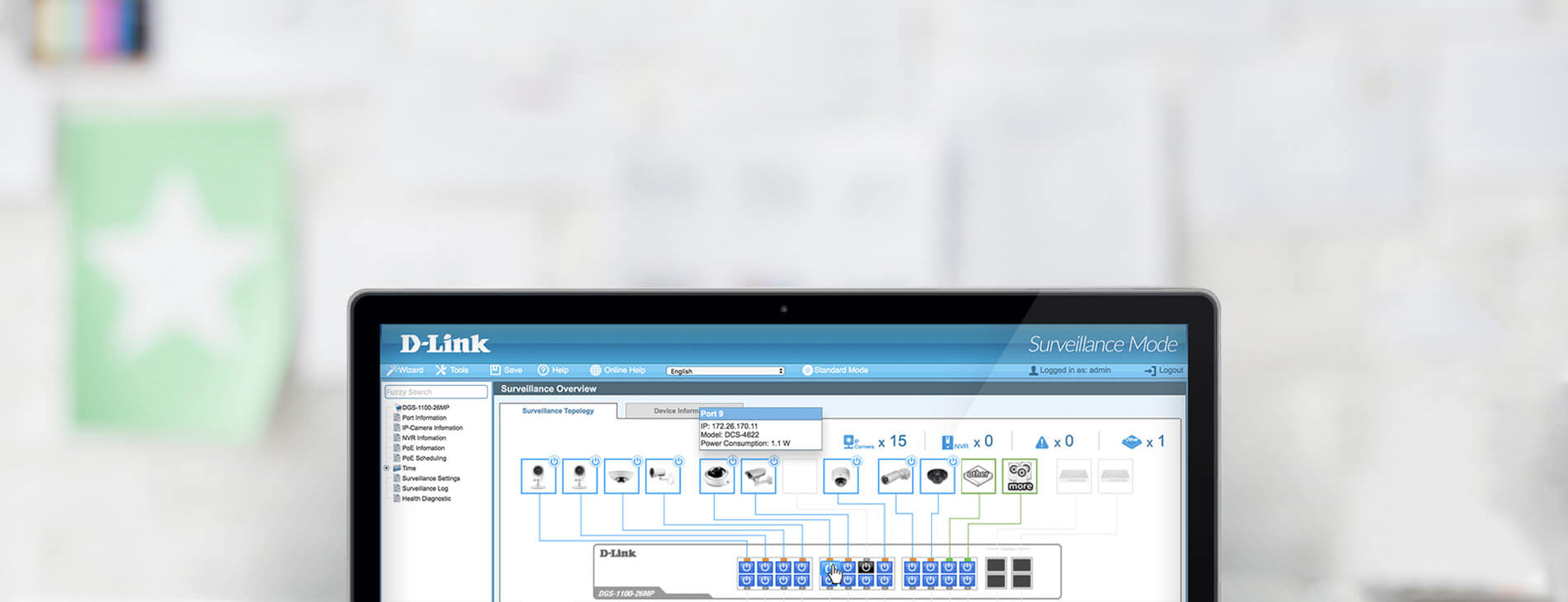

Surveillance Mode

Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

Downloads Datasheets M2M Solution Guide

Tech Specifications

Hardware

1000Base-T PoE Interface

24

Auto MDI/MDIX

Yes

10/100/1000BASE-T PoE ports

24

10/100/1000BASE-T/SFP Combo ports

2

Switch Capacity

52 Gbps

Max. Packet Forwarding Rate

38.69 Mpps

Comply with RoHS 6

Yes

Energy Efficiency Ethernet (EEE)

Yes

Power Saving By Link Status

Yes

Power Saving By LED Shut-Off

Yes

Power Saving By Port Shut-Off

Yes

Power Saving By System Hibernation

Yes

Time-based PoE

Yes

Maximum PoE Budget

370W

PoE Budget

370 W (30 W max. per PoE port)

MAC Address Table Size

8K

802.3x Flow Control

Yes

Head-of-line (HOL) Blocking Prevention

Yes

802.1D Spanning Tree (STP)

Yes

802.1w Rapid Spanning Tree (RSTP)

Yes

802.1AX Link Aggregation

Yes

802.3ad Link Aggregation

Yes

Link Aggregation Group Per Device

13

Max Port Per Link Aggregation Group

8

Port Mirroring

Yes

Jumbo Frame

921Byte

Loopback Detection (LBD)

Yes

IGMP Snooping

Yes

Max IGMP Snooping Groups

64

802.1Q VLAN

Yes

Port-based VLAN

Yes

Voice VLAN

Yes

Auto Surveillance VLAN

Yes(2.0)

Asymmetric VLAN

Yes

Provider Backbone Bridge (PBB)

Yes

Number of Queue

8

Class of Service (CoS)

Yes

Time based QoS

Yes

Strict Priority Queue (SPQ)

Yes

Weighted Round Robin (WRR)

Yes

Deficit Round Robin (DRR)

Yes

Port-based Bandwidth Control

Yes

SSL

Yes

Broadcast/Multicast/Unicast Storm Control

Yes

Traffic Segmentation

Yes

D-Link Safeguard Engine

Yes

DoS Attack Prevention

Yes

Cable Diagnostics

Yes

Simple Network Time Protocol (SNTP)

Yes

Web-based GUI

Yes

SNMP

Yes

SNMP Trap

Yes

TFTP Client

Yes

System Log

Yes

LLDP

Yes

D-Link Discover Protocol (DDP)

Yes

DHCP/BootP Client

Yes

Dual Images

Yes

Ping

Yes

D-Link Network Assistant

Yes

Smart Wizard

Yes

Store-and-Forwarding

Yes

Physical

Dimension

440 x 285 x 43 mm

Weight

3.83Kg

Operation Temperature

-10-55°C

Storage Temperature

-20-70°C

Operation Humidity

0%-95% RH

Storage Humidity

0%-95% RH

Operating Altitude

2000 m

Maximum Power Consumption

434.4 W (PoE on)

23.58 W (PoE off)

Maximum Heat Dissipation

1470.46 BTU/hr

Acoustic

53.7 dB(A)

MTBF

269,137 hours

Power Input

AC: 100-240V

CPU Speed

400MHz

DRAM Size

128MB DDR3

Flash Memory Size

32MB

Packet Buffer Size

4.1MBytes

FAN

Fan *2
