Economical, Plug-and-play Networking Switch

The DES-1005C 10/100 Mbps Unmanaged Switch is an economical, plug-and-play networking switch for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It gives you five 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Conserve Energy

The DES-1005C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation

The DES-1005C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Tech Specifications

Hardware
Device Interfaces

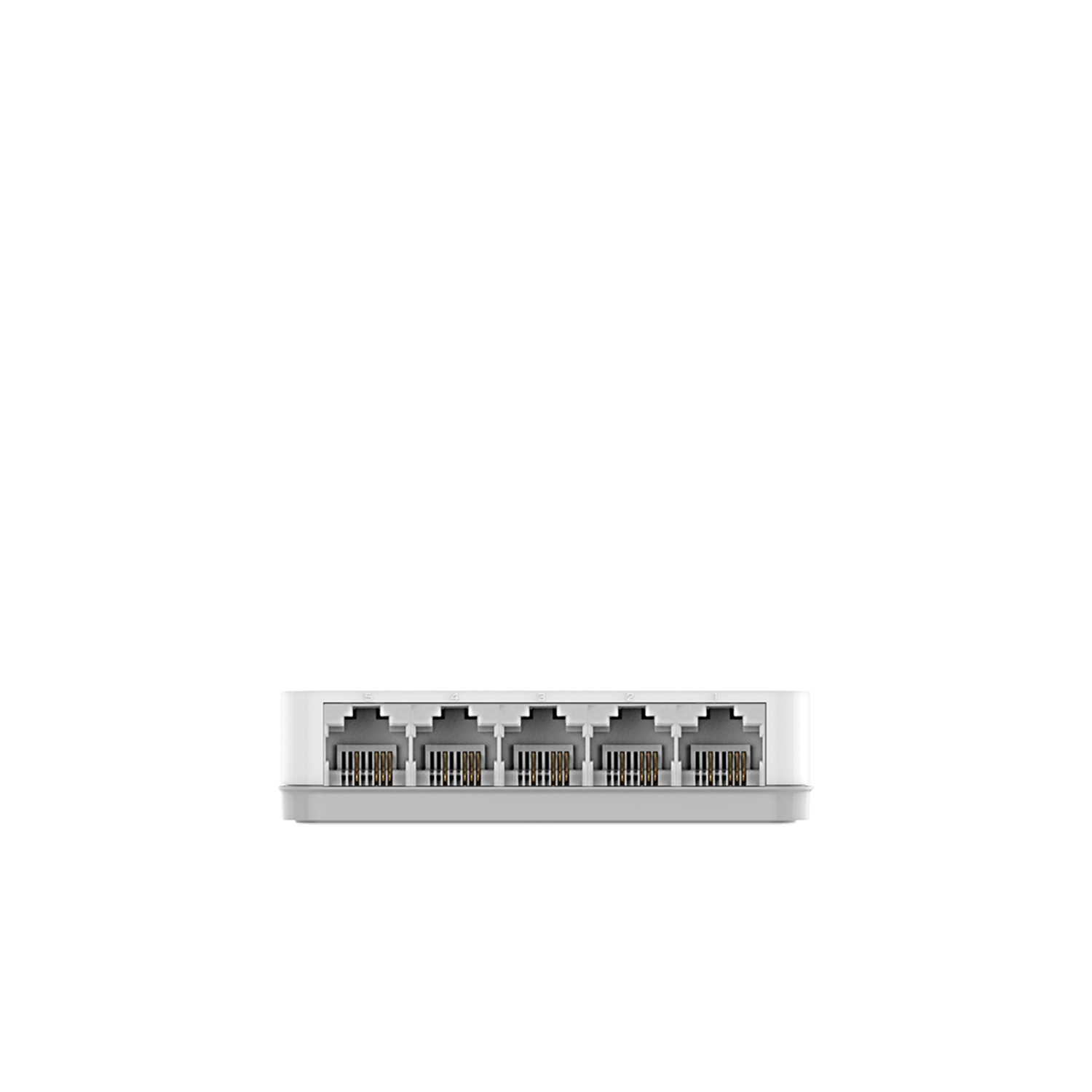

• Five 10/100 Mbps LAN ports
• IEEE 802.3u 100BASE-TX
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Switching Capacity

• 1 Gbps switching fabric

Data Transfer Rates

Ethernet:
• 10 Mbps (half duplex)
• 20 Mbps (full duplex)
Fast Ethernet:
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)

Transmission Method

• Store-and-forward

General
MAC Address Table Size

• 2,000

RAM Buffer

• 96 KB per device

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port

Physical
LED Indicators

• Per port: Link/Activity/Speed
• Per device: Power

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

Dimensions

• 88 x 48 x 21.45 mm (3.46 x 1.89 x 0.84 inches)

Weight

• 43.4 grams (1.6 ounces)

Power

• DC 5 V / 0.55 A

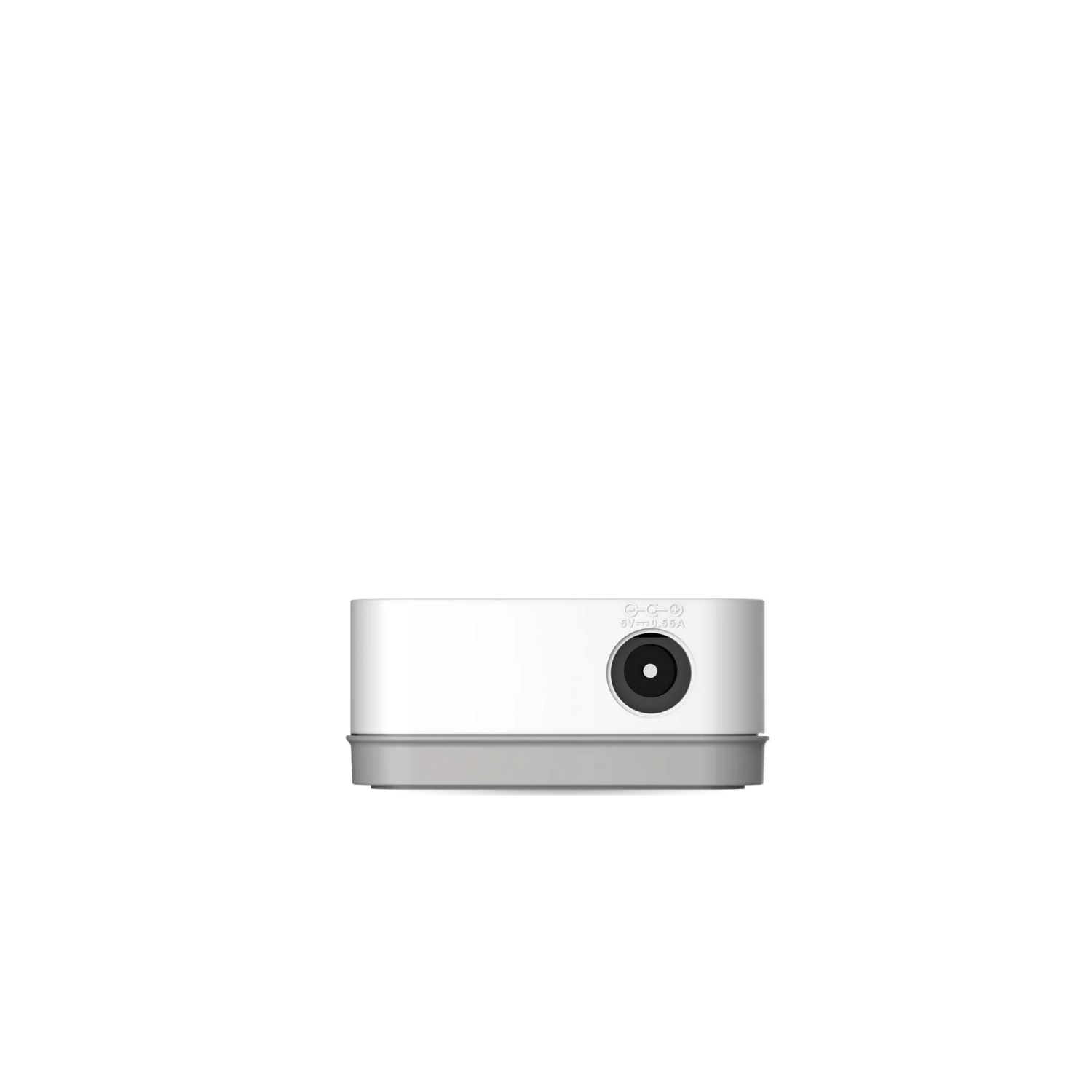

• DC jack: Located on side

Power Consumption

• Power On (Standby): 0.4 watts
• Maximum: 0.784 watts

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -40 to 70 °C (-40 to 158 °F)
