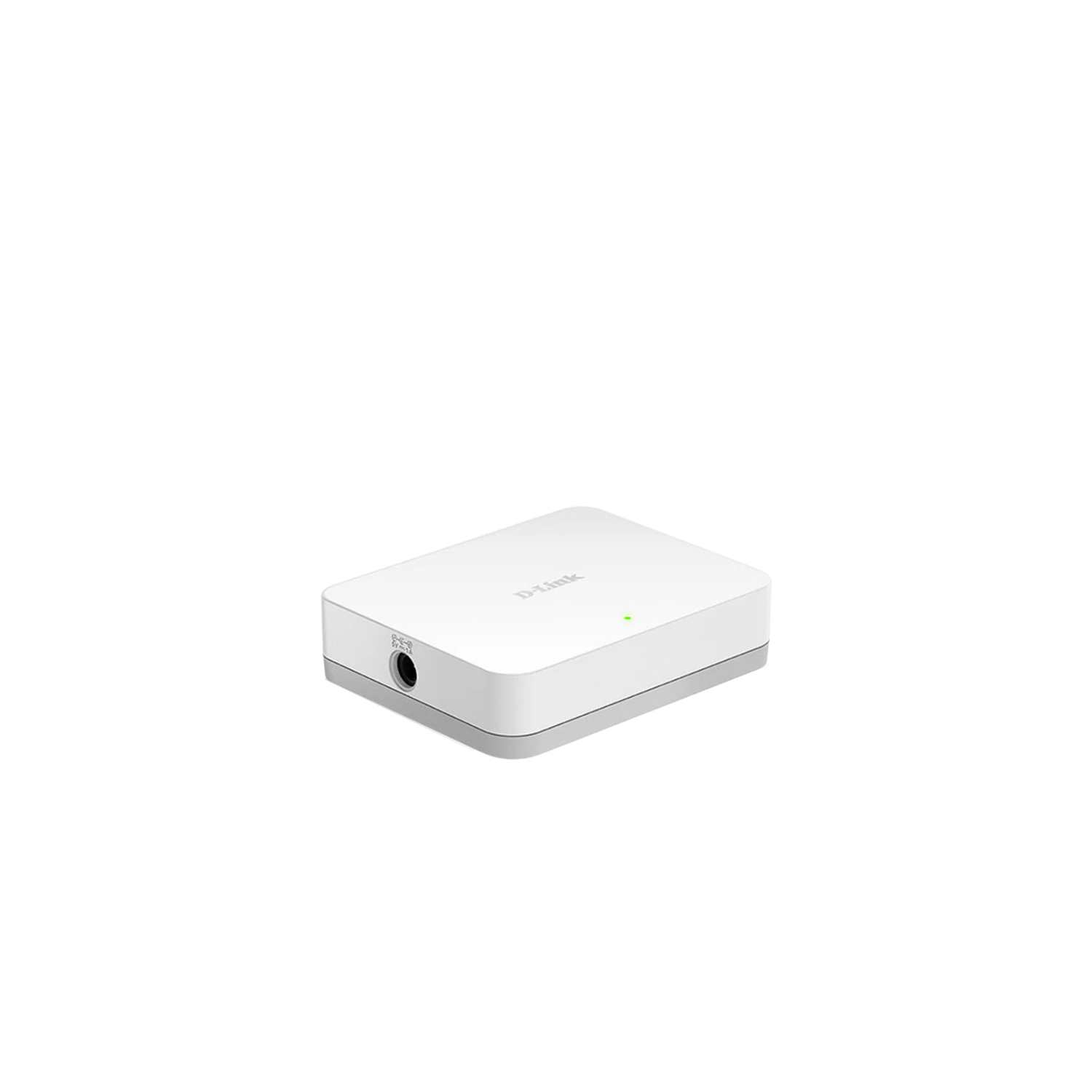

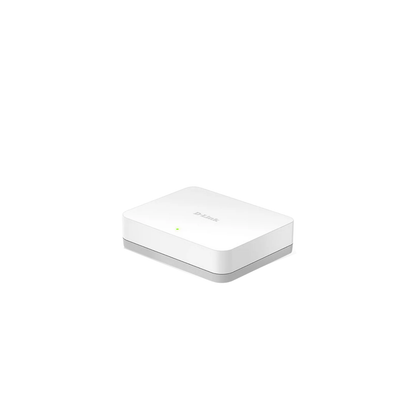

5-Port Gigabit Desktop Switch

Device Interfaces

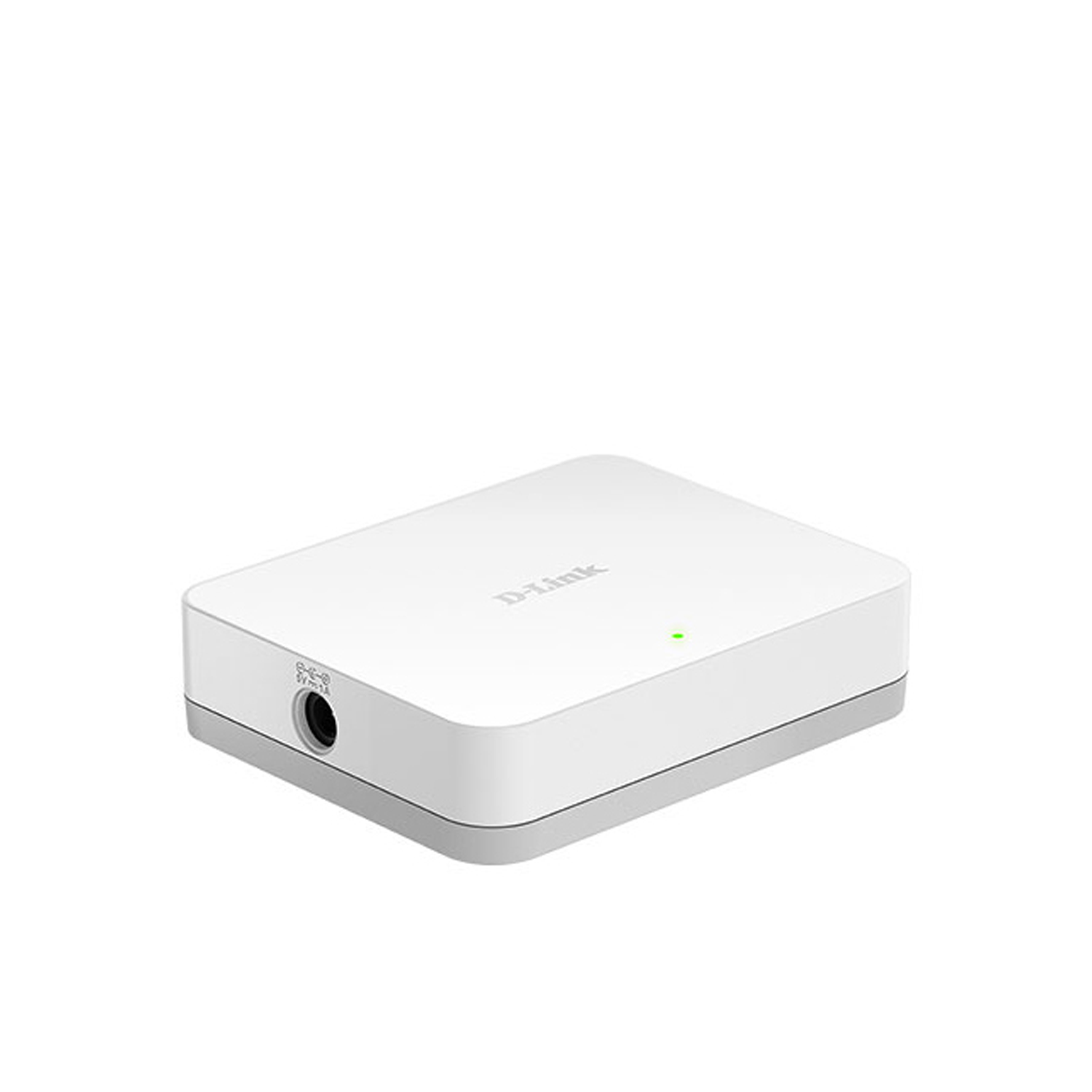

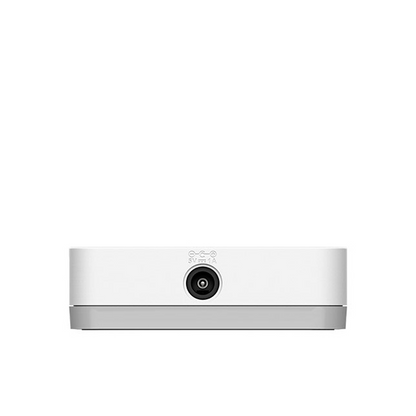

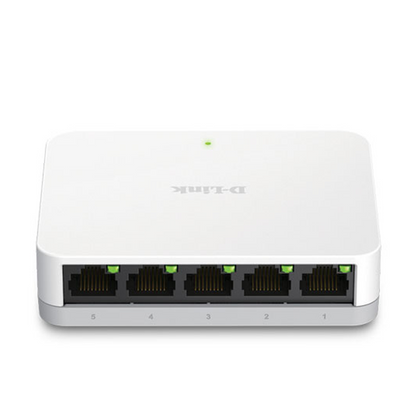

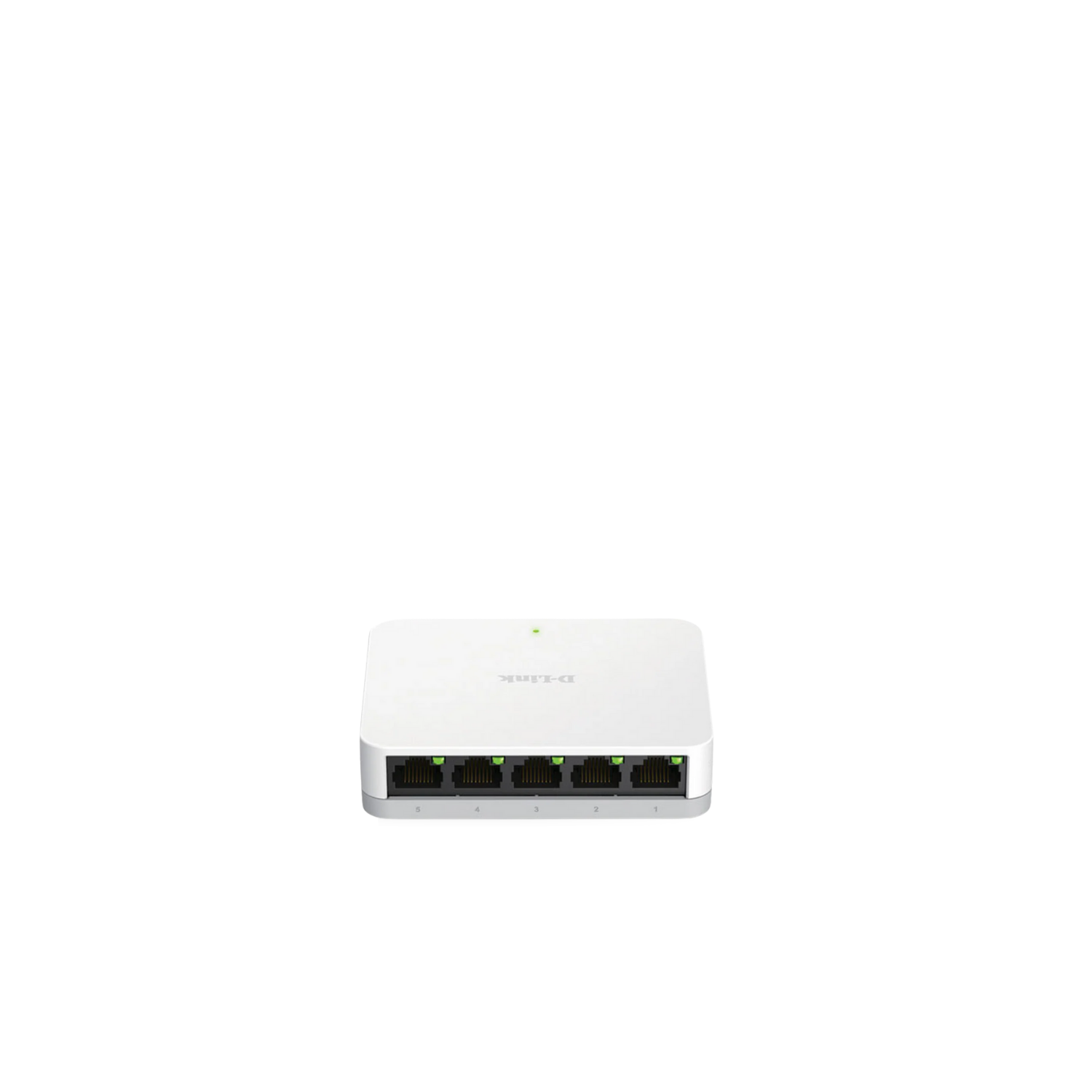

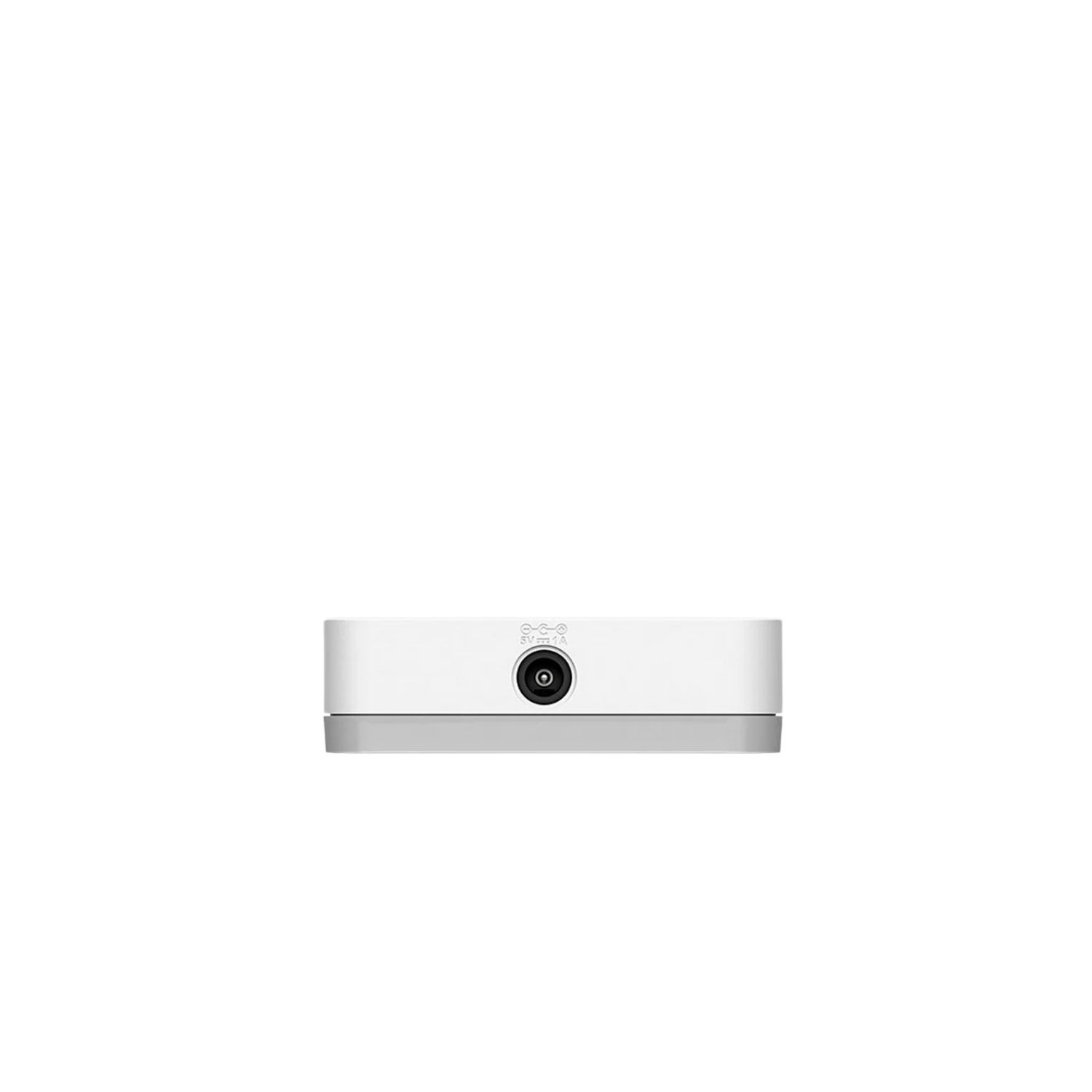

•5 x Gigabit Ethernet LAN ports, 1 x power connector

Power

• 5 V/1 A Power Adapter

Standards

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Advanced Features

• Green Ethernet
• 10 Gbps switching fabric
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Supports 9KB Jumbo Frame
• Supports IEEE 802.1p QoS

Data Transfer Rates Ethernet:
• 10 Mbps (half duplex)
• 20 Mbps (full duplex)
Fast Ethernet:
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)
Gigabit Ethernet:
• 2000 Mbps (full duplex)

Transmission Method

•Store-and-forward

MAC Address Table

•2K

MAC Address Learning

•Automatic Update

Packet Filtering/Forwarding
Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

Packet Buffer

•128 KB

Media Interface Exchange

• Auto MDI/MDIX for all ports

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)

• Storage: -10 to 70 °C (14 to 158 °F)

Humidity

• Operating: 10% to 90% non-condensing

• Storage: 5% to 90% non-condensing

MTBF

• 1,479,725 hours

Certifications

• CE class B
• FCC class B
• ICES-003 Class B
• VCCI class B
• BSMI

• LVD
• RCM
• Anatel
• KCC

LED Indicators

• Per port: Link/Activity

• Per device: Power

Dimensions

• 94 x 75 x 22.45 mm

Weight

• 75 g

Power Consumption

• Maximum AC input: 2.87 W

• Standby AC input: 0.47 W
