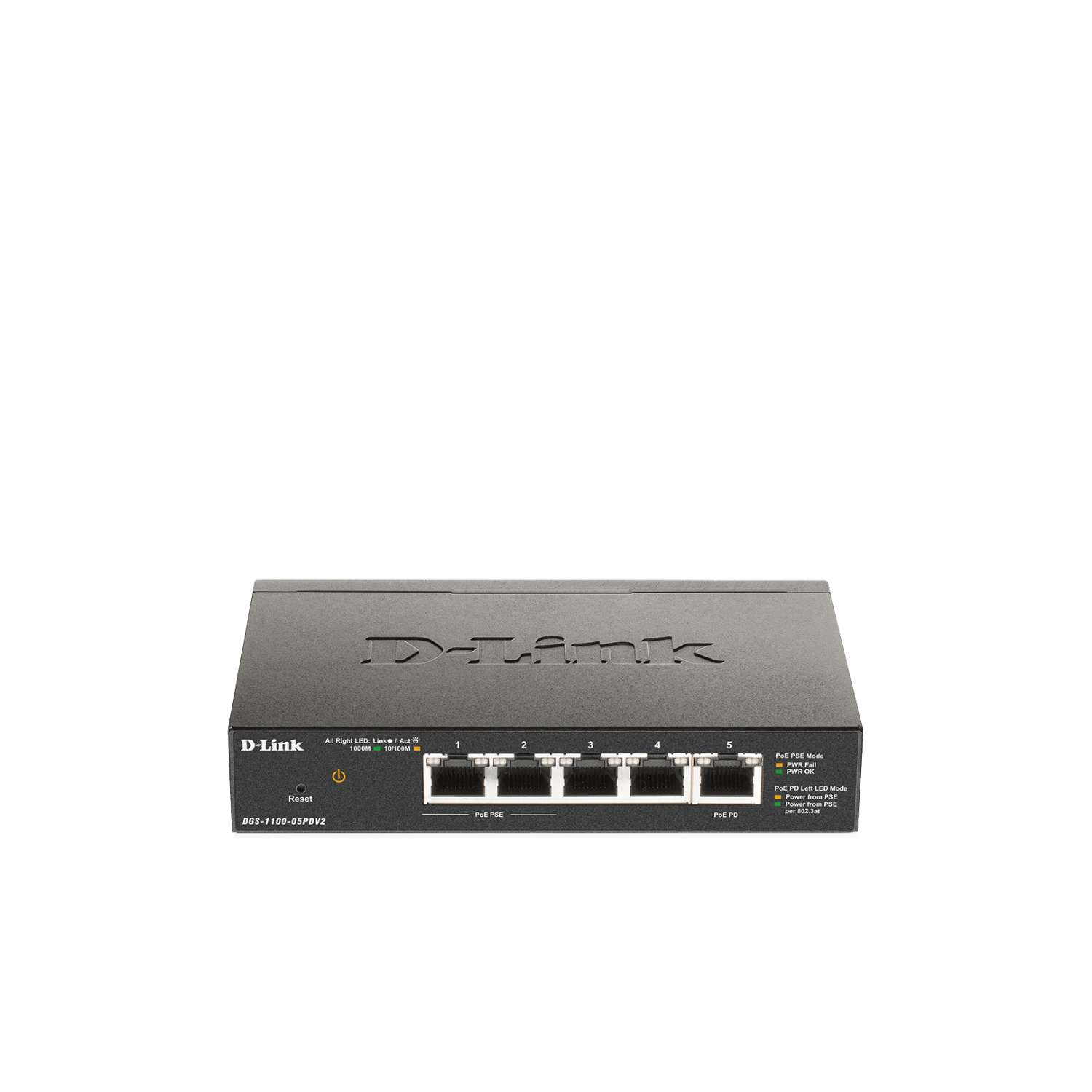

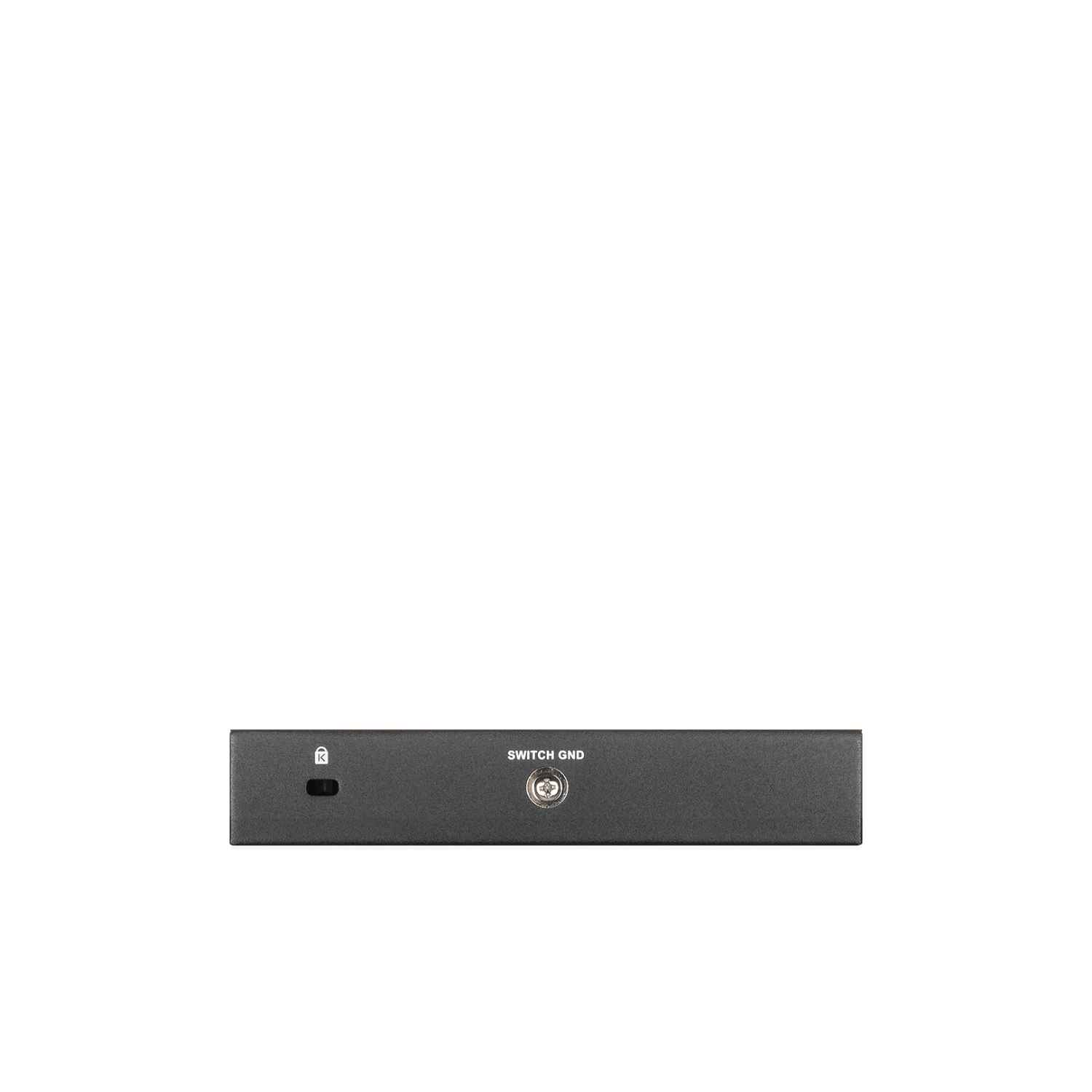

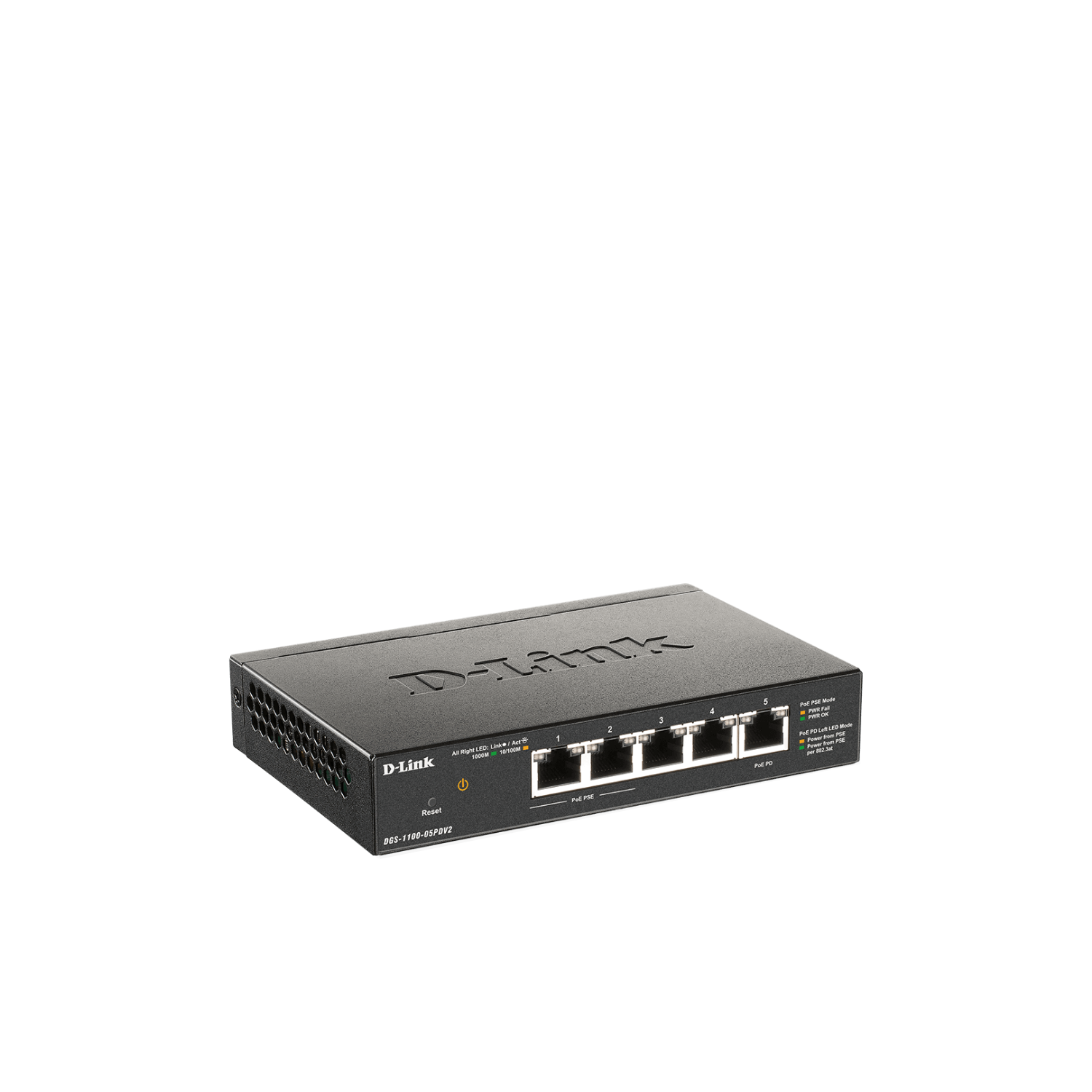

5-port Gigabit Smart Managed PoE Switch and PoE Extender Fanless Layer 2
5-port Gigabit Smart Managed PoE Switch and PoE Extender Fanless Layer 2
5-port Gigabit Smart Managed PoE Switch and PoE Extender Fanless Layer 2

5-port Gigabit Smart Managed PoE Switch and PoE Extender Fanless Layer 2

SKU

• 2 x 10/100/1000BASE-T PoE ports
• 3 x 10/100/1000BASE-T ports
• Powered by IEEE 802.3af/at PoE via PD port 5
• Compact design for convenient placement
• Fanless design for silent operation
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

Simple. Easy. Smart.

Icon

Web UI

Easy to use web interface to access management features

Icon

Power over Ethernet

Convenient installation of PoE devices in remote areas

Icon

Management Software

Supports DNA and D-View for remote setup and management

Advanced Security Features

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Advanced Security Features

Simplify Network Management

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Learn More About D-View

Simplify Network Management

Simplify Network Management

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.


Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors

Simplify Network Management

Powered by PoE

CCTV / IP Cameras / VoIP phones / Wi-Fi access points / industrial IoT can be powered by IEEE 802.3af/at Power over Ethernet through a PoE switch or injector, allowing for more flexible installation in remote areas with no readily available power outlets.

Green Technology

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

Downloads Datasheets M2M Solution Guide

Tech Specifications

Hardware
Maximum Power Consumption
  • 23.922W (PoE on) 2.322W (PoE off)
Power Input
  • 802.3af/at PoE input only
Packet Buffer Size
  • 1 MbitsFAN• Fanless
Maximum PoE Budget
  • 18W with 802.3at / 8W with 802.3af input power
1000Base-T Interface
  • 3 ( with 1 PD Port)
1000Base-T PoE Interface
  • 2
Auto MDI/MDIX
  • Yes
Switching Capacity
  • 10 Gbps
Max. Packet Forwarding Rate
  • 7.4 Mpps
Physical
Dimension
  • 150 × 97 × 28 mm
Weight
  • 0.38kg
Operation Temperature
  • 0-40°C
Storage Temperature
  • -40 - 70 ˚C
Operation Humidity
  • 0%-90% RH
Storage Humidity
  • 0%-95% RH
Operating Altitude
  • 2000m
