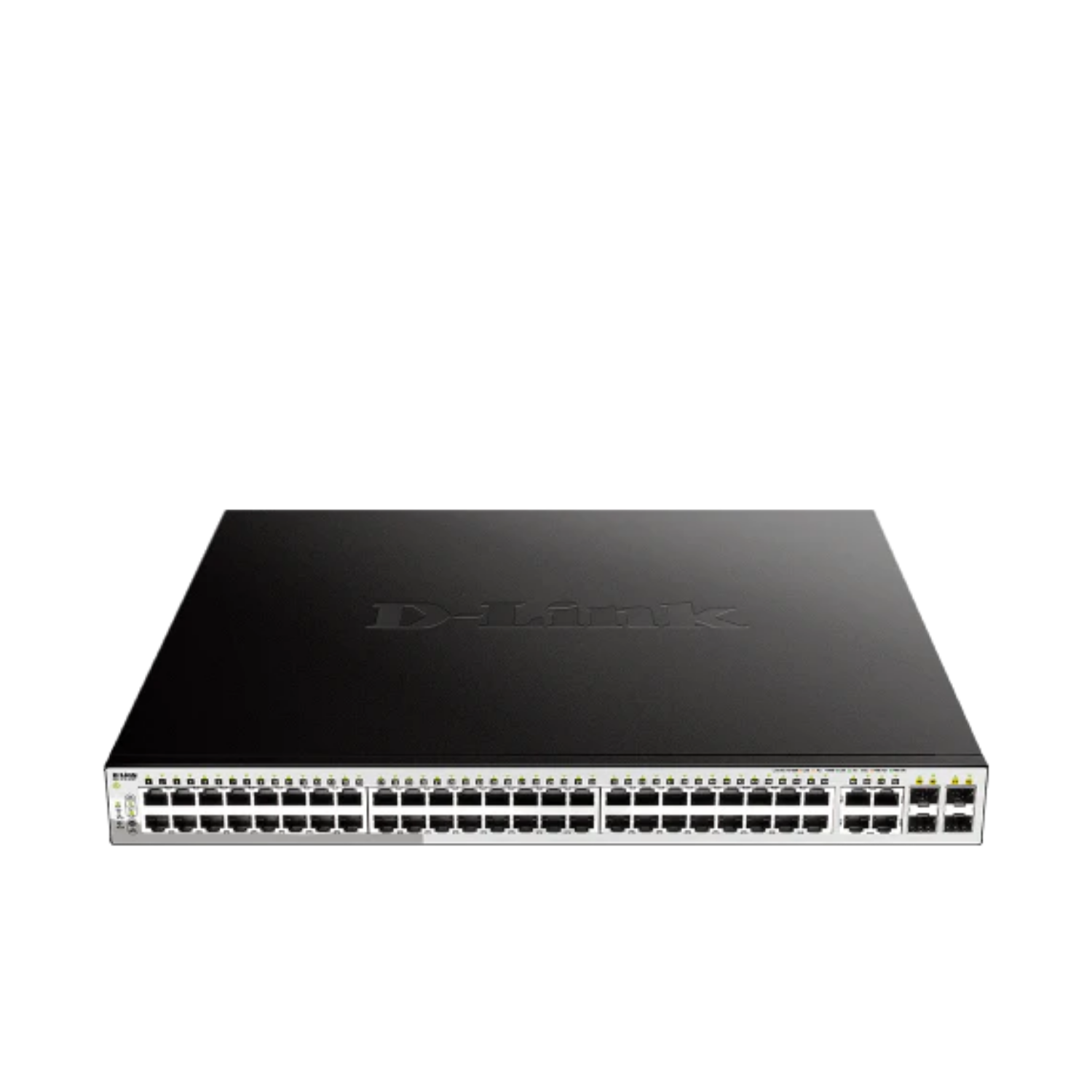

52-Port Gigabit Smart Managed PoE Switch
52-Port Gigabit Smart Managed PoE Switch
52-Port Gigabit Smart Managed PoE Switch

52-Port Gigabit Smart Managed PoE Switch

SKU

• 48 x 10/100/1000BASE-T PoE ports
• 4 x Gigabit GbE/SFP combo ports
• Advanced L2 switching and security features
• L2+ Static Routing
• Optional “standard mode” or “surveillance mode” management user interface
• 370W PoE budget

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

Powerful, yet Cost-Efficient

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.

The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.

PoE Support

Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.

They also support time-based PoE, which allows administrators to set a time window that determines when each port’s PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.

PoE Support
Automatic Configuration

Automatic Configuration

The DGS-1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.

Comprehensive Security Features

Comprehensive Security Features

D-Link's innovative Safeguard Engine helps protect switches against traffic flooding and virus attacks. 802.11X port-based authentication allows the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network.

Extensive Management and Layer 2 Features

Extensive Management and Layer 2 Features

The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.

The Series also supports advanced features such as static routing, which allows for communication between different user groups in different VLAN segments in a network. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.

Downloads Datasheets M2M Solution Guide

Tech Specifications

Hardware
Switching Capacity
  • 104 Gbps
Transmission Method
  • Store-and-forward
MAC Address Table
  • 16K entries
Static MAC Addresses
  • 256 entries
Maximum 64 Byte Packet Forwarding Rate
  • 77.4 Mpps
Packet Buffer Memory
  • 12 Mbits
CPU Memory
  • DDR3 128 MB
Flash Memory
  • 32 MB
PoE Capable Ports
  • Ports 1 to 48
Power Budget
  • 370 W
General
Interfaces
  • 48 10/100/1000BASE-T PoE
  • 4 100/1000 Mbps GbE/SFP combo ports
Port Standards
  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
  • IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • IEEE 802.3x Flow Control
  • IEEE 802.3af/at compliance (for PoE ports)
Network Cables
  • UTP Cat. 5, Cat. 5e (100 m max.)
Duplex Mode
  • Full/Half-duplex for 10/100 Mbps
  • Full-duplex for 1000 Mbps
Media Interface Exchange
  • Auto MDI/MDIX adjustment for all twisted-pair ports
Certifications
  • EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CQC (only for specific models)
  • Safety: CB, UL, BSMI, LVD, CQC (only for specific models)
MTBF
  • 236,406 hours
L2 Features
  • MAC Address Table
    • 8K entries
    • 16K entries (DGS-1210-52/52MP only)
  • IGMP Snooping
    • IGMP v1/v2 Snooping
    • IGMP v3 awareness
    • Supports 256 IGMP groups
    • Supports at least 64 static multicast addresses
    • IGMP per VLAN
    • Auto IGMP
    • Supports IGMP Snooping Querier
  • Loopback Detection
  • 802.3ad Link Aggregation:
    • DGS-1210-10/10P/10MP: Supports maximum 4 groups per device and 8 ports per group
    • DGS-1210-20/26/28/28P/28MP: Supports maximum 8 groups per device and 8 ports per group
    • DGS-1210-52/52MP: Supports max 16 groups per device and 8 ports per group
  • LLDP
  • LLDP-MED
  • Jumbo Frame
    • Up to 10,000 bytes
  • Spanning Tree Protocol
    • 802.1D STP
    • 802.1W RSTP
    • 802.1s MSTP
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Port Mirroring
    • One-to-One
    • Many-to-One
    • Supports Mirroring for Tx/Rx/Both
  • Multicast Filtering
    • Forwards all unregistered groups
    • Filters all unregistered groups
  • Configurable MDI/MDIX
    • MLD snooping v1/v2 (256 groups)
VLAN
  • 802.1Q
  • VLAN Group
    • Max. 256 static VLAN groups
  • Configurable VID from 1 - 4094
  • Asymmetric VLAN
  • Auto Voice VLAN
    • Max. 10 user-defined OUI
    • Max. 8 default OUI
  • Auto Surveillance VLAN
Quality of Service (QoS)
  • 802.1p Quality of Service
  • 8 queues per port
  • Queue Handling
    • Strict
    • Weighted Round Robin (WRR)
  • Bandwidth Control
    • Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)
  • QoS based on:
    • 802.1p priority queues
    • DSCP
    • MAC address
    • EtherType
    • IP address
    • Protocol type
    • ToS
    • IP preference
    • IPv6 Traffic Class
    • TCP/UDP port
L3 Features
  • IP interface
    • Supports 4 interfaces
  • IPv6 Neighbor Discovery (ND)
  • Static routing
    • 124 IPv4 static route entries
    • 50 IPv6 static route entries
Access Control List (ACL)
  • Max. 50 access lists
  • Max. 768 rules shared by IPv4, MAC, and IPv6
  • Each rule can only be associated with a single port
  • ACL based on
    • MAC address
    • 802.1p priority mask
    • VID mask
    • Source/destination MAC address mask
    • EtherType mask
  • IP address
    • Source/destination IP address mask
    • DSCP mask
    • Protocol type mask
    • TCP/UDP port number mask
  • IPv6 address
    • Source/destination IP address mask
    • DSCP mask
    • Protocol type mask
    • TCP/UDP port number mask
    • IPv6 traffic class mask
Security Features
  • Broadcast/Multicast/Unicast Storm Control
  • D-Link Safeguard Engine
  • Traffic segmentation
  • SSH v2
  • TLS v.1.3
  • DoS attack prevention
  • 802.1X Port-based Access Control
  • Port Security
    • Supports up to 64 MAC addresses per port
  • ARP Spoofing Prevention
    • Max. 127 entries
  • DHCP Server Screening
  • IP-MAC-Port Binding (Smart Binding)
    • ARP Inspection
    • Max. 256 entries
  • IPv4 Inspection
    • Max. 127 entries
  • IPv6 Inspection
    • Max. 63 entries
  • DHCP Snooping
    • Max. 512 entries
AAA
  • 802.1X Authentication
    • Supports local/RADIUS database
    • Supports port-based access control
    • Supports EAP, OTP, TLS, TTLS, PEAP
    • Max. 128 entries when using local database
    • IPv6 RADIUS server
    • Support MD5 authentication
OAM
  • Cable diagnostics
  • Factory reset
Management
  • Web-based GUI
  • D-Link Network Assistant Utility
  • Compact CLI
  • Telnet Server
  • TFTP Client
  • Configurable MDI/MDIX
  • SNMP
    • Supports v1/v2c/v3
  • SNMP Trap
  • Backup/upgrade firmware
  • Smart Wizard
  • Upload/download configuration file
  • BootP/DHCP Client
  • System Log
    • Max. 500 log entries
  • SNTP
  • ICMP v6
  • IPv4/v6 Dual Stack
  • DHCP Auto Configuration
  • Time setting
    • SNTP
  • RMONv1
  • Trusted host
  • Dual image
  • Dual configuration
Green V3.0 Technology
  • Power Saving by:
    • Link Status
    • Time-based PoE: PoE ports can be turned on/off by port or system through schedule
    • System hibernation
    • Port shut off
    • Cable length detection
MIBs
  • RFC1212 Concise MIB Definitions
  • RFC1213 MIBII
  • RFC1215 MIB Traps Convention
  • RFC1493 Bridge MIB
  • RFC1157, RFC2573, RFC2575, RFC2576 SNMP MIB
  • RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418 SNMPv2 MIB
  • RFC271, RFC1757, RFC2819 RMON MIB
  • RFC2021 RMONv2 MIB
  • RFC1398, RFC1643, RFC1650, RFC2358, RFC2665 Ether-like MIB
  • RFC2674 802.1p MIB
  • Interface Group MIB
  • RFC2618 RADIUS Authentication Client MIB
  • RFC4022 MIB for TCP
  • RFC4113 MIB for UDP
  • RFC2389 MIB for Diffserv.
  • Private MIB
  • PoE MIB
  • DDP MIB
  • LLDP-MED MIB
RFC Standards
  • RFC791 IP
  • RFC768 UDP
  • RFC793 TCP
  • RFC792 ICMPv4
  • RFC2463, RFC4443 ICMPv6
  • RFC826 ARP
  • RFC1321, RFC2284, RFC2865, RFC2716, RFC3580 Extensible Authentication Protocol (EAP)
  • RFC2573 SNMP Applications
  • RFC2461, RFC4861 Neighbor Discovery for IPv6
  • RFC2462, RFC4862 IPv6 Stateless Address Autoconfiguration (SLAAC)
  • RFC2464 IPv6 over Ethernet and definition
  • RFC4291 IPv6 Addressing Architecture
  • RFC2893, RFC4213 IPv4/IPv6 dual stack function
Physical
Power Input
  • 100 to 240 V AC 50/60 Hz internal universal power supply
Maximum Power Consumption (PoE enabled)
  • 478.9 W/100 V • 454.1 W/240 V
Maximum Power Consumption (PoE disabled)
  • 54 W/100 V
  • 54.4 W/240 V
Standby Power Consumption
  • 32 W/100 V
  • 31.6 W/240 V
Acoustics
  • High speed: 52.4 dB(A)
  • Low speed: 47.6 dB(A)
Heat Dissipation
  • 1634.01 BTU/hr (100 V)
  • 1549.29 BTU/hr (240 V)
Fans
  • 3
Operating Temperature
  • -5 to 50°C (23 to 122°F)
Storage Temperature
  • -20 to 70°C (-4 to 158°F)
Operating Humidity
  • 0% to 95% relative humidity
Storage Humidity
  • 0% to 95% relative humidity
Dimensions (L x W x H)
  • 440 x 430 x 44 mm (17.32 x 16.93 x 1.73 in)
Weight
  • 6.26 kg (13.80 lbs)
