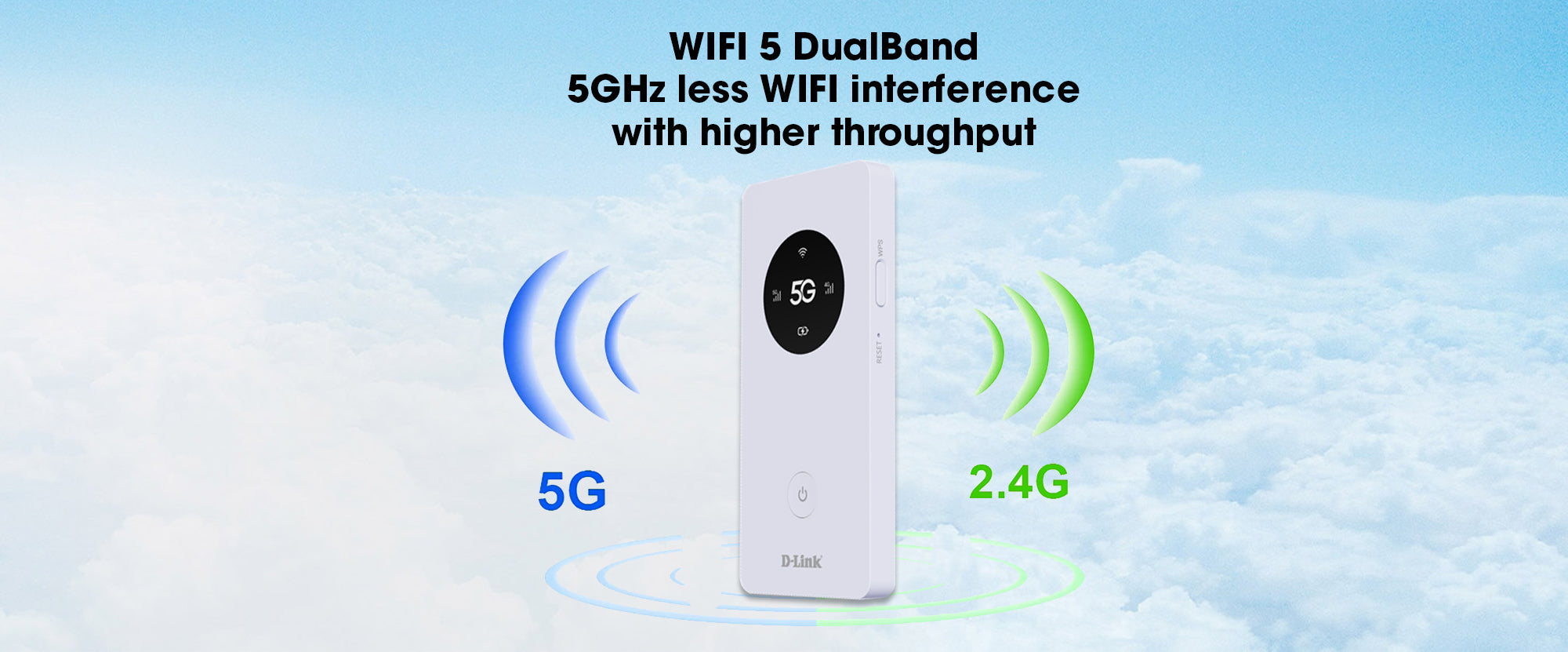

Wi-Fi 5 DualBand 5GHz

less Wi-Fi interference with higher throughput

Support Up to 32 Users

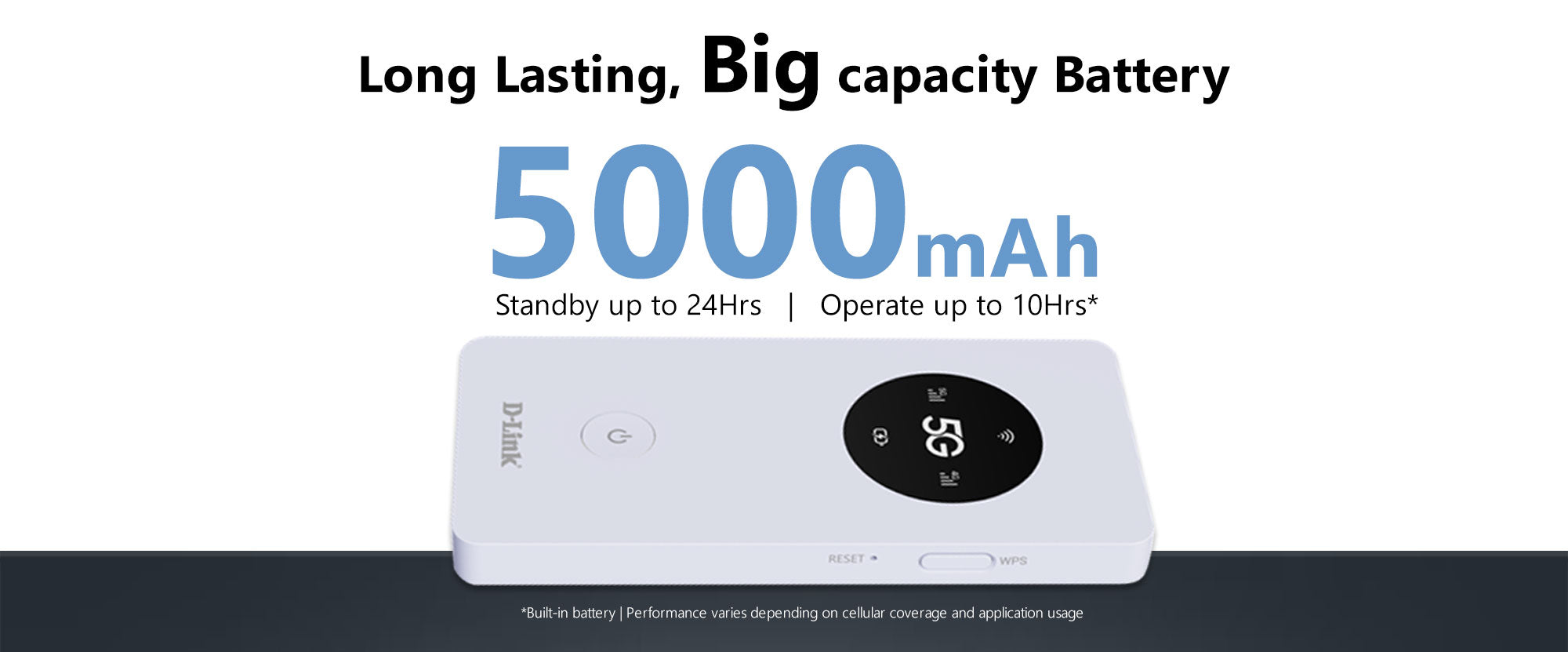

Long Lasting, Big capacity Battery

Support Nano SIM Card, Just Like Your Mobile Phone

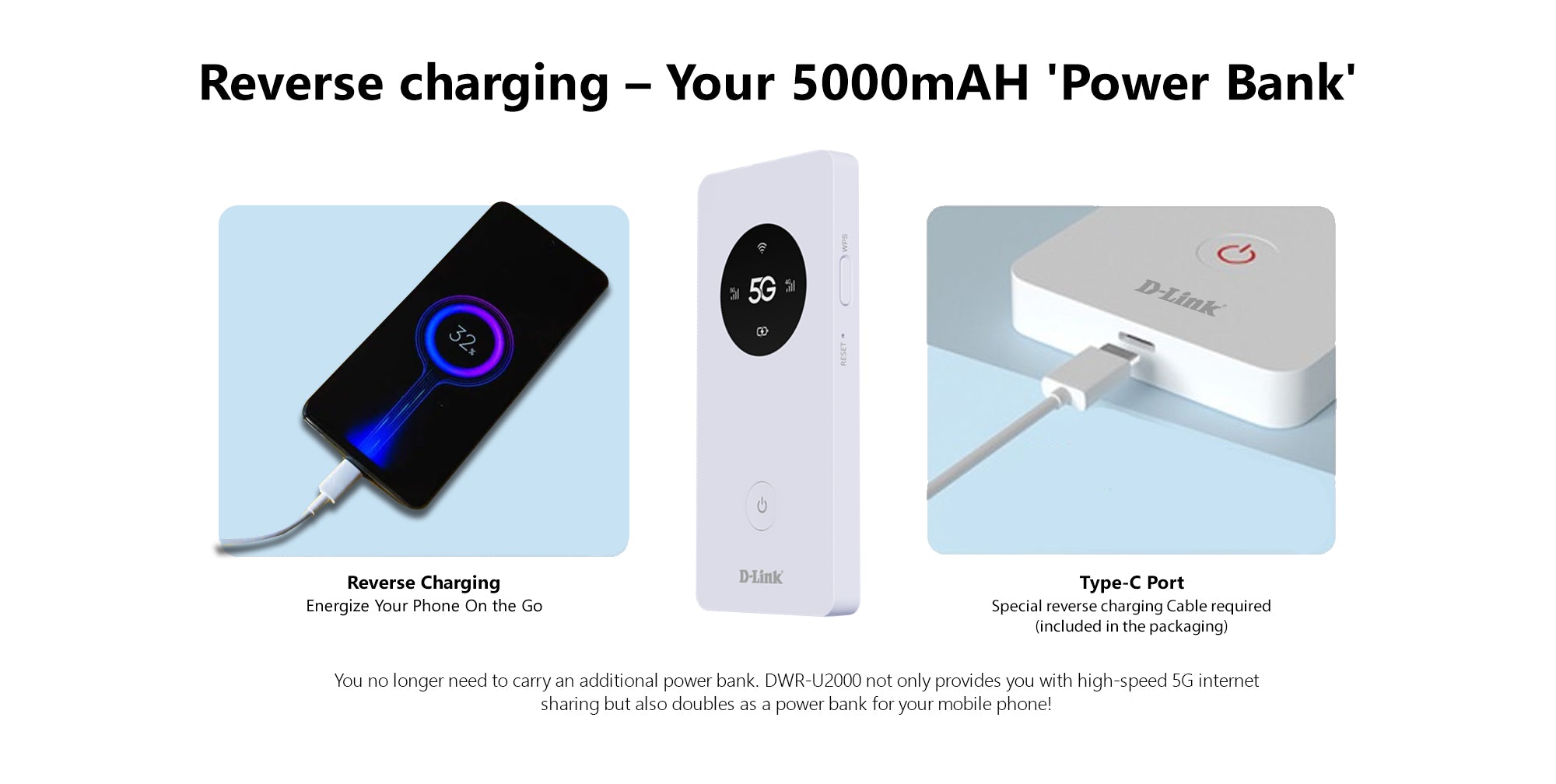

Reverse charging – Your 5000mAh ‘Power Bank’

You no longer need to carry an additional power bank. DWR-U2000 not only provides you with high-speed 5G internet sharing but also doubles as a power bank for your mobile phone!

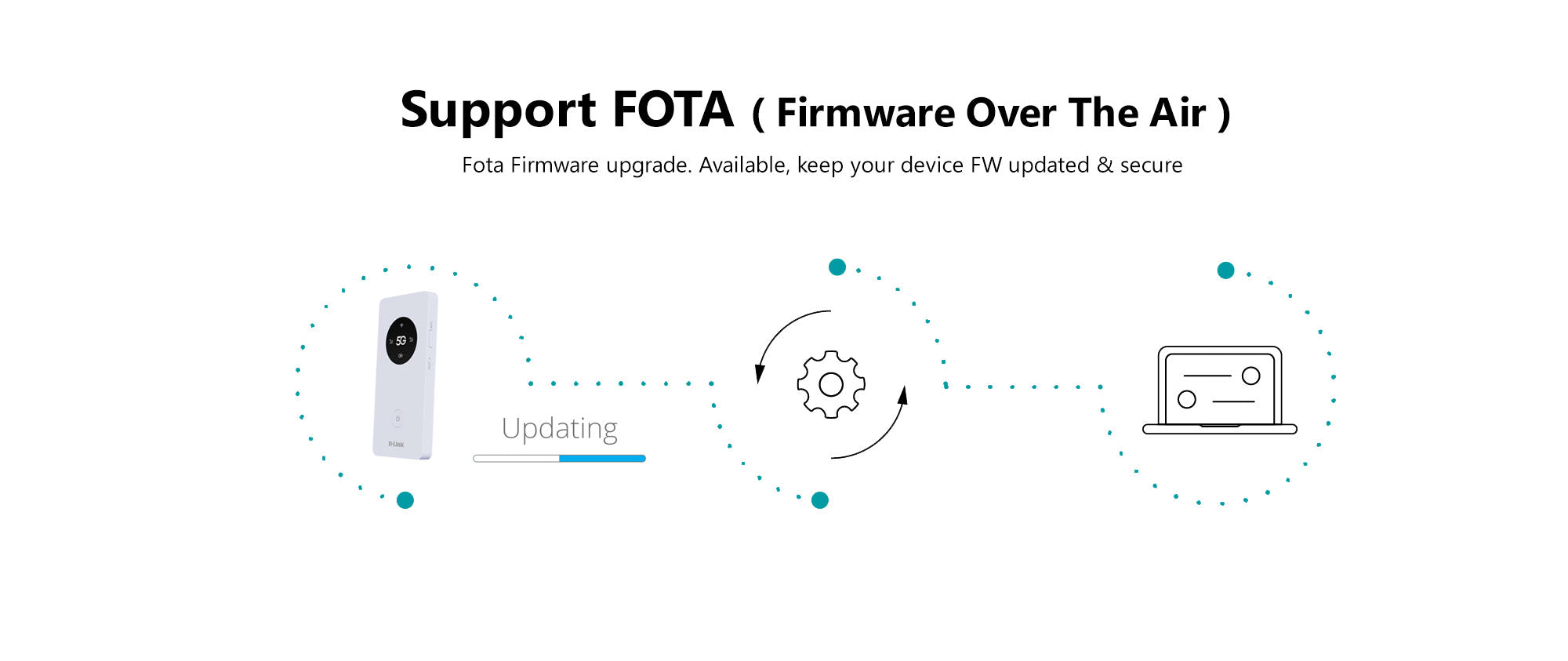

Support FOTA ( Firmware Over The Air )

Fota Firmware upgrade. Available, keep your device FW updated & secure

Connect and Share Your Mobile Connection

Your perfect daily Wi-Fi Partner, conveniently let you share your Wi-Fi at anywhere, anytime just with a nano-SIM card.

Tech Specifications

Hardware
Keys

•WPS,Reset,Power

IO

•USB Type-C

SIM Card

•NANO SIM

Battery

•5000mAH

Charger

•5V/2A

LED

•Power/4G/5G/WiFi(3 colors)

Wireless
Wireless
WiFi Standard

• 802.11ac

WiFi Protocol

• 2.4GHz , 5.0GHz, 80211 a/b/g/n/ac

WiFi ANT

• Internal Antenna

Output Power

• 18dBm (Max) in 11b mode
• 16dBm (Max) in 11g mode
• 15dBm (Max) in 11n mode
• 15dBm (Max) in 11ac mode

Sensitivity

• MCS9: -63dMb@10% PER
• MCS7: 068dBm@10% PER
• 54M: -70dBm@10% PER
• 11M: -83dBm@8% PER
• 6M: -88dBm@10% PER
• 1M: -90dBm@8% PER

IEEE Standard

•IEEE 802.11ac / WIFI 5

General
3GPP

• R8, R9..., R15

Throughput Rate

• HSDPA: Max. 42.2Mbps (DL) (Category 24)
• HSUPA: Max.11Mbps (UL) (Category 7)
• WCDMA: Max. 384Kbps (DL) / 384Kbps (UL)
• LTE FDD: Max.300Mbps (DL) / 50Mbps
• LTE TDD: Max.260Mbps (DL) / 30Mbps (UL)
• 5G NR TDD: Max.2Gbps (DL) / 500Mbps (UL)

LTE ANT

• 1T2R

5G ANT

• 1T4R

WCDMA / HSPA

• B1/B8

TDD-LTE

• B34/38/39/40/41

FDD-LTE

• B1/B3/B5/B7/B8/B20/B28

CA

• 1A-3A: 1A-5A: 1A-7A: 1A-8A1A-20A3A-5A 3A-7A; 3A-8A3A-20A 7A-8A; 7A-20A
39A-41AB1C; B3C; B5B; B7C; B8B; B38C; B39C; B40C:B41C; 1A-1A; 3A-3A; 5A-5A
B7A-B7A; 40A-40A;41A-41A: B1C; B3CB5B; B7C; B8B; B38C:B39C; B40C; B41C;
40D; 41D; 39C-41A; 39A-41C:1A-3C:; 1A-3A-5A/7A/8A: 3A-7A-20A: 1A-7A-8A/20A

5G NR

• N1/N3/N20/N28
• N41/N77/N78

Output Power

• Class 3 (24 dBm + 1/-3 dB), WCDMA band
• Class 3 (23 dBm ± 2 dB), LTE band
• Class 3 (23 dBm ± 2 dB), 5G NR band

Protocol

•TCP/UDP/NTPFTP/HTTP/PING/HTTPS/FTPS/MQTT/MMS

IPv4/IPv6

•Support

WebGUI

•Support

RNDIS

•Support

Upgrade

•Web GUI/FOTA

Security

•WPA,WPA2-PSK

•WPS 2.0

ESD

•Contact ±6k,Air±10k

EOS

•VBAT 200V, VBUS 200V

Certifications

•CE

Physical
Operation Temperature

•-10°C~+40°C

Storage Temperature

•-20°C~+60°C

Battery

•Yes, 5000mAH Built-in

USB Cable

•Yes

Charger

•Yes, 5V/2A

Earphone

•No

OTG Cable

•No

T-Flash Card

•No

Warranty Card

•Yes

QIG

•Yes
