Sale price$339.00Regular price $399.00
DWR-BE7200G
  • Next generation 5G connectivity speeds up to 7.0Gbps
  • Built-inWi-Fi7 BE7200 distributes high-speed, high-performance Wi-Fi to all your connected devices
  • Supports multiple 5G bands for increased connectivity options on SA & NSA
  • Worldwide 5G/4G/3G coverage
  • Support VoLTE for crystal clear voice call
  • Dual-band Wi-Fi on Standard IEEE 802.11BE, OFDMA and MU-MIMO, MLO technology makes 4K streaming, VR gaming or video chatting a breeze
  • Gigabit Ethernet WAN/LAN port and LAN wired for ultra speed wired connectivity
  • Connect up to 512 devices to your Wi-Fi network
  • Built-in 5G/WIFI wide antenna help achieve optimal network performance
  • IPv4 & IPv6 support

Pickup available at D-Link Service Centre

Usually ready in 24 hours

Pairs well with

In stock item ships within 1-2 business days.

3-Year* Warranty

Complimentary shipping above $80

* Warranty Details

Unrivaled Speed with 5G, Revolutionary Experience

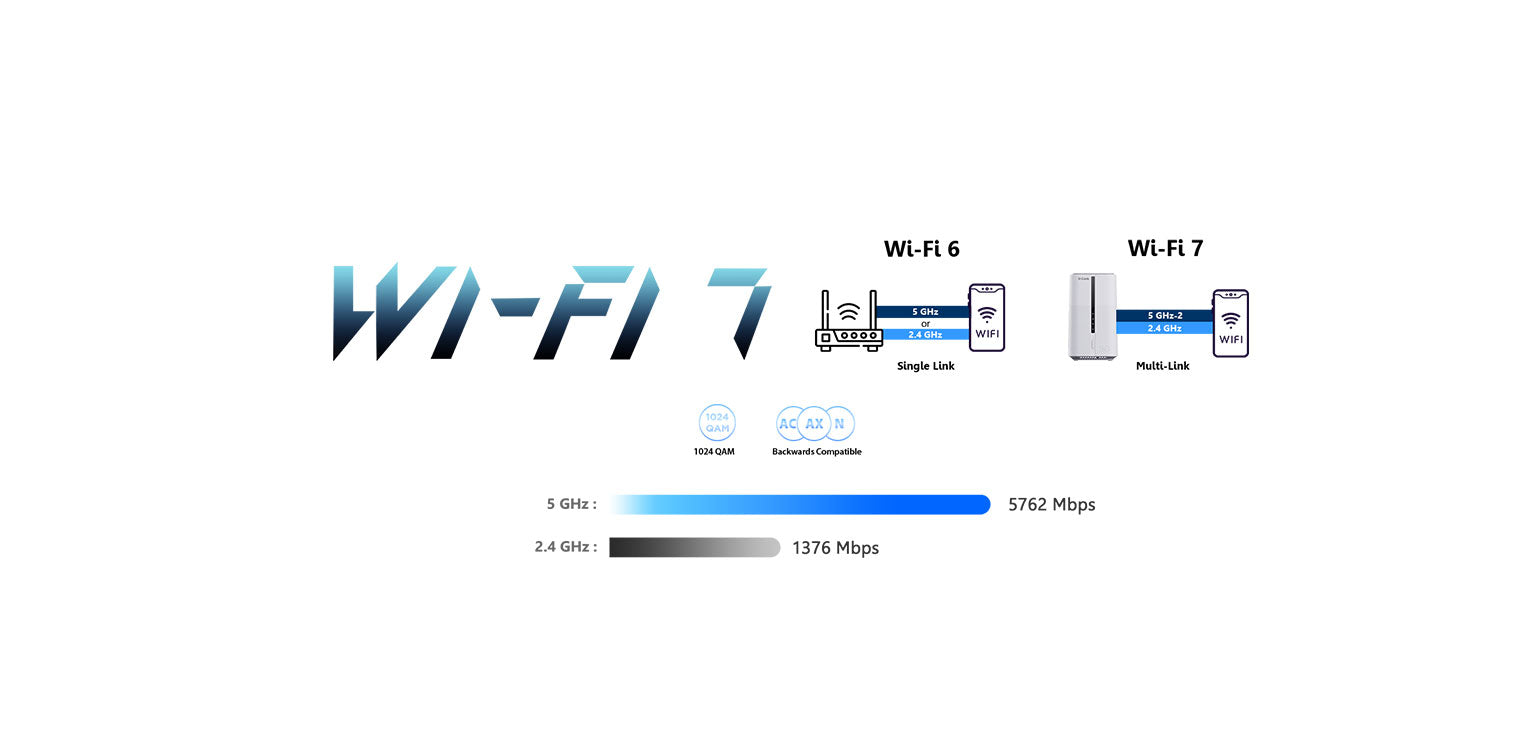

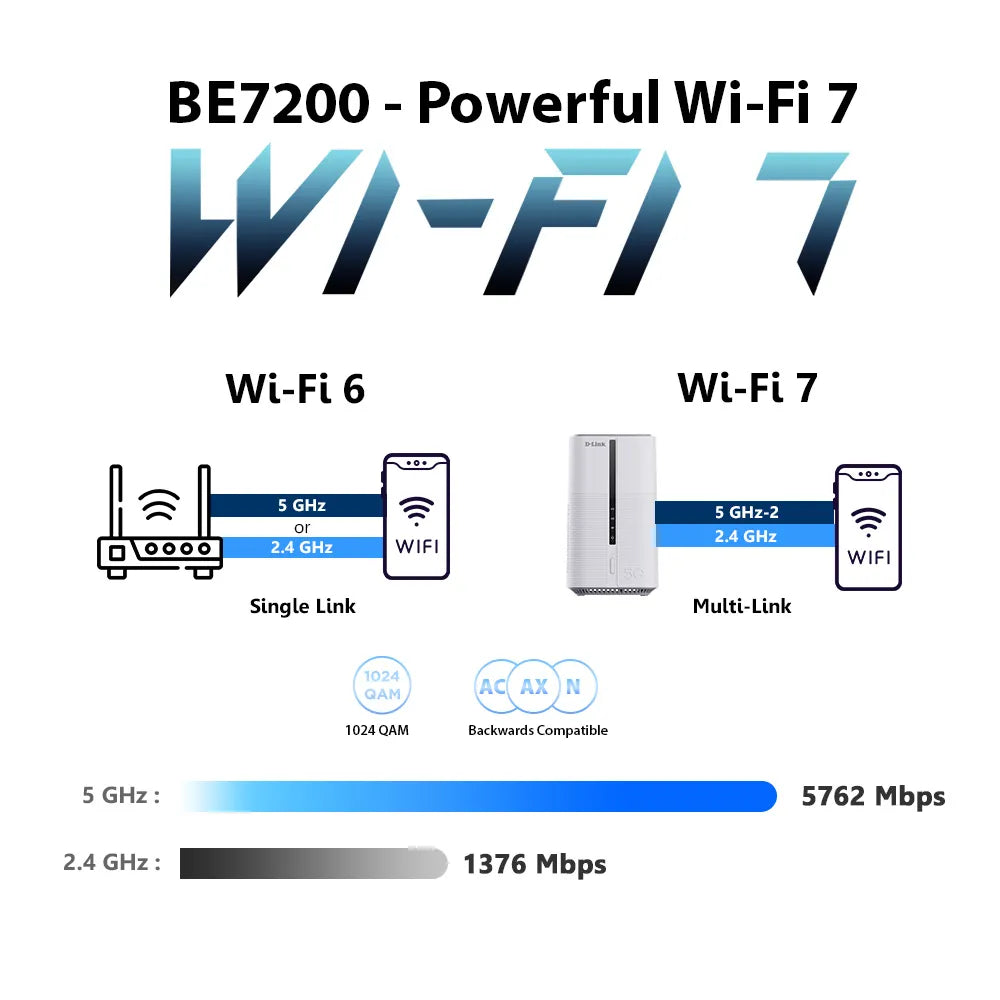

BE7200 – Powerful Wi-Fi 7

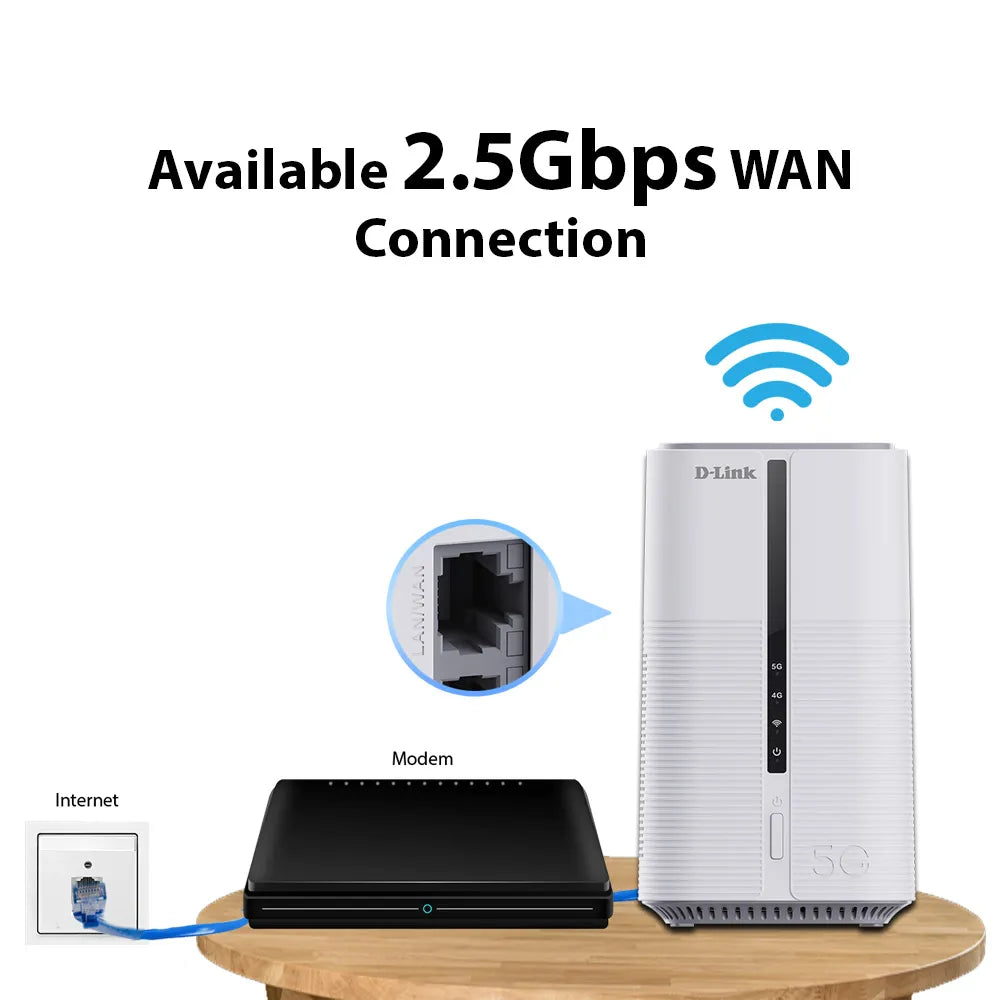

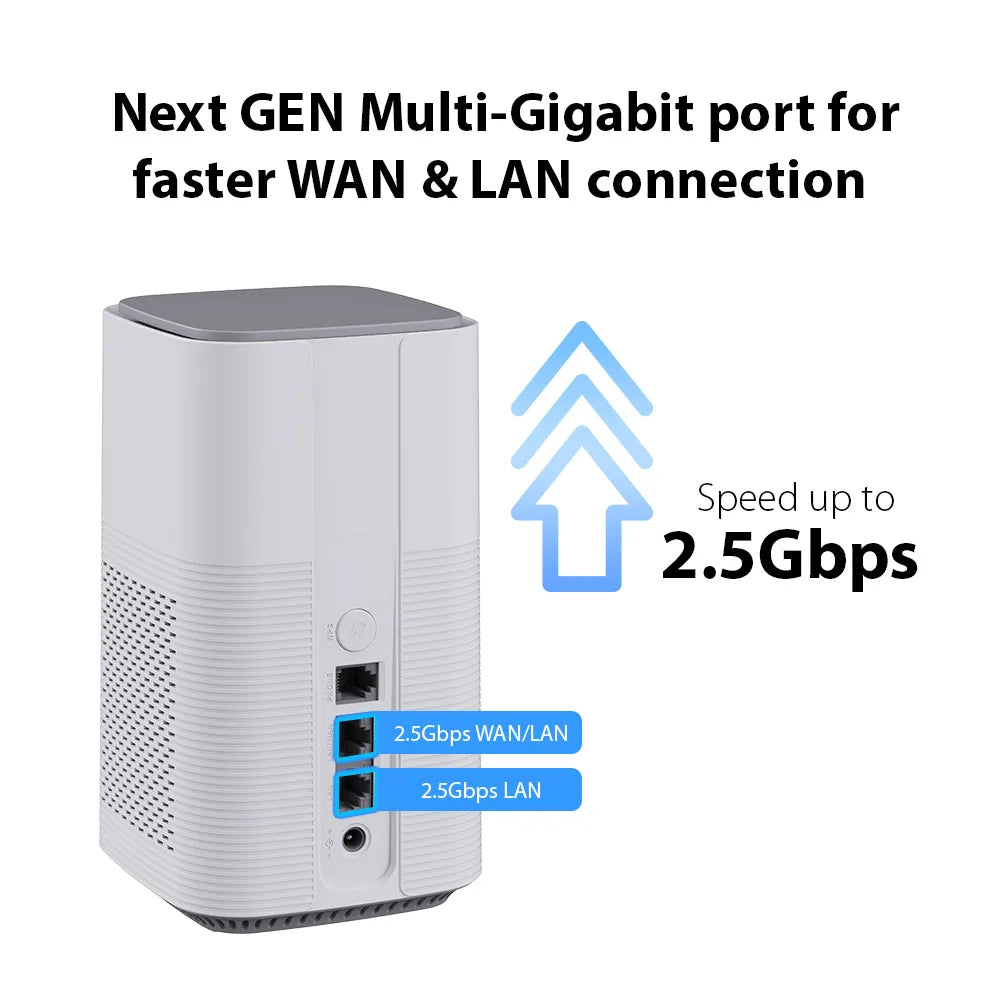

Next GEN Multi-Gigabit port for faster WAN & LAN connection

Plug and Play, Enjoy 5G Network Everywhere

Your World, Connected. Instantly .

D-Link Mobile Wi-Fi Routers provide effortless, plug-and-play Wi-Fi. Enjoy robust, reliable internet access for your fast-paced lifestyle, whether you're using a Nano-SIM for immediate mobile Wi-Fi or a wired Ethernet connection for fixed setups. No complex configuration required.

Downloads Datasheet

Tech Specifications

Hardware
Antenna

• Internal MIMO

LED

• Wifi LED (3 colors)
• 4G LED (3 colors)
• 5G LED (3 colors)

USB

• 1x USB Type C

USIM&SIM

• 4FF Standard 8PIN

Buttons

• WPS + Power + Reset (Pin hole)

Wireless
Wireless
Cellular

• 4G: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43
• 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n76/n77/n78

Wi-Fi Standard

• 802.11a/b/g/n/ac/ax/be Up to 7.2Gbps

Band

• 2.4G(2.4~2.4835GHz)--20/40MHZ
• 5.0G(5.15~5.925GHz)20/40/80/160MHZ

MIMO

• MU-MIMO,4x4+4x4

General
Sending mode

• 2Tx

Standard

• 3GPP R16

Receiving mode

• 4Rx

Authentication

• Support PAP/CHAP authentication.

5G Features

• Supports 3GPP Rel-16
• Supports 4CC DL CA
• Supports uplink 256-QAM* and downlink 256-QAM
• Supports downlink 4 × 4 MIMO on n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n77/n78
• Supports uplink 2 × 2 MIMO2 on n38/n40/n41/n77/n78
• Supports SCS 15 kHz and 30 kHz
• Supports SA and NSA operation modes
• Supports Option 3x, 3a, 3 and Option 2
• NSA Max 5.76 Gbps (DL)/ 1.46 Gbps (UL)
• SA Max 7.01Gbps (DL)/ 2.5 Gbps (UL)

LTE Features

• Supports 3GPP Rel-16
• Supports both FDD and TDD
  • Supports 1.4 to 20 MHz RF bandwidth
• Supports LTE DL 4 ×4 MIMO onB1/3/5/7/8/20/28/38/40/41/42/43/71
• Supports uplink QPSK, 16-QAM and 64-QAM and 256-QAM modulation
• Supports downlink QPSK, 16-QAM and 64-QAM and 256-QAM modulation
• LTE: Max. 1.6 Gbps (DL)/ 211 Mbps (UL)
• UMTS Features
• Supports 3GPP R8 DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA
• Supports QPSK/16-QAM/64-QAM modulation
• DC-HSDPA: Max. 42 Mbps
• HSUPA: Max. 11.5 Mbps
• WCDMA: Max. 384 kbps (DL)/ 384 kbps (UL)

Transmit Power

• WCDMA: Class 3 (24 dBm +1/-3 dB)
• LTE-FDD: Class 3 (23 dBm ±2 dB)
• LTE-TDD: Class 3 (23 dBm ±2 dB)
• TE-B41: Class 2 (23 dBm ±2 dB)
• 5G NR: Class 3 (23 dBm ±2 dB)
• 5G NR n41/n77/n78 bands UL MIMO HPUE: Class 2 (26 dBm +2/-3 dB) and Class 1.5 (29 dBm +2/-3 dB

Users

• 512

Transmission distance

• Up to 100m

RJ45

• 2.5G WAN/LANx1+ 2.5G LANx1

RJ11

• RJ11x1 for VoLTE

Temperature

• Working temperature: -20°C ~ 60°C
• Storage temperature: -40°C ~ 70°C

Humidity

• Working humidity: 40°C/90 - 90%
• Storage humidity: 10 ~ 95%

Physical
Size

• 107*107*186mm

Weight

• 850g
