Conserve Energy

The 8-Port Gigabit Easy Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

Environmentally Friendly

The 8-Port Gigabit Easy Desktop Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

Tech Specifications

Hardware
Device Interfaces

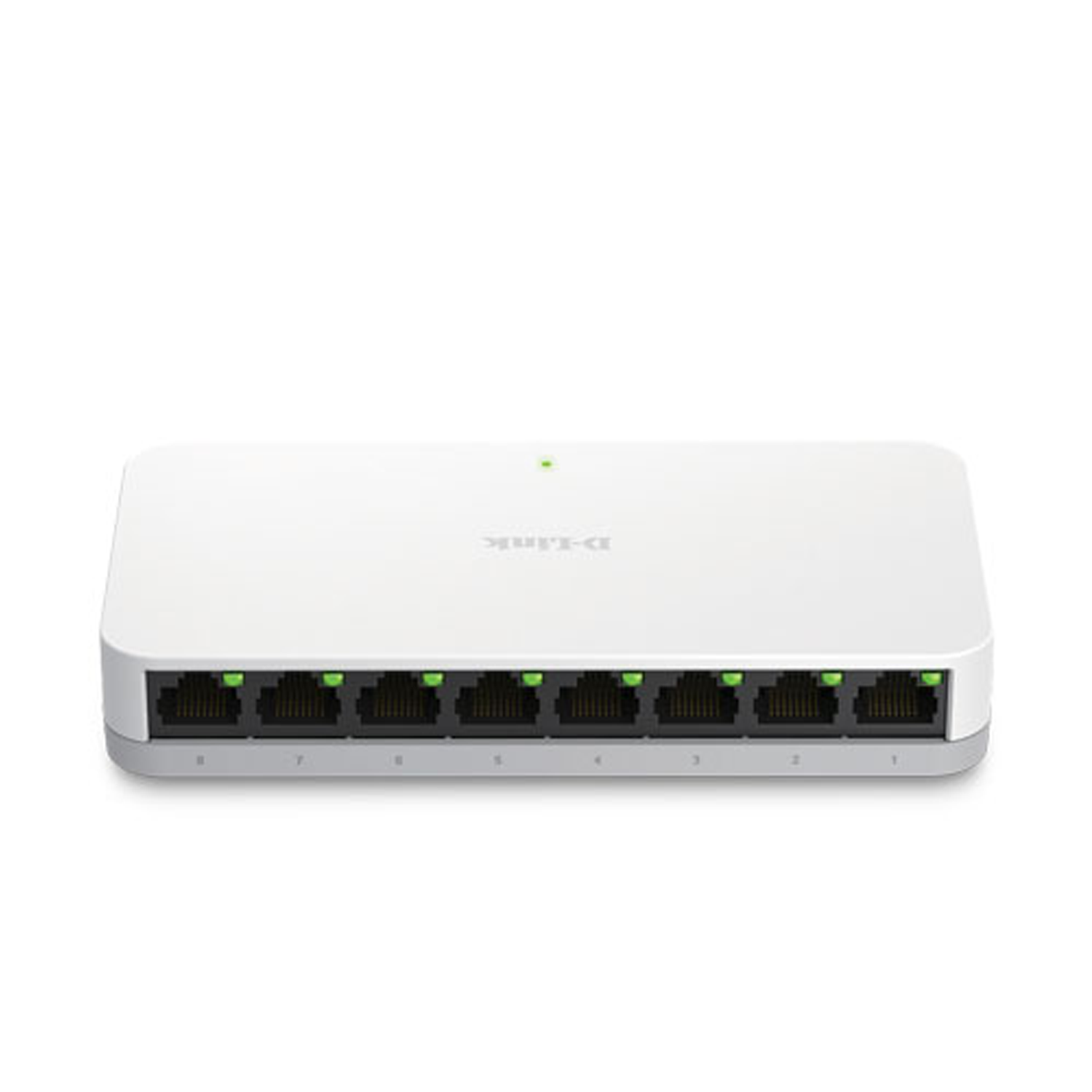

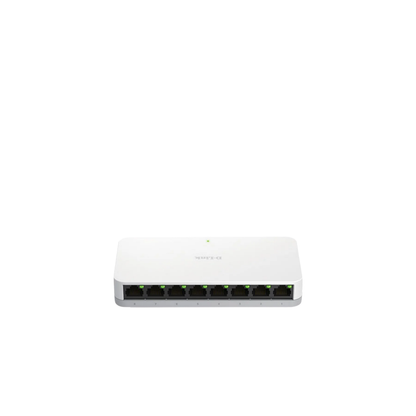

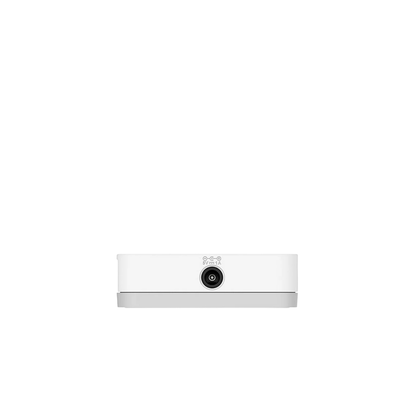

•8 x Gigabit Ethernet LAN ports, 1 x power connector

Media Interface Exchange

• Auto MDI/MDIX for all ports

Power

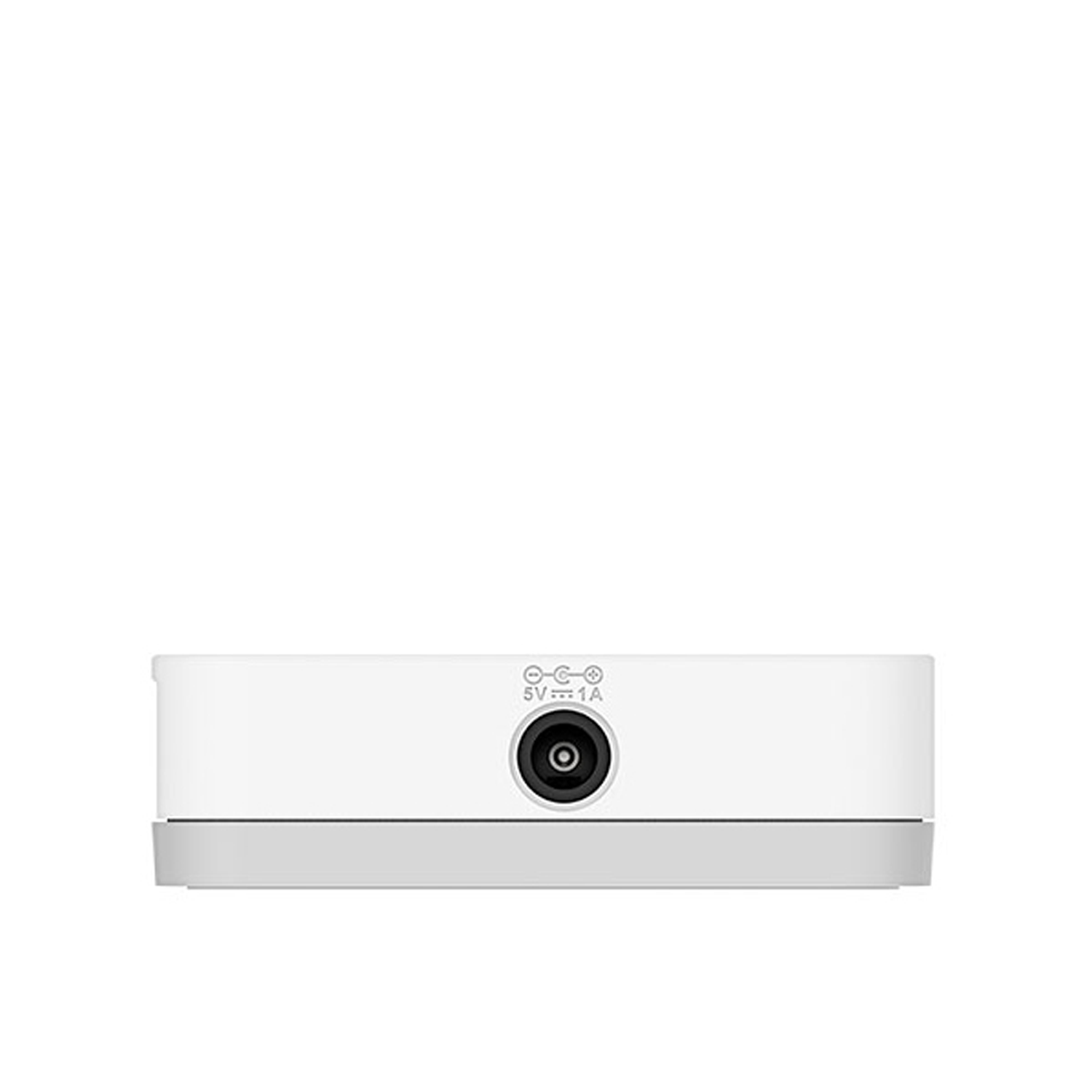

• 5 V/1 A Power Adapter

Wireless
Wireless

Standards

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

General
Advanced Features

• Green Ethernet
• 16 Gbps switching fabric
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Supports 9KB Jumbo Frame
• Supports IEEE 802.1p QoS

Data Transfer Rates Ethernet:

• 10 Mbps (half duplex)
• 20 Mbps (full duplex)
Fast Ethernet:
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)
Gigabit Ethernet:
• 2000 Mbps (full duplex)

Transmission Method

• Store-and-forward

MAC Address Table

•4K

MAC Address Learning

•Automatic Update

Packet Filtering/Forwarding
Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

Packet Buffer

•192 KB

Power Consumption

• Maximum AC input: 5.12 W

• Standby AC input: 0.58 W

Temperature

• Operating: 0 to 40 °C (32 to 104 °F) • Storage: -10 to 70 °C (14 to 158 °F)

Humidity

• Operating: 10% to 90% non-condensing • Storage: 5% to 90% non-condensing

MTBF

• 1,468,984 hours

Certifications

• CE class B
• FCC class B
• ICES-003 Class B
• VCCI class B
• BSMI

• LVD
• RCM
• Anatel
• KCC

Physical
LED Indicators

• Per port: Link/Activity

• Per device: Power

Dimensions

• 142 x 75 x 22.45 mm

Weight

• 117 g
