New Generation Wi-Fi

Ultra Fast, Stable and Smart in Every Way

Wi-Fi 7 delivers ultra-fast speeds and low latency for activities like 8K streaming and gaming. With Multi-Link Operation, it connects to multiple bands simultaneously, boosting reliability and reducing interference for a faster, more stable experience across all your devices.

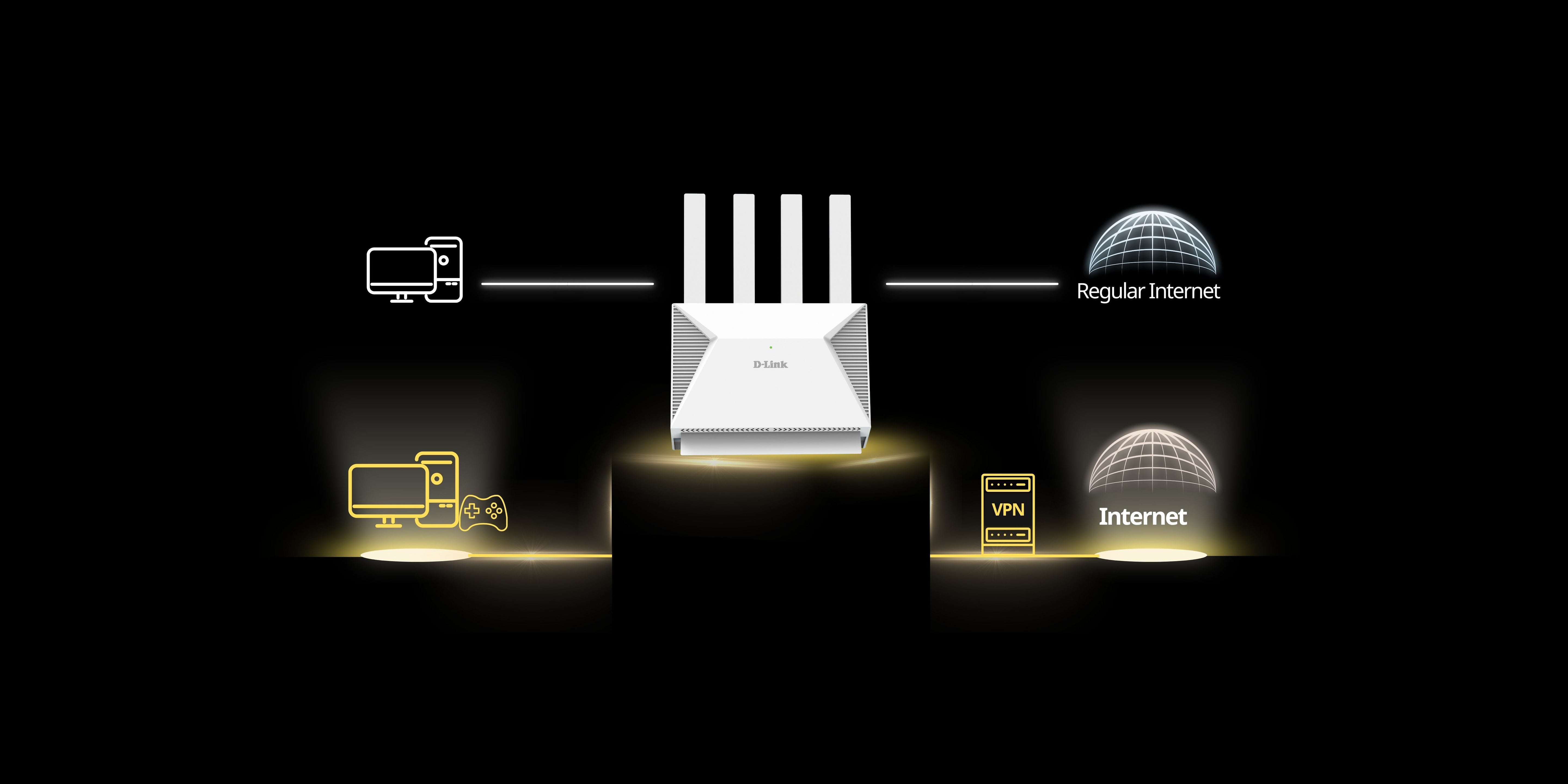

Smart VPN, Ultimate Flexibility

Enable devices on your home network to connect to remote VPN servers without requiring VPN software on each device. The D-Link DIR-BE3602 supports simultaneous VPN and regular internet connections, offering both security and versatility.

Zero Wi-Fi Blindspot with EasyMesh

Ultra Speed Performance

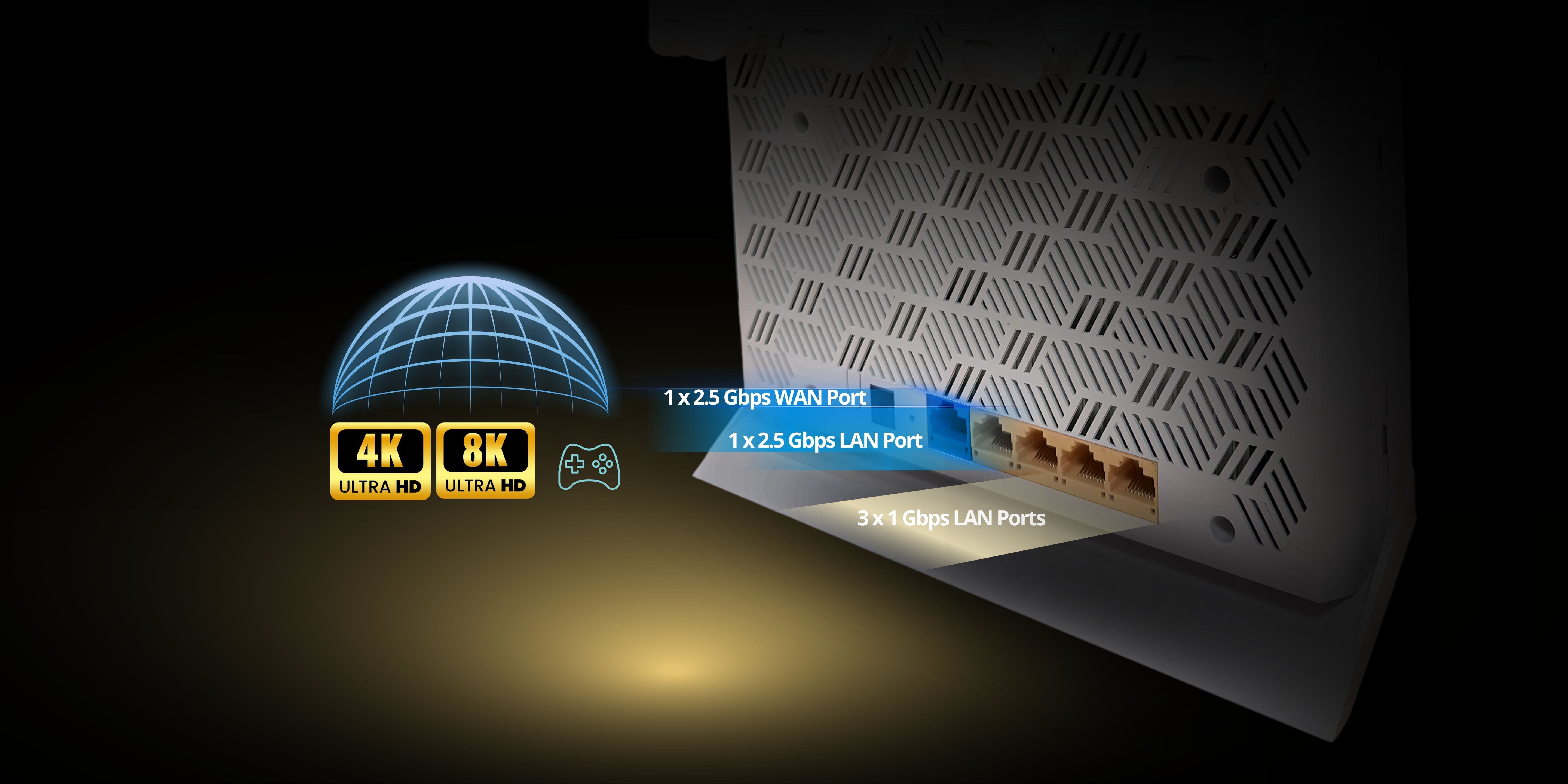

2×2.5 Multi-Gigabit Wired Connection

Why Wi-Fi 7?

Gaming, entertainment, weekend streams — Wi-Fi 7 keeps it all running smooth.

Tech Specifications

Hardware
CPU frequency
  • Quad-Core
  • 1.1-GHz

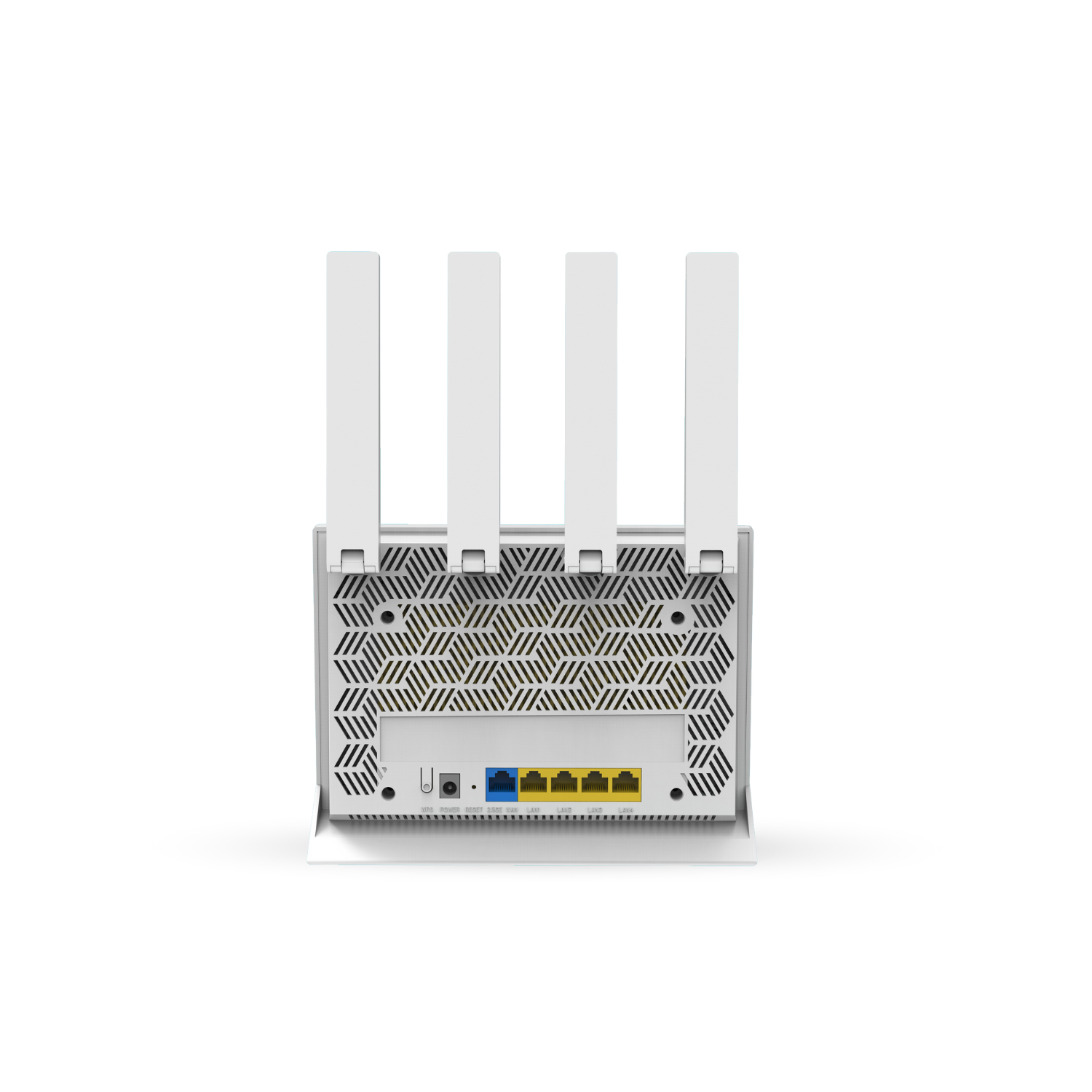

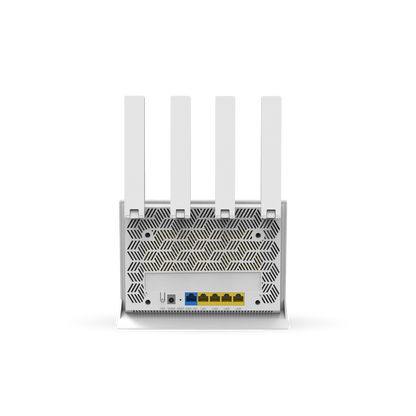

Device Interfaces
  • 1 x RJ45 100M/1000M/2.5G WAN Ethernet
  • 1 x RJ45 100M/1000M/2.5G LAN Ethernet + 3 x RJ45 100M/1000M LAN Ethernet
  • 1 x Reset Button
  • 1 x Mesh
Wireless
  • 2T2R 2GHz 802.11b/g/n/ac/ax/be, 688Mbps
  • 2T2R 5GHz 802.11a/n/ac/ax/be, 2882Mbps
Wi-Fi Antenna
  • 2 x 5dBi External 2.4G antennas
  • 2 x 5dBi External 5G antennas
Memory
  • 512MB DDR3
Flash
  • 128MB Nand Flash

D-Link will provide security updates for the D-Link DIR-BE3602 (B1) until 31st Dec 2027, and extended support may be provided after the stated date and D-Link has the final decision on every security patch adoption and release.

Wireless
Wireless
Standard
  • 802.11b/g/n/ac/ax/be, 688Mbps 2.4G
  • 802.11a/n/ac/ax/be, 2882Mbps 5G
Modulation schemes
  • OFDM = BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
  • DSSS = DBPSK, DQPSK, CCK
Transfer Rate
  • EHT20: up to 688Mbps 2.4G+5G
  • EHT40: up to 1376Mbps 2.4G+5G
  • EHT80: up to 1441Mbps 5G
  • EHT160: up to 2882Mbps 5G
General
WAN Type
  • Static IP
  • Dynamic IP
  • PPPoE
  • 802.1p & 802.1q VLAN tagging and priority bit
Security Protocol
  • WPA/WPA2 - Personal
  • WPA2 - Personal
  • WPA2/WPA3 - Personal (WPS not supported)
  • WPA3 Only (WPS not supported)
  • WPA2-Enterprise (IEEE802.1X)
Firewall
  • DoS
  • Stateful Packet Inspection
  • Anti-spoofing checking
  • IP/MAC address filtering
  • 1 x DMZ
Mesh
  • D-Link Wi-Fi Mesh
QoS
  • D-Link Intelligent QoS Technology
Power Saving
  • Target Wake Time (TWT)
Access Control
  • Advanced Parental Controls
  • Guest zone
Dynamic DNS
  • No-IP DDNS
  • Dyn DDNS
Protocols
  • IPv4
  • IPv6
Operation Modes
  • Router mode
  • Extender mode
  • Bridge mode
VPN Pass-Through
  • L2TP
  • PPTP
  • IPSec
