Tech Specifications

Hardware

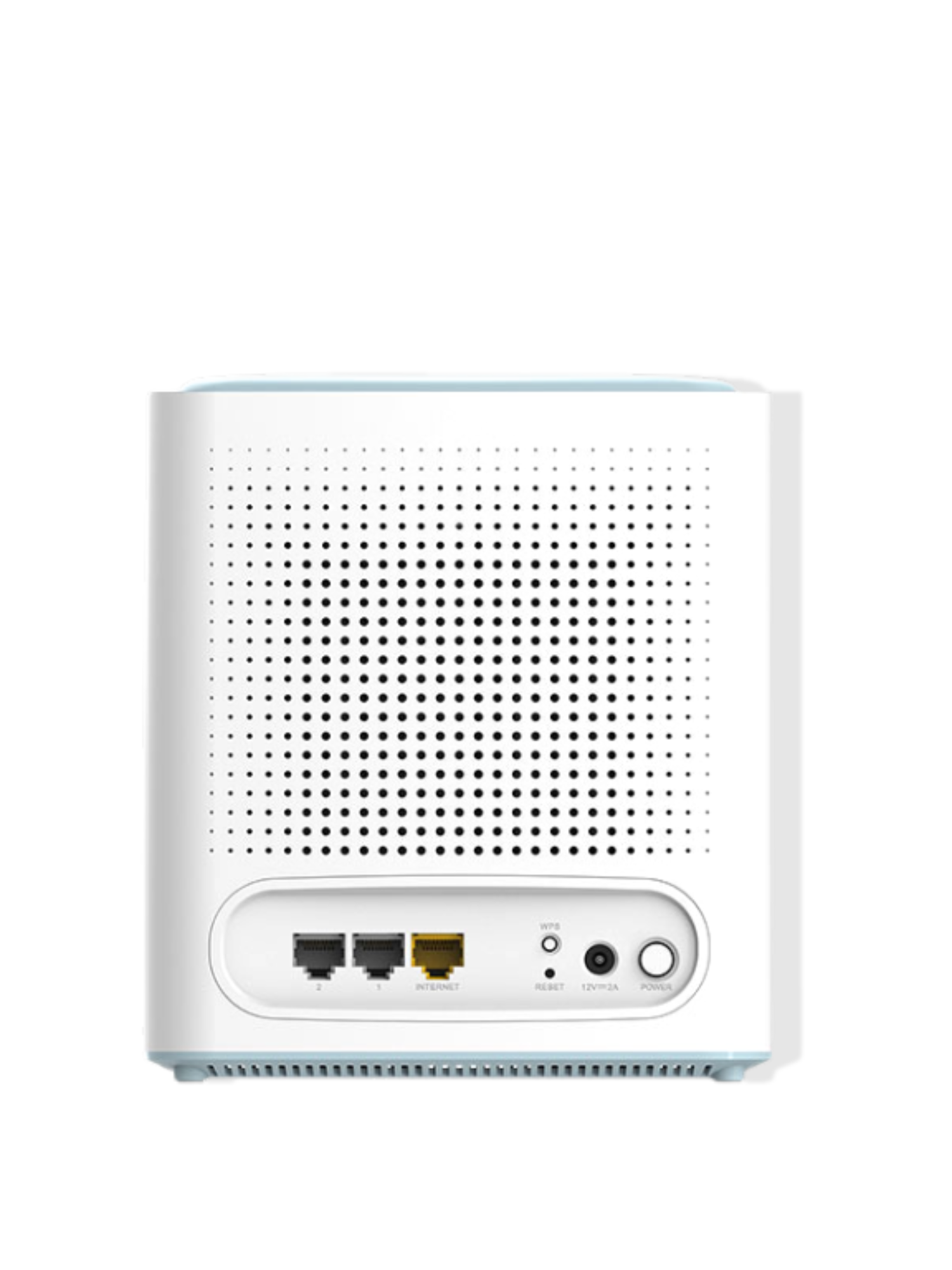

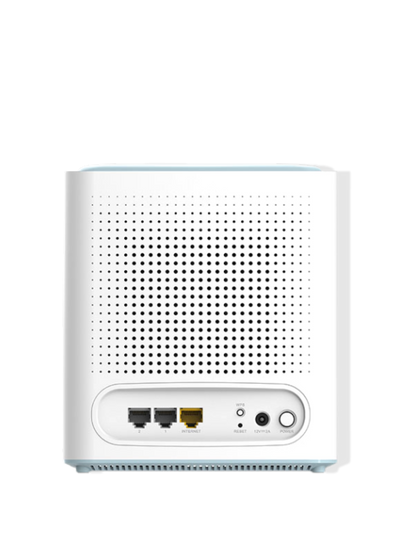

Device Interface
  • 2 x Gigabit Ethernet LAN port
  • 1 x Gigabit Ethernet WAN port
  • 1 x WPS button
  • 1 x power connector
IEEE Standards
  • IEEE 802.11ax/ac/n/g/b/k/v/a/h
  • IEEE 802.3u/ab
Antennas

• 4 x internal dual band antennas

Led Display
  • Power/Status

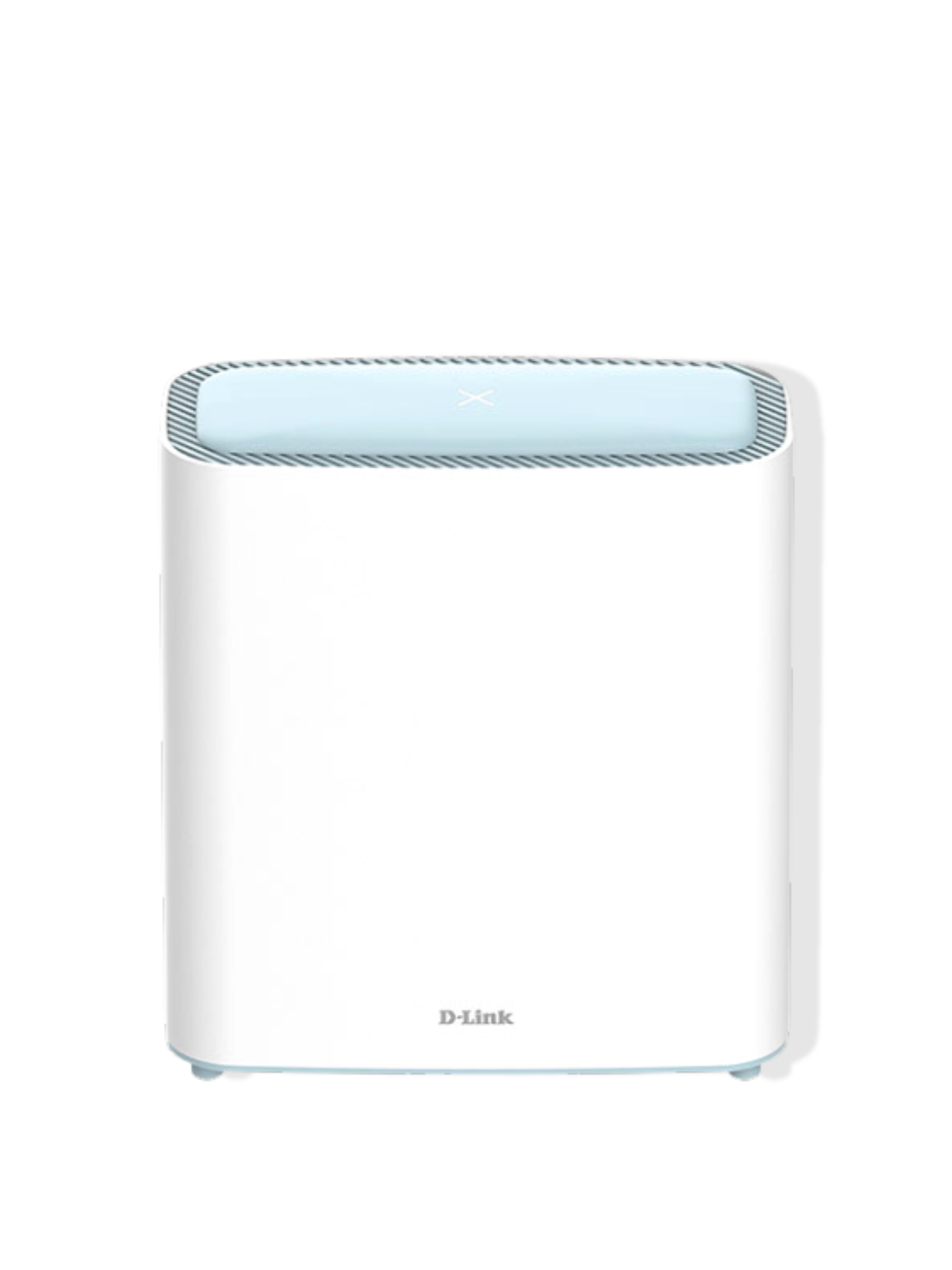

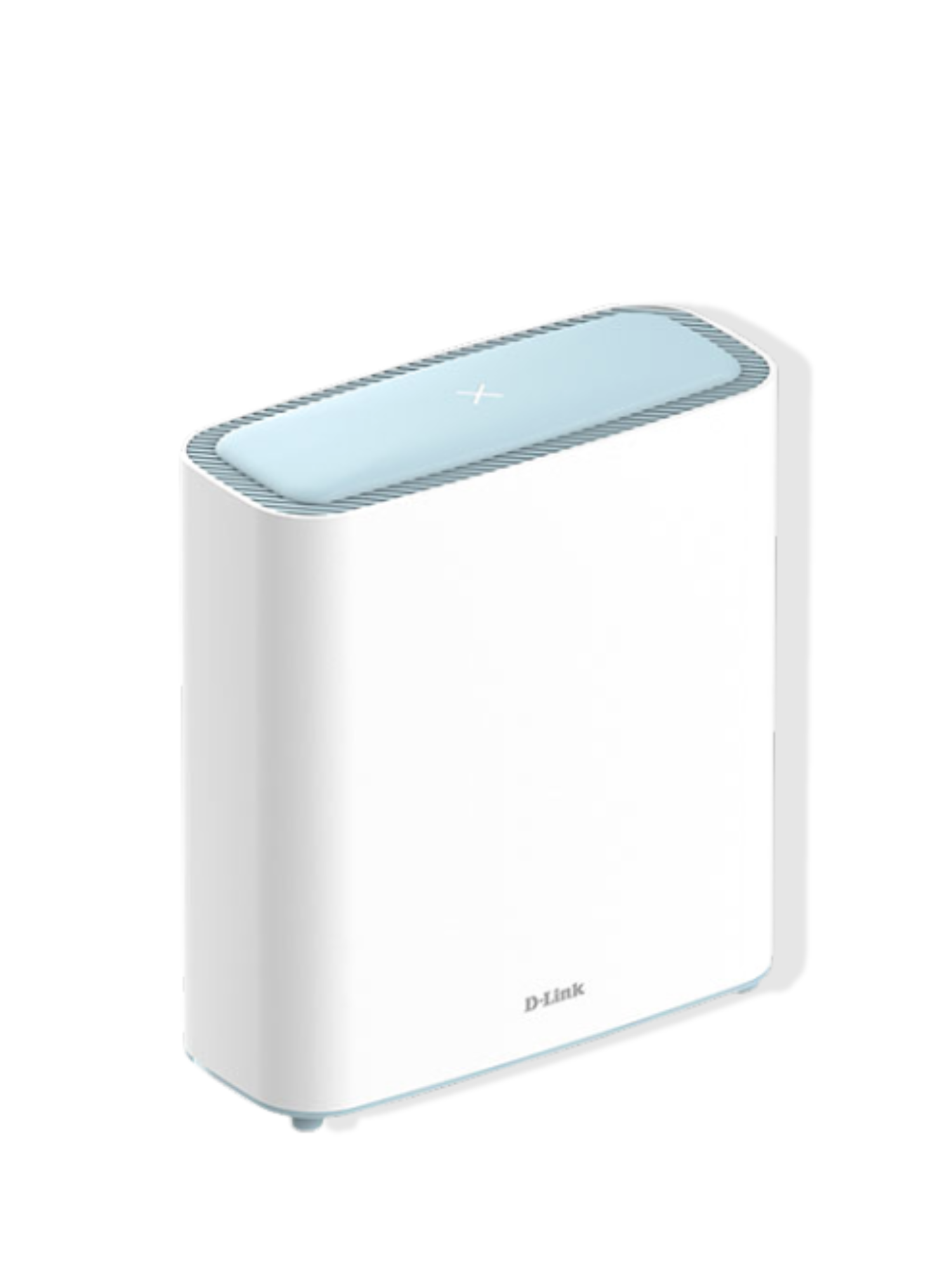

D-Link will provide security updates for the D-Link M32 until 31st Dec 2026, and extended support may be provided after the stated date and D-Link has the final decision on every security patch adoption and release.

Wireless
Wireless
IEEE Standards

• IEEE 802.11ax/ac/n/g/b/k/v/a/h, IEEE 802.3u/ab

Wi-Fi Data Rate

•2.4 GHz Up to 800 Mbps, 5 GHz Up to 2402 Mbps

General
Maximum Power Consumption

• 15.51 W

Firewall

• DoS, Stateful Packet Inspection, Anti-spoofing Checking, IP/MAC Address Filtering, 1 x DMZ

Device Management

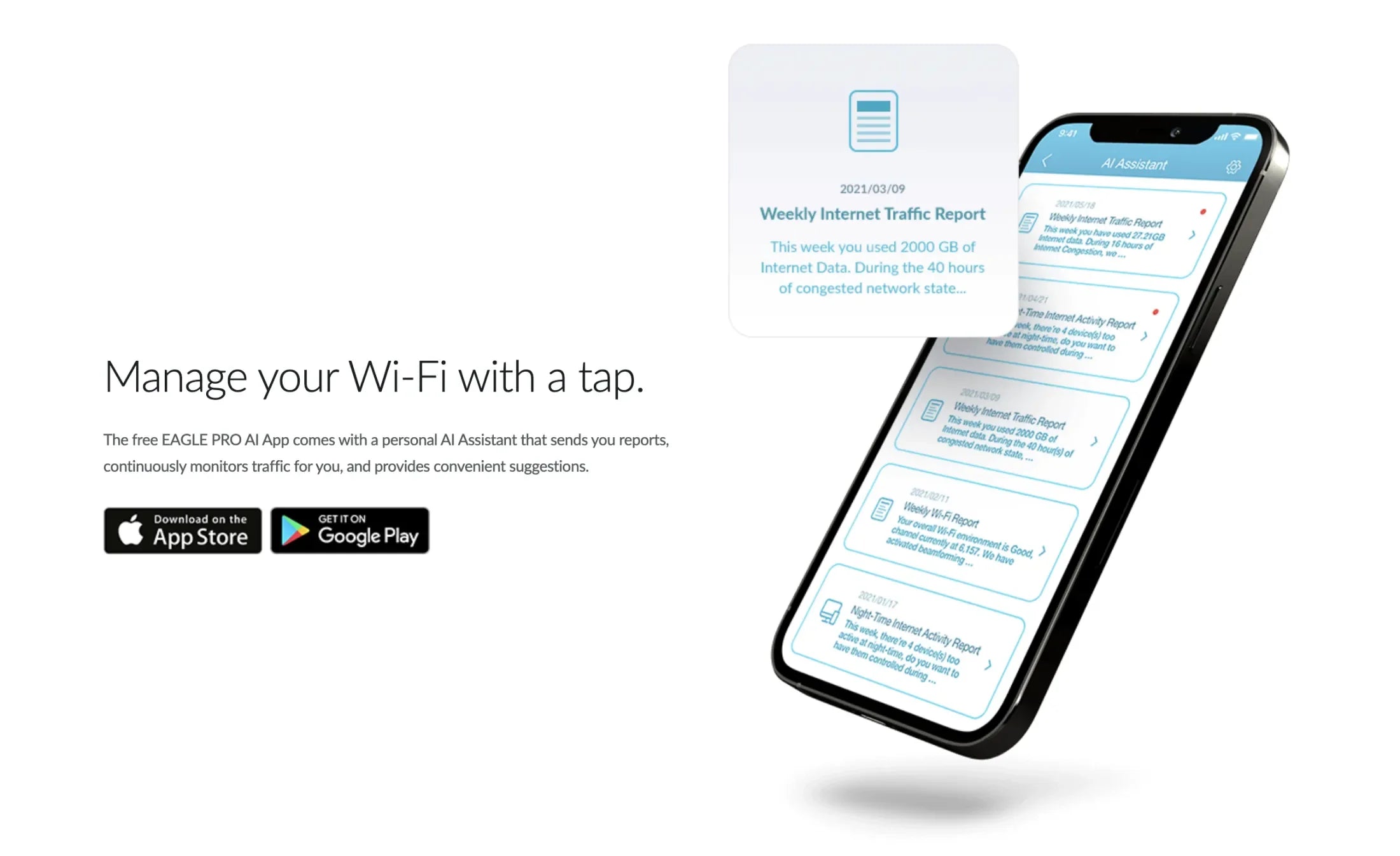

• EAGLE PRO AI app (iOS and Android), Web UI

Voice Assistants

• Amazon Alexa, the Google Assistant

Certifications

CE, FCC

Physical
Dimensions

• 164.61 x 71.07 x 185.65 mm

Weight

• 486g

Power Input

• 12V, 2A

Operating Temperature

• 0 to 40 °C (32 to 104 °F)

Operating Humidity

• 10% to 90% non-condensing
