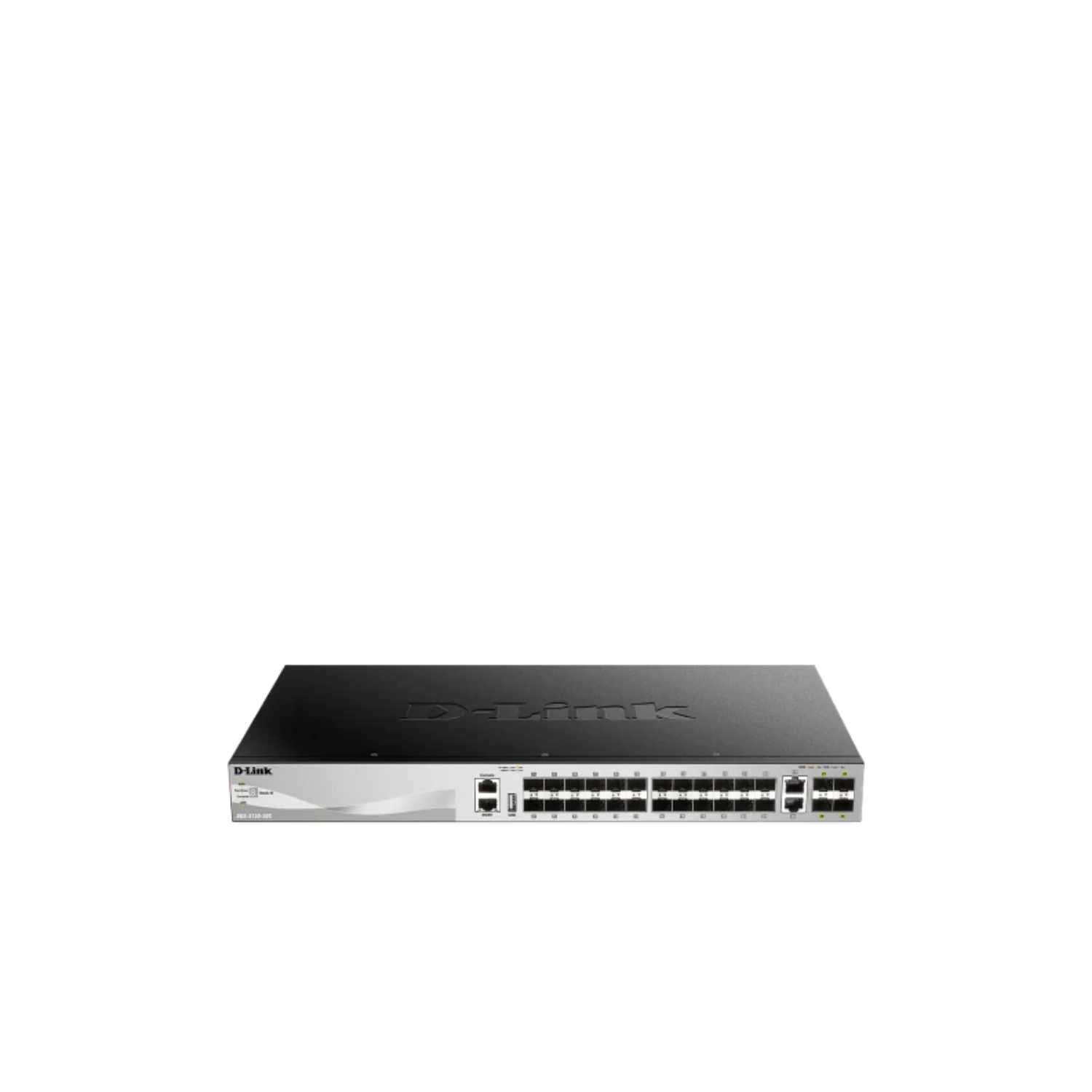

30-port Gigabit SFP Layer 3 Stackable Managed Switch with 6-port 10G Uplinks

30-port Gigabit SFP Layer 3 Stackable Managed Switch with 6-port 10G Uplinks

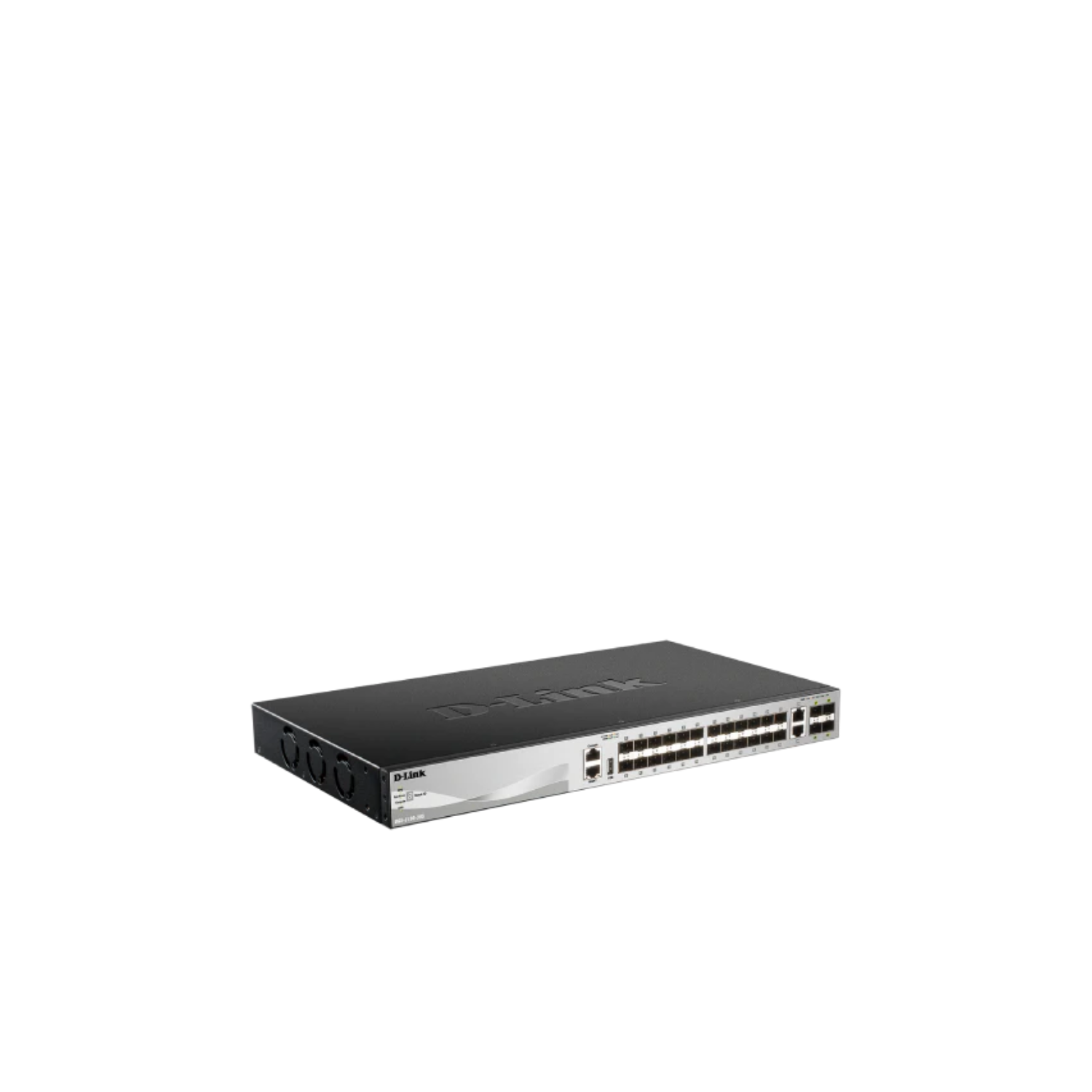

DGS-3130-30S

Product variants

• Unified software image with powerful L2 and L3 features
• 6x 10 Gigabit ports
• 6kV Surge Protection for Gigabit Ethernet ports
• Power over Ethernet (PoE) options, up to 740W with RPS
• D-Link Safeguard Engine

Share:

Share

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

2 x 10GBASE-T, 4x SFP+ 10G ports

Connect to areas of your network at 10G speeds, and reach even further distances with fibre optic cabling.

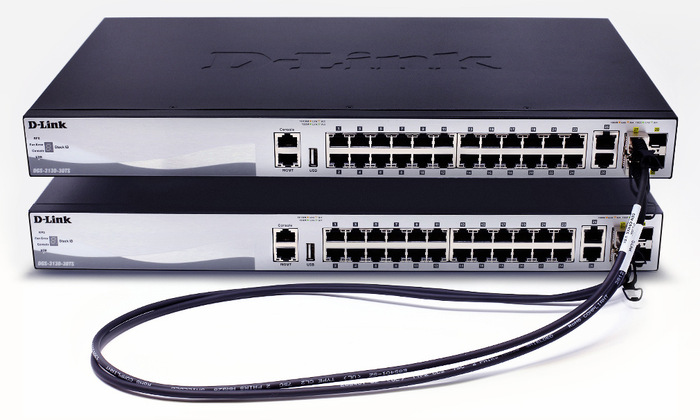

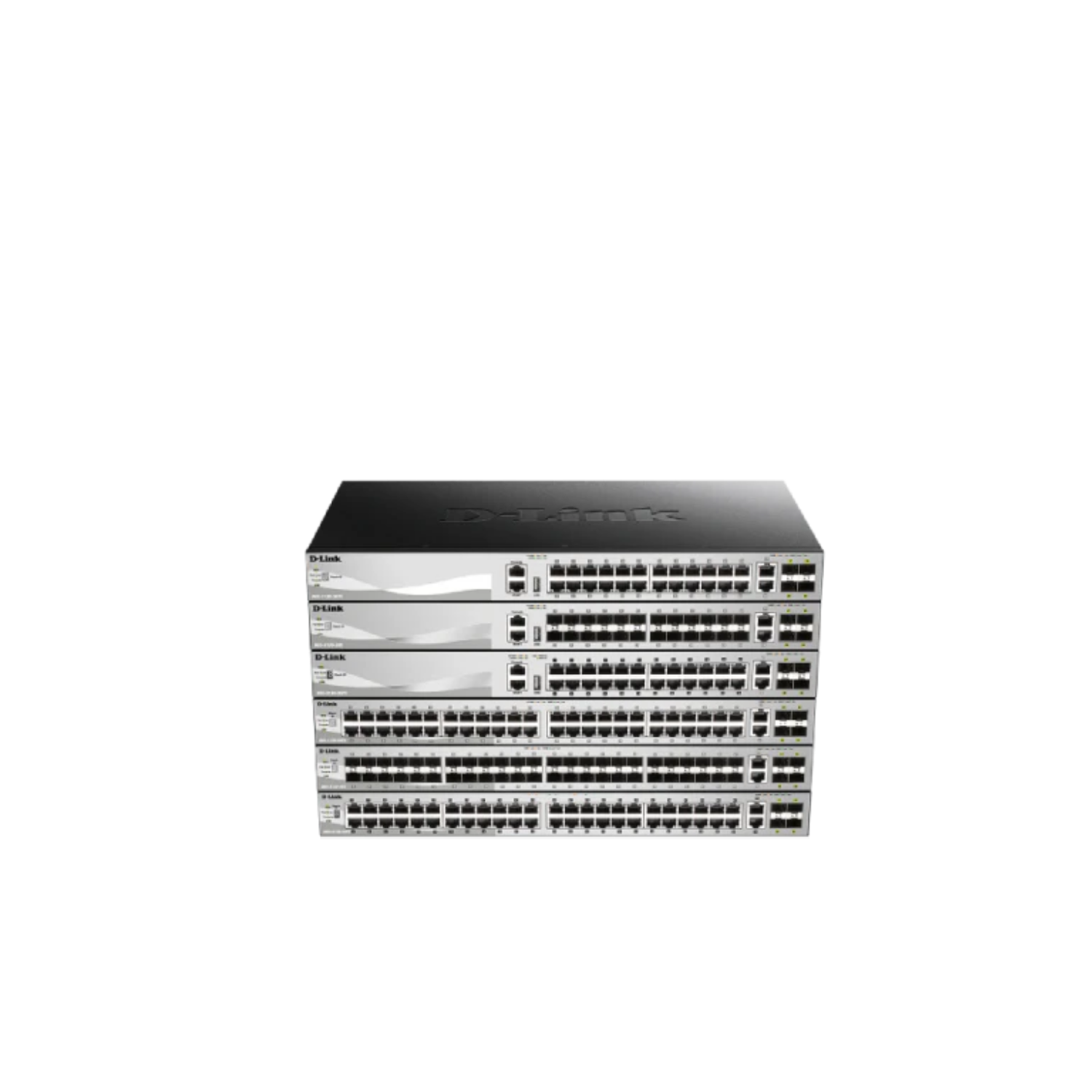

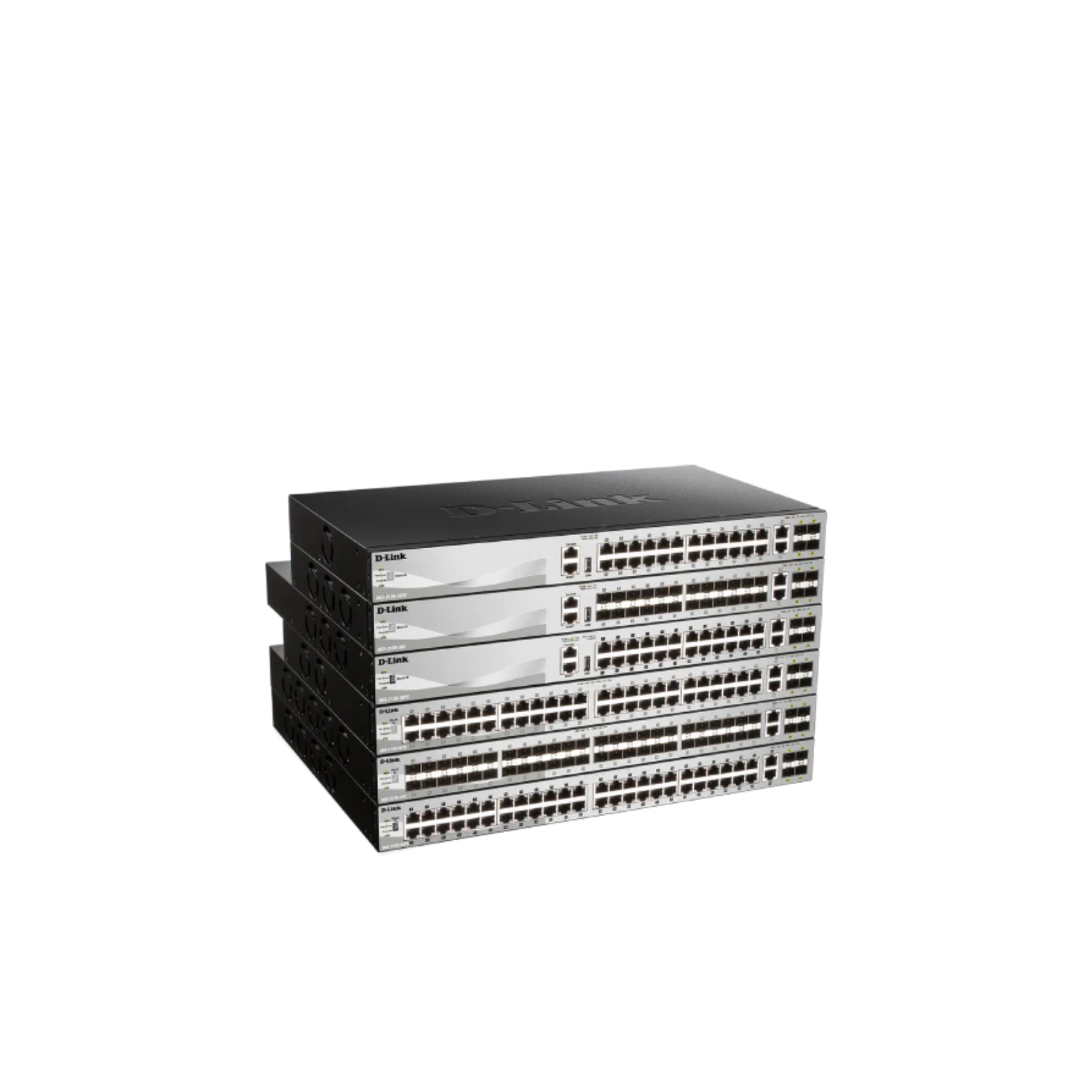

Physical Stacking

Up to 9 units per stack1, with a maximum of 324 ports, and up to 80GB of bandwidth.

Layer 2 Features

Such as flow control, link aggregation, Ethernet Ring Protection Switching (ERPS), Spanning Tree Protocols, Loopback Detection, IGMP/MLD Snooping.

Layer 3 Features

Including up to 128 IP Interfaces, IGMP Filtering, Neighbor Discovery Protocol (ND), ARP Proxy, VRRP.

Static Routing

Route Layer 3 traffic between switches, even if they're segmented in VLANs.

Industry Standard CLI

Supports a full industry standard Command-Line Interface for system management.

Dual Image

Risk-free configuration testing.

Greater port density. Powerful Layer 3 features.

Designed for small to medium-sized business networks, the unified software incorporates Layer 2 and Layer 3 features, with 10-Gigabit ports, greater port density thanks to physical stacking, all of which enables the DGS-3130 Series to be deployed in a variety of environments and topologies, including Metro Ethernet deployments.

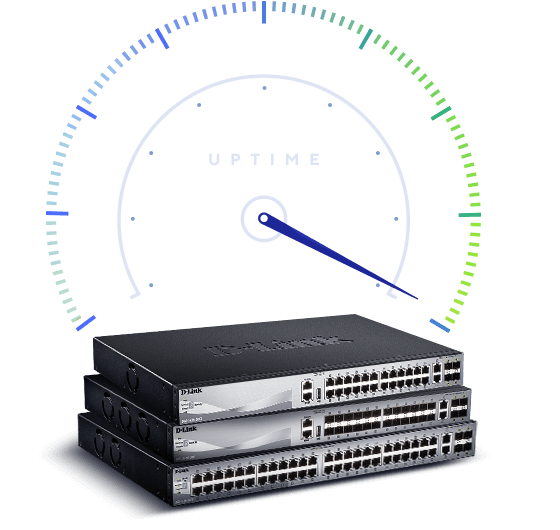

World-class reliability.

Advanced L2 and L3 features including port security, Storm Control, Spanning Tree Protocols, IGMP/MLD Snooping, and IPv6 ND. Management options like a multilingual web-UI, and industry standard CLI support, with support for multiple images and multiple configurations.

6x 10-Gigabit ports, physical stacking for more ports, and they have built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimize recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional external redundant power supply on all models to ensure maximum uptime.

Comprehensive security.

Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.

IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.

Easy Access Control policies.

They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.

Support for the Microsoft® NAP policy enforcement allows you to protect network assets from compromised computers by enforcing compliance with network health policies.

Versatile traffic management.

A rich set of multi-layer QoS/CoS features ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority, and 10-Gigabit ports deliver the speed you need. Traffic Shaping features guarantee bandwidth for these services even when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications.

Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth, and to provide better security to the backbone network. The ISM VLAN profiles allow you to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily. Selective Q-in-Q enables you to be selective over VLAN traffic.

PoE+ with budgets up to 740W2

The 30PS and 54PS models have 370W PoE power budgets. Or utilise a total of 740W when adding a redundant power supply.

Downloads Datasheets M2M Solution Guide

Tech Specifications

General

Type

Managed

Layer

Layer 2+
Layer 3

PoE power budget

See datasheet
See datasheet

802.3az Energy-Efficient Ethernet support

Virtual stacking (up to 32 devices)

MAC address

16K

Spanning Tree Protocol

802.1D STP
802.1s MSTP
802.1w RSTP

Ethernet ring protection switching (ERPS)

Link aggregation

802.3ad

VLAN group (max static)

4K

VLAN type

GVRP
MAC-based
Port-based
Protocol-based

Advanced VLAN

Asymmetric VLAN
ISM VLAN
Super VLAN
Voice VLAN

IP interfaces

16

Static route for IPv4/IPv6

IPv4 - 1K
IPv6 - 512

RIP v1/v2

RIPng

Number of QoS queues per port

8

CoS based on contents

Bandwidth control

8 Kbps minimum granularity

Three colour marker

8 Kbps minimum granularity

ACL type

Egress
Ingress
VLAN-based

ACL based on packet contents

Time-based ACL

Encryption protocol supported

SSH
SSL (v1/v2/v3)

IP-MAC-port binding (IMPB) / Smart Binding

ARP spoofing

BPDU attack protection

802.1X access control

Microsoft NAP support

RADIUS/TACACS+ authentication

SNMP (v1/v2c/v3)

RMON v1/v2

sFlow

LLDP

ICMPv6

802.3ah

Stacking

Physical
Virtual

Physical

Main type of ports

1000BASE-T Gigabit Ethernet
SFP

Type of uplink ports

10GbE SFP+
10GBASE-T

Number of ports

16 to 30 ports
48 to 54 ports

Switching capacity

168 Gbps
216 Gbps

PoE options

802.3af
802.3at

Number of PoE ports

24
48

Form factor

Rackmountable

Physical stacking

Up to 20 Gbps bidirectional bandwidth
Up to 9 devices
