5G M2M Router
5G M2M Router
5G M2M Router

5G M2M Router

SKU

• 5G SA & NSA speeds of up to 3.4 Gbps1 for Internet access and data transfer
• Wi-Fi speeds of up to 1.8 Gbps1 to connect multiple Wi-Fi devices
• 1 x Gigabit Ethernet WAN/LAN port configurable as wired WAN access
• 3 x Gigabit Ethernet LAN port for reliable wired connectivity
• 2 x SIM slots for cellular WAN failover redundancy
• No set up required, simply plug it in and your network is ready to go
• Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
• -30 to 70°C operating temperature to resist harsh environments
• Optional Wall mount bracket allows for optimal device placement

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

User Benefits

Icon

5G SA & NSA

Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.

Icon

Dual-SIM Failover

Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.

Icon

Ethernet & 5G Redundancy

Seamless failover between Ethernet WAN and 5G for reliable connectivity.

Icon

Industrial-Grade Durability

Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.

Icon

Secure VPN Protection

Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.

Icon

Wi-Fi 6 AX1800

Drive Wi-Fi 6 to cover various portable and IoT device networking services.

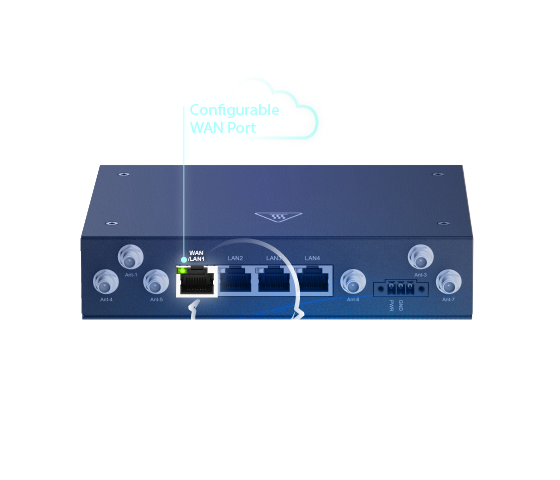

Carrier Diversity and Network Redundancy

Carrier Diversity and Network Redundancy

The DWM-550-G 5G M2M Router ensures continuous service with Dual SIM (Nano-SIM 4FF) support for enhanced carrier diversity and network redundancy. Reliable connectivity even in locations with limited coverage is now possible. Additionally, it includes four LAN ports, one configurable as a WAN, giving you flexible options to seamlessly switch between Ethernet WAN and 5G connections, ensuring you always have the best network access.

Secure Your Network with VPN

Secure Your Network with VPN

The DWM-550-G 5G M2M Router boosts network security with robust VPN support, offering protocols such as IPSec, OpenVPN, PPTP, L2TP, GRE and WireGuard. These features enable encrypted connections, versatile tunneling, and secure remote access to protect sensitive data effectively. Ideal for retail operations, small shops, pop-up booths, and smart parking systems, the DWM-550-G ensures that financial transactions and customer information are securely managed and transmitted.

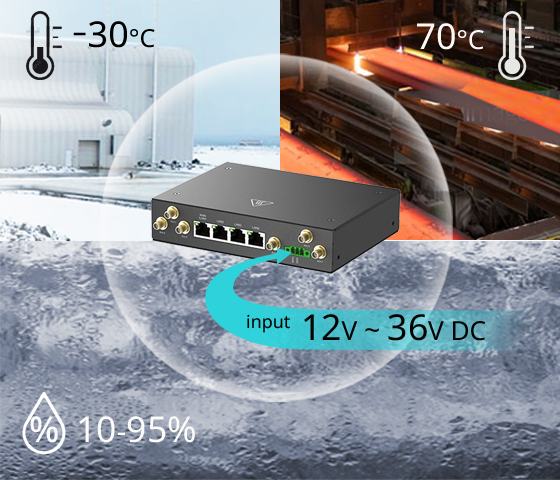

Robust Build Quality

Robust Build Quality

The DWM-550-G is designed to maximize M2M connection reliability and availability, featuring a corrosion-resistant zinc-plated steel casing, wide voltage input range, wide operating temperature range and humidity tolerance, making it suitable for the most demanding M2M applications in virtually any environment.

High-Speed 5G & Wi-Fi 6 Connectivity for Modern IoT Deployments

Explore the capabilities of the DWM-550-G 5G M2M Router, engineered for peak performance with high-speed 5G and Wi-Fi 6 AX1800 technology for machine-to-machine applications. Featuring dual-SIM support, it maintains constant communication by switching to a backup network during primary network failures. This router secures data with advanced VPN features and facilitates centralized management via the D-ECS platform.
Ideal for diverse settings like NVRs, kiosks, industrial PCs, digital signage, and mobile POS systems, the DWM-550-G is perfect for remote locations, pop-up stores, and bus stops, enhancing efficient operation and network performance.

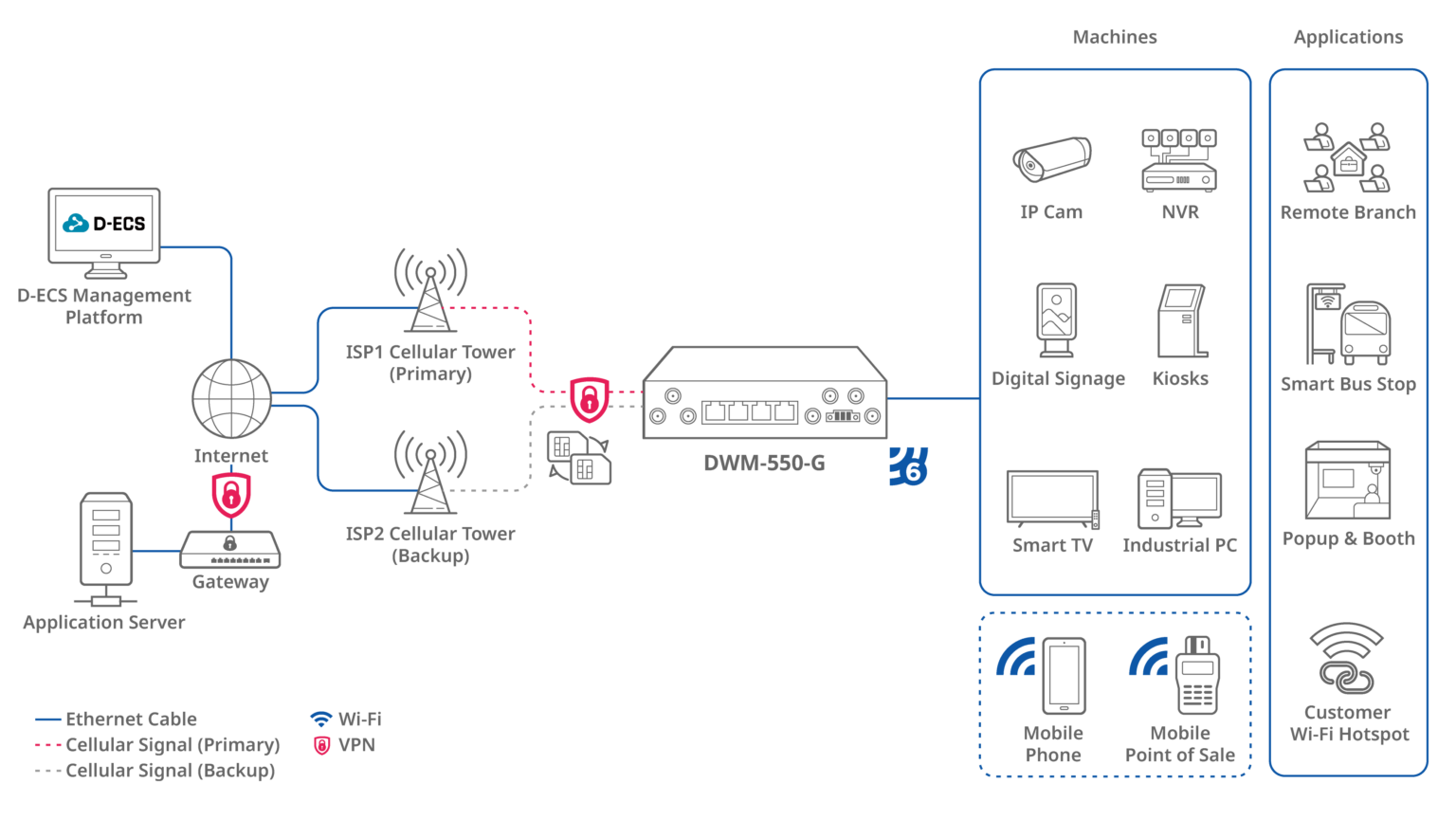

5G PoE Diagram

Versatile Applications

Kiosk

Kiosk

Remote access for kiosks ensures secure and continuous operation while minimizing service interruptions.

EV Charger

EV Charger

Remote management of charging information and usage status to optimize operations.​

Smart Bus Stop

Smart Bus Stop

Remote access for real-time bus info and ad updates, enhancing commuter experience.

Vending Machine

Vending Machine

Remote access to inventory and sales data optimizes machine status monitoring and restocking efficiency.

Downloads Datasheets M2M Solution Guide

Tech Specifications

Wireless
Wireless
Device Interface
  • Cellular Module: 5G/4G 3GPP Rel. 16, Cellular Standards: 5G NR(Sub-6GHz), 4G LTE(DL Cat.19/UL Cat.18), SIM Slot: 2*SIM(Nano SIM), Ethernet: 1*WAN/LAN GE, 3*LAN GE, WiFi: Wi-Fi6 AX1800(2.4G/5GHz), Power Input: DC 12-36V (TB), Antenna Conector: 4*SMA(F)-Cellular, 2*SMA(RP-F)-WiFi
Performance1
  • Maximum Cellular Data Throughput: ( 5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL), 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL), LTE: 1.6 Gbps (DL) / 200 Mbps (UL) )
WAN
  • Multi-WAN: Cellular, Ether-WAN, Failover , Load Balance, Cellular: NAT, Bridge, Ether-WAN: Dynamic IP, Static IP, PPPoE, Network Monitor: ICMP Check/DNS Query
Network
  • LAN & VLAN: DHCP Server/Relay, Port/Tag based VLAN, Port Forward: : NAT Loopback, Special AP&ALG, DMZ, Virtual Server & Computer, VPN Pass-through, Routing: Static, Dynamic RIPv1/v2, OSPF, BGP, DDNS: DynDNS, No-IP, Dynamic DO, QoS: Rule for Service (DSCP, TOS, Well-known Service), IGMP, IPv4/v6
Wi-Fi
  • Standard: IEEE 802.11 ax/ac/n/g/b/a/h, Modes: AP Router, Function: Multi SSID, Auto Channel Selection, Station Isolation, Security: WPA2-PSK (AES), WPA2, WPA-PSK/WPA2-PSK(AES,TKIP/AES), WPA/WPA2, WPA3-SAE(AES), WPA2-PSK/WPA3-SAE(AES), WPA3-Enterprise, 802.1x, Advanced Function: WIDS, Wi-Fi 5G Band Steering, 2.4GHz Data Rate: 574 Mbps, 5GHz Data Rate: 1201 Mbps, External Server, Ext. Server: Email, Syslog, RADIUS Server
Service
  • Cellular Toolkit: Data usage, SMS, SIM PIN, Network Scan, Event Handling: Event Management, Notifying Events
VPN
  • VPN Tunnel: IPSec, OpenVPN, PPTP,L2TP,GRE, WireGuard, IPsec Scenario: Site/Host to Site/host; Dynamic VPN
General
Security
  • Firewall: SPI Firewall with Stealth Mode, IPS, Block WAN Ping, Access Control: Packet Filter, URL Blocking, MAC Control
Administrator
  • Configuration: Web UI, CLI, Command Script, Management: SNMPv1/2/3, D-Link D-ECS2, RESTful API, System: FW Upgrade, Backup & Restore Config, Reboot & Reset, System Log, NTP Service, FTP: FTP, SFTP, Diagnostic: Diagnostic Tools, Ethernet Port Setup
Status
  • Network Status: Connection information, Cellular Signal Quality, Cellular Mobile: WAN & LAN Interface Network Status, Cellular Modem Status, Security: VPN Status, Firewall Status, Statistics&Reports: Connection Session, Login Statistics, Cellular Usage, Cellular Signal
Environment
  • OP/Store Temp.: (Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F), Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F)), Humidity: (Operating Humidity 10% to 95% non-condensing, Storage Humidity 0 to 95% non-condensing), Dimensions: 160 x 125 x 35mm
