5G Experience The High Speed Connection

Built-in Internal 5G & Wi-Fi Antennas

The 5G antenna, pointed at the 5G cell site would provide the ultimate solution for getting your 5G router to receive the best 5G network signal for the optimum 5G download and upload speeds and reliability.

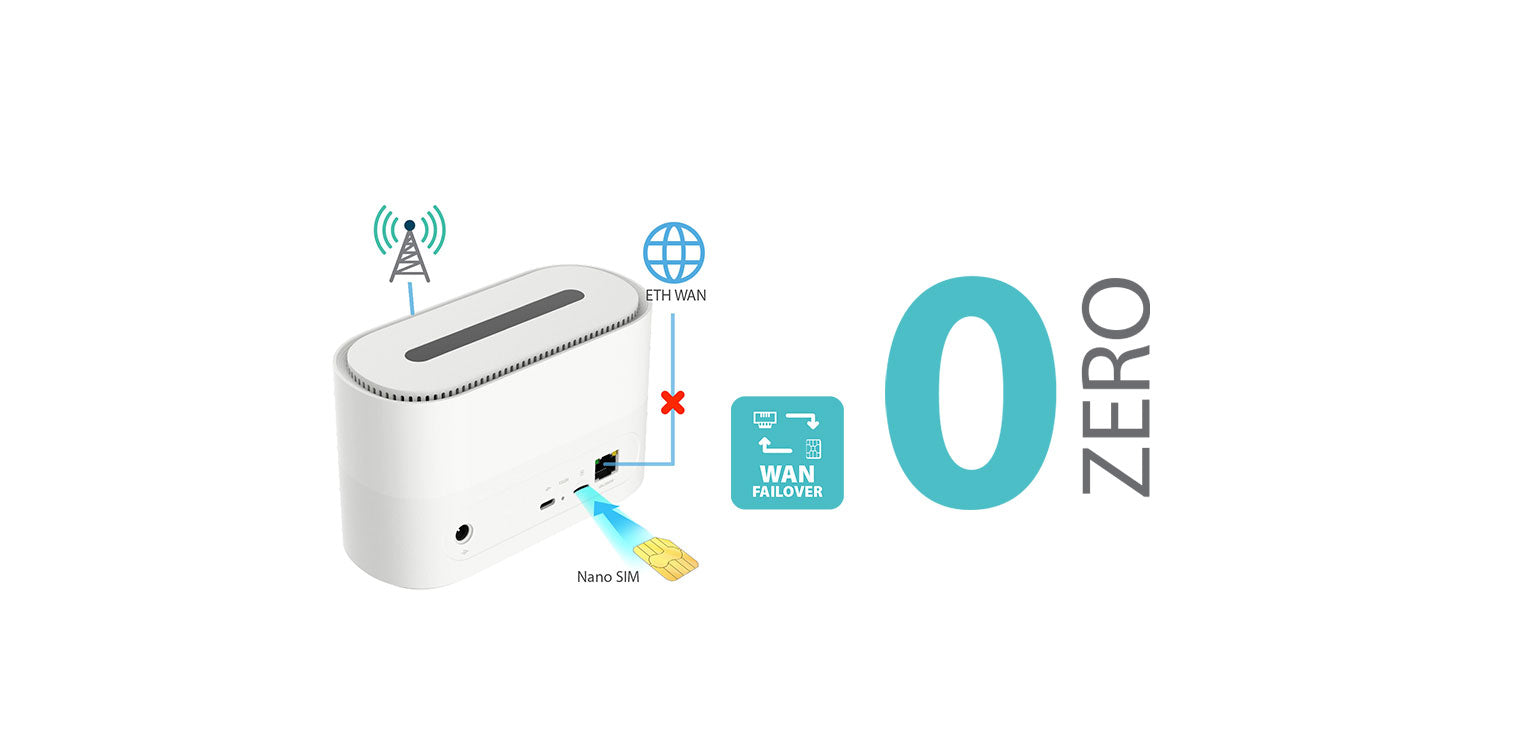

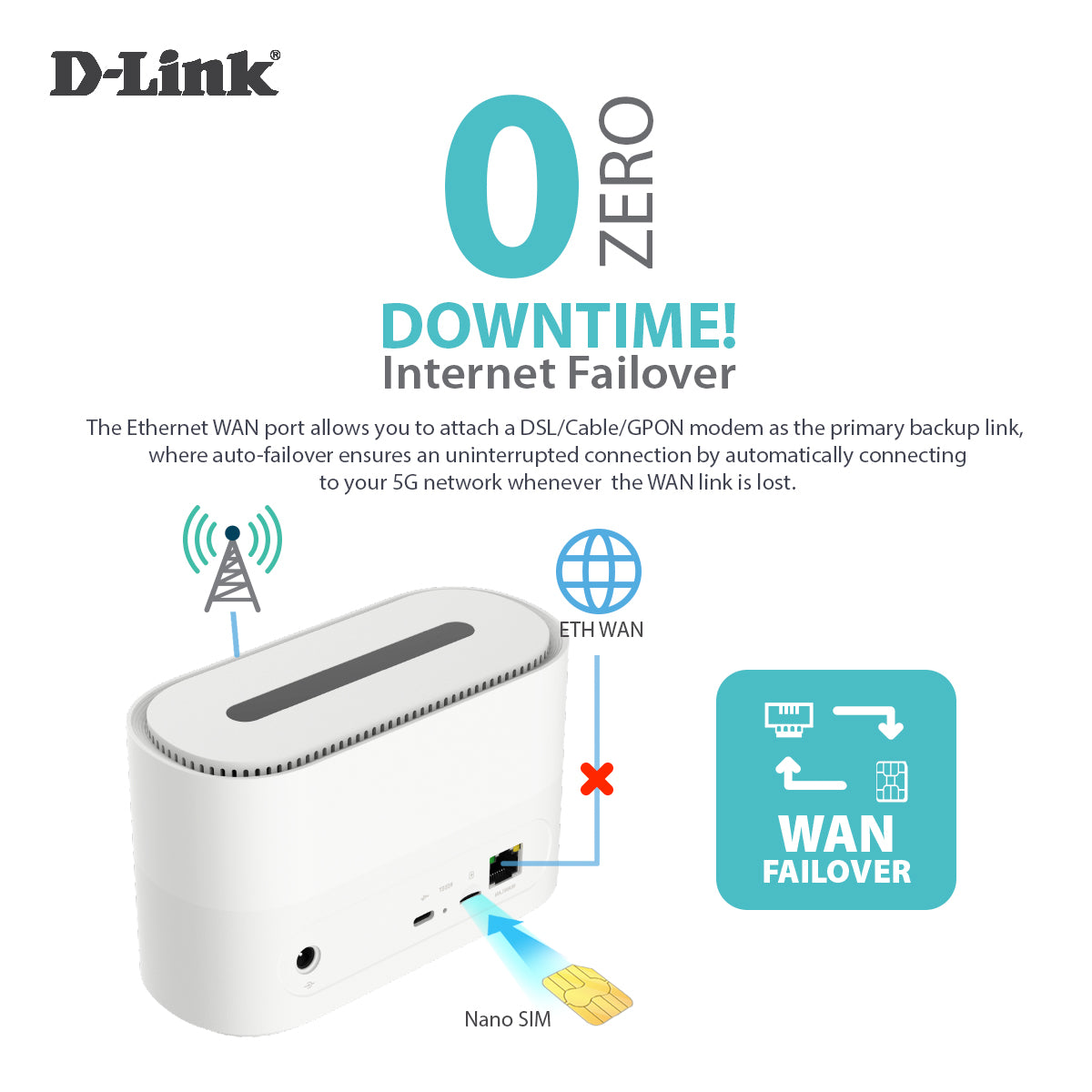

DOWNTIME! Internet Failover

The Ethernet WAN port allows you to attach a​ DSL/Cable/GPON modem as the primary backup link, ​ where auto-failover ensures an uninterrupted connection​ by automatically connecting to your 5G network whenever​ the WAN link is lost.

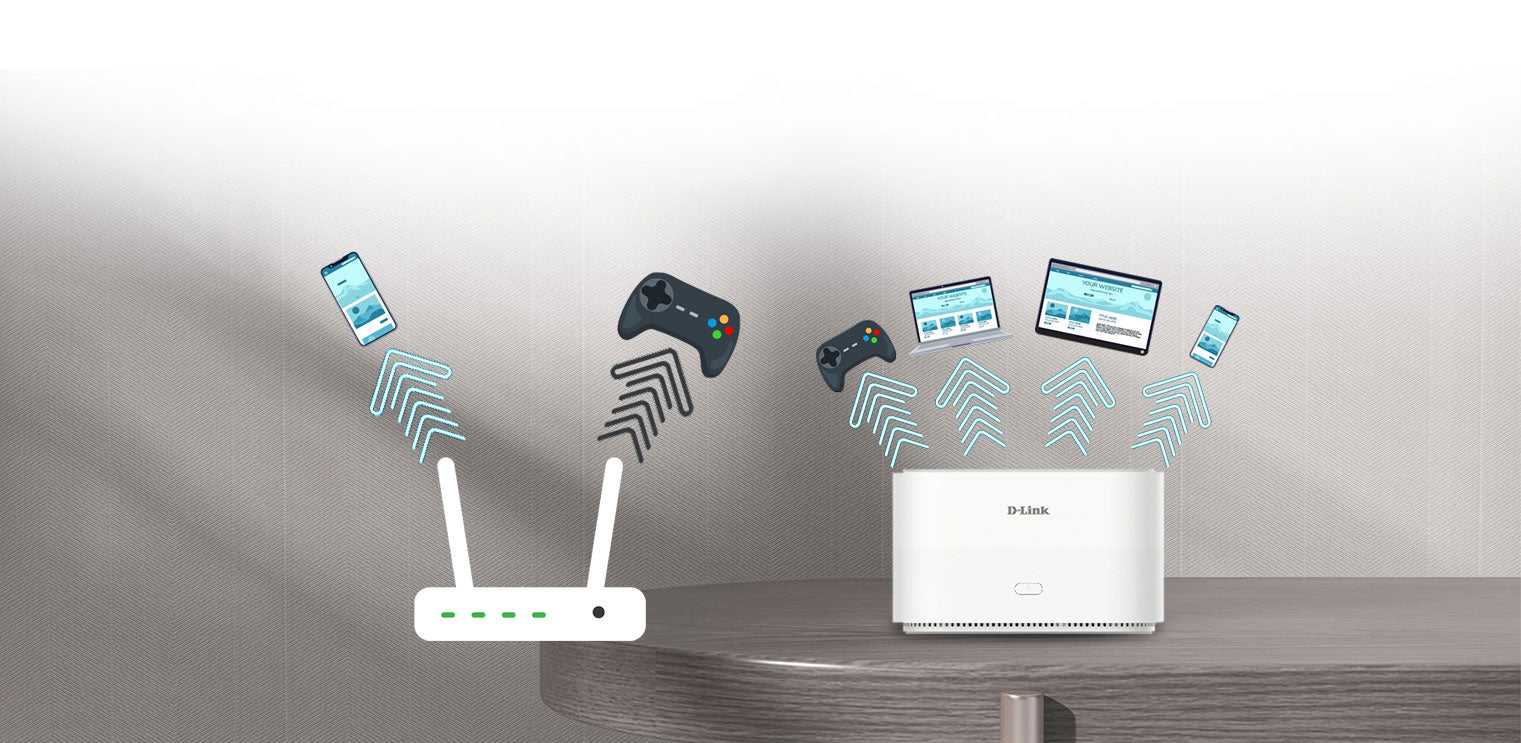

Lag-Free Concurrent over 5G Internet

Your World, Connected. Instantly .

D-Link Mobile Wi-Fi Routers provide effortless, plug-and-play Wi-Fi. Enjoy robust, reliable internet access for your fast-paced lifestyle, whether you're using a Nano-SIM for immediate mobile Wi-Fi or a wired Ethernet connection for fixed setups. No complex configuration required.

Tech Specifications

Hardware

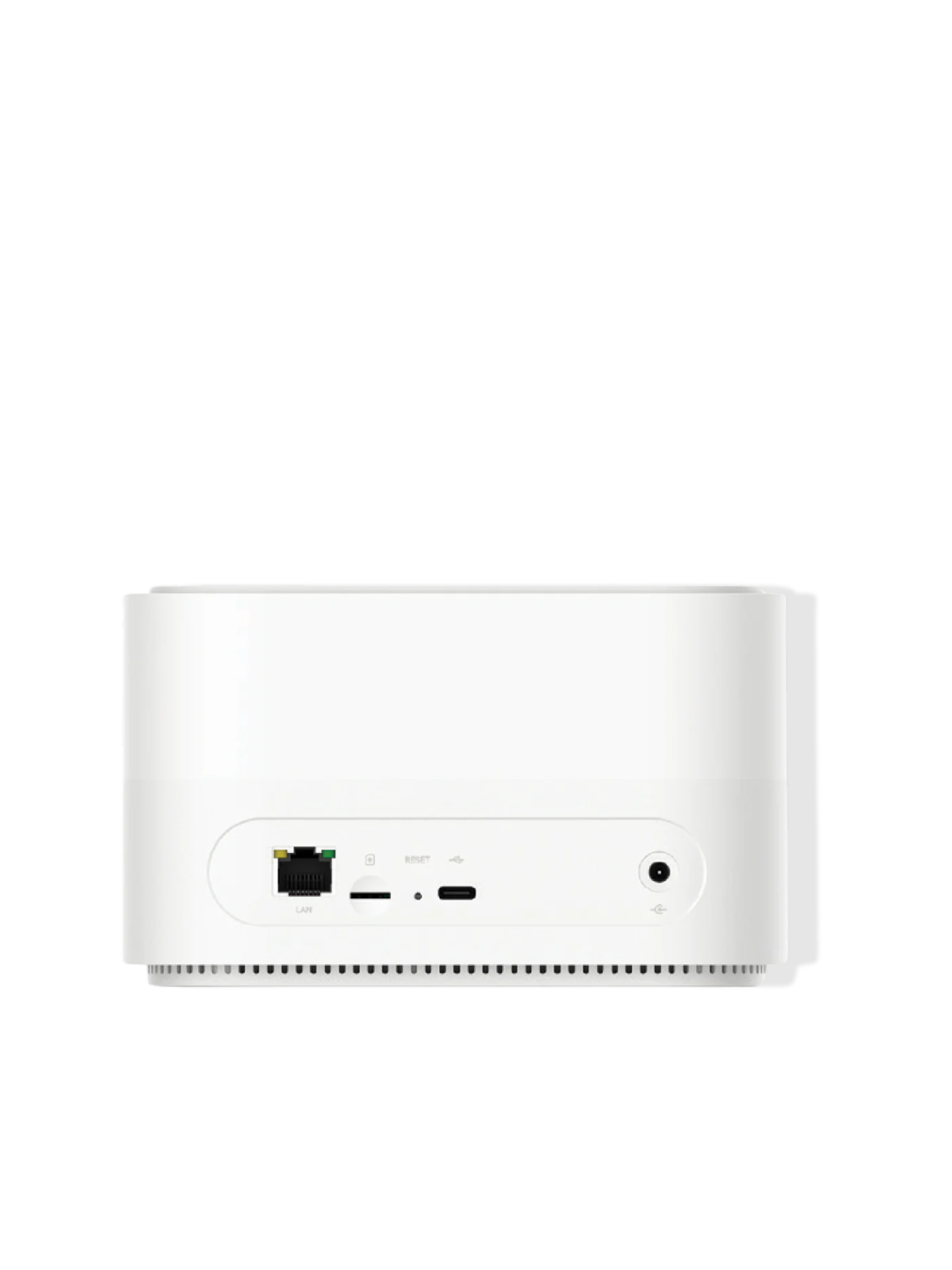

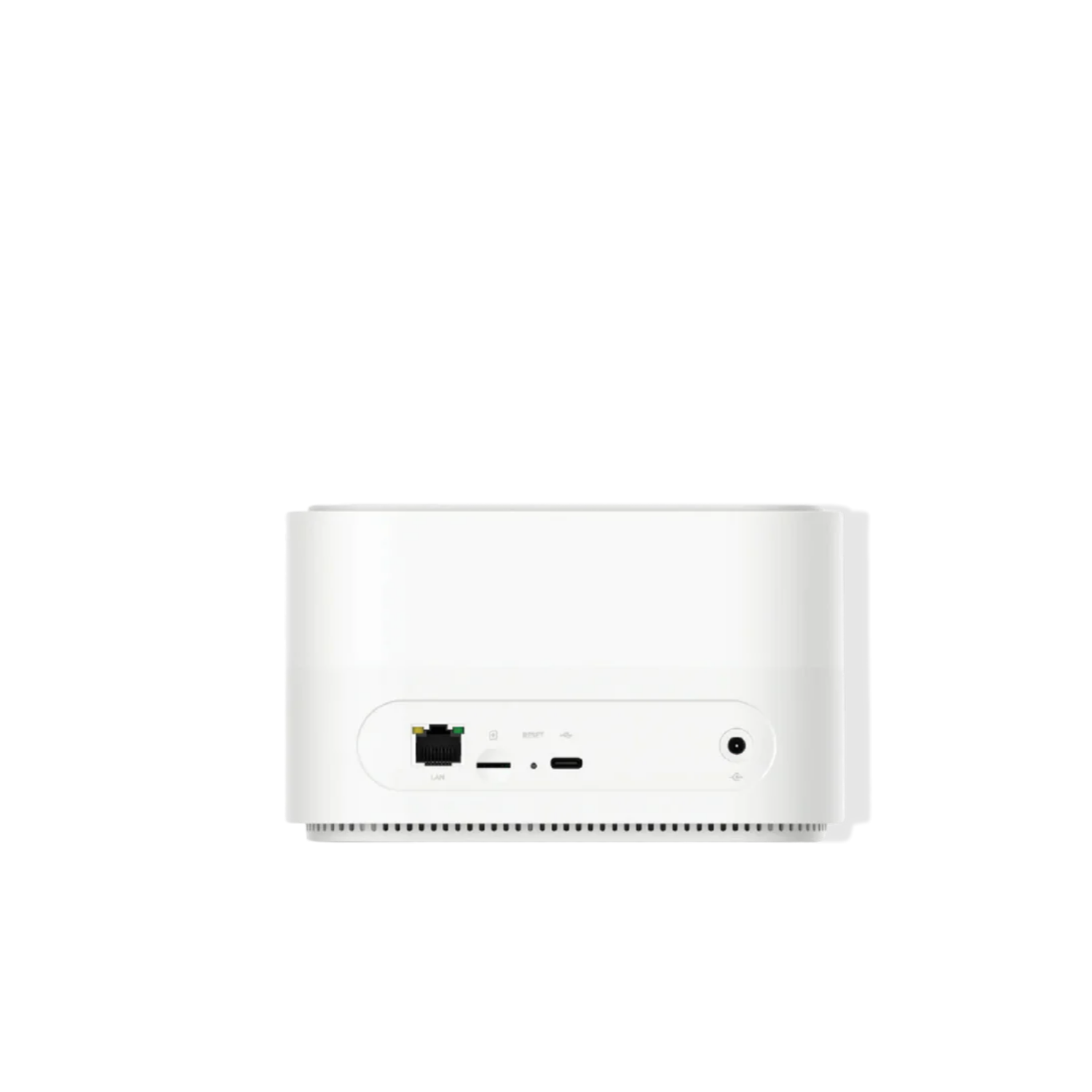

Device Interfaces

•1 x Gigabit Ethernet WAN/LAN Ports, 1 x 4FF SIM Slot, 1 x Power/WPS Button,
1 x Reset Button

Memory

•ROM: 512MB (NAND) / RAM: 512MB (DDR3)

5G Modulation

•Download 2CA / Upload 1CA, 256 QAM

4G Modulation

•Download 3CA / Upload 3CA, 256 QAM

Antenna

•6 x 5G/4G Internal Antenna
•2x 2.4GHz/5GHz Internal Antenna

LED

•Power indicator, 5G network indicator, Wi-Fi indicator, Eth indicator

Hardware version

•A1

Wireless
Wireless
Wireless Standard

•IEEE 802.11 b/g/n/ac/ax

Wi-Fi Data Rate

•2.4 GHz Up to 600Mbps, 5 GHz Up to 1200Mbps

Maximum Wi-Fi client

•Wi-Fi 2.4GHz & 5GHz up to 32 devices

General
5G NR

•FDD: n1, n3, n5, n7, n8, n20, n28 TDD: n38, n40, n41,n77,n78, n79

4G LTE

•FDD: B1, B3, B5, B7, B8, B20,B28 TDD: B34, B38, B39, B40, B41

Data Signal Rate

•5G SA max data rate DL up to 2.0Gbps and UL 1Gbps


•5G NSA-ENDC max data rate DL up to 2.6Gbps and UL 575Mbps


•LTE FDD max rate DL up to 600Mbps and UL 150Mbps

WAN feature

•DHCP, Static IP, PPPoE, NAT, Bridge,

Wi-Fi Security

•Open, WPA2-PSK, WPA-PSK, WPA3

General function

•Device & SIM info, IPv4/IPv6 Dual stack support, Port Mapping, Dynamic DNS,
SMS/PIN/APN Management, FOTA upgrade,TR-069*

VPN

•L2TP, GRE

Firewall

•IP/MAC Address Filtering, Port Forwarding, Wi-Fi Black/White list

Management

•Web UI, SNMP, TR-069*

Power Input

•AC 100V~240V, 50Hz~60Hz 12VDC/1.5A

Power Consumption

•<18W

Operating Temperature

•0 to 45 °C

Storage Temperature

•-20 to 70 °C

Operating Humidity

•10% to 95% non-condensing

Storage Humidity

•5% to 95% non-condensing

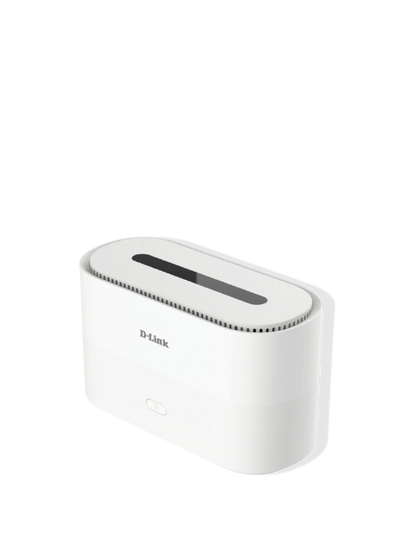

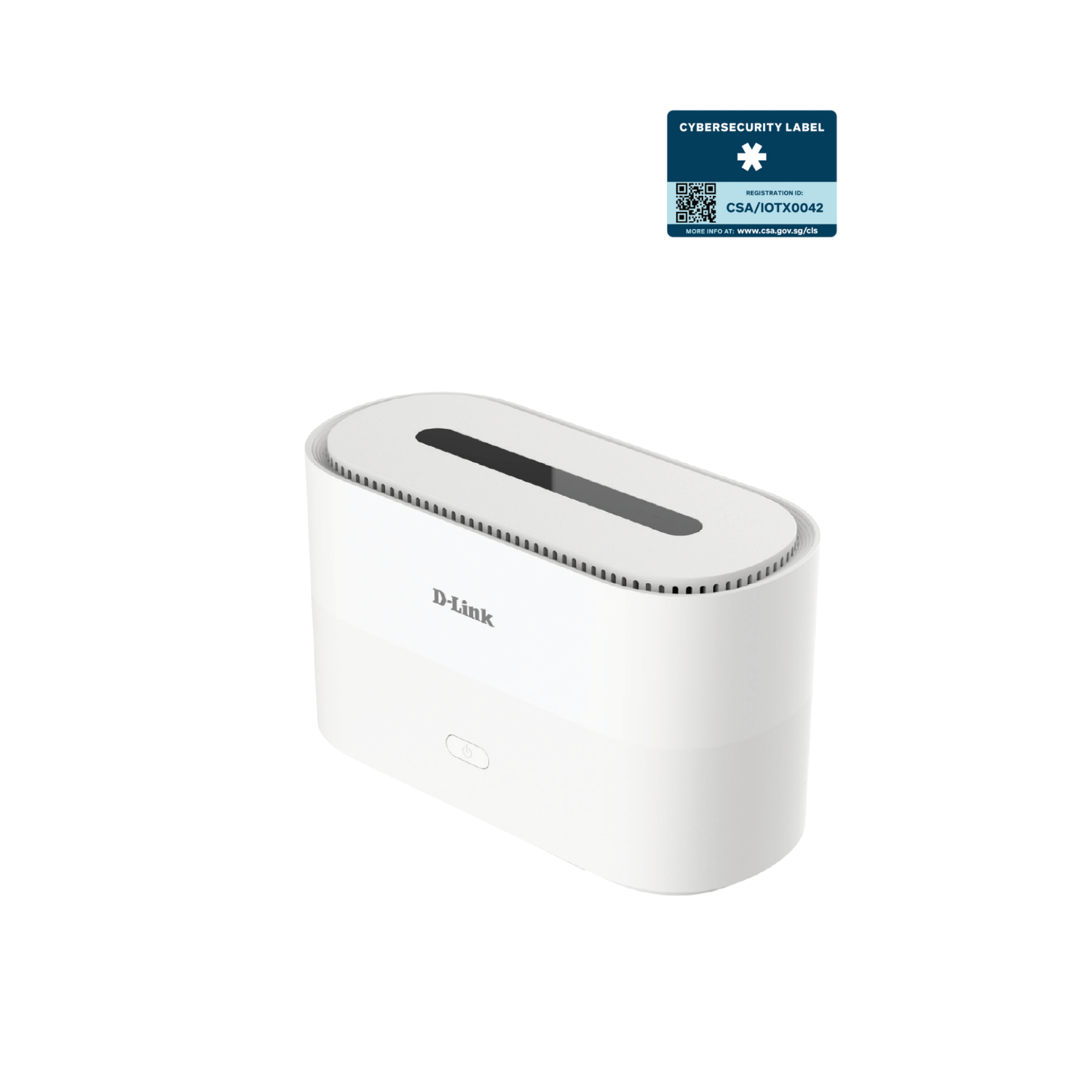

DWR-X2000

•5G AX1800 Wi-Fi6 Router

Certifications

•CE

Physical
Size

•160 x 72 x53mm

Weight

•530g
